Home >   Products >   EDFA Card

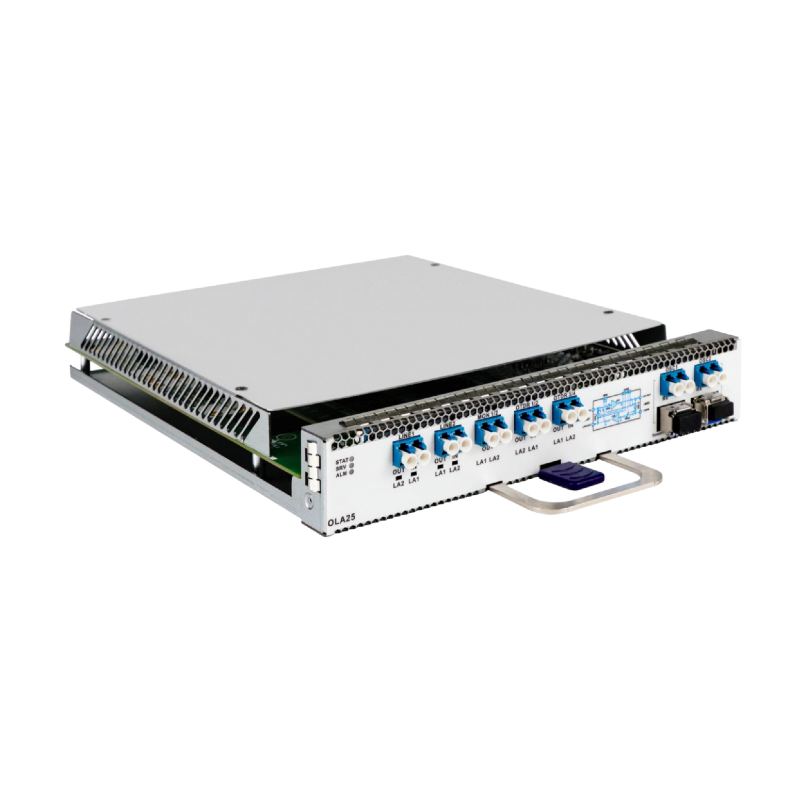

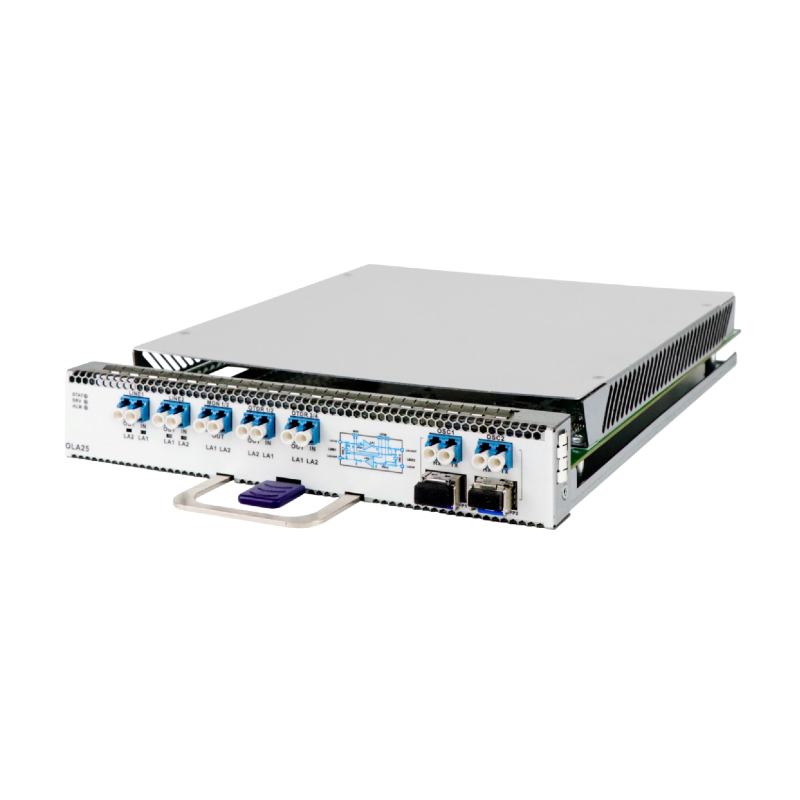

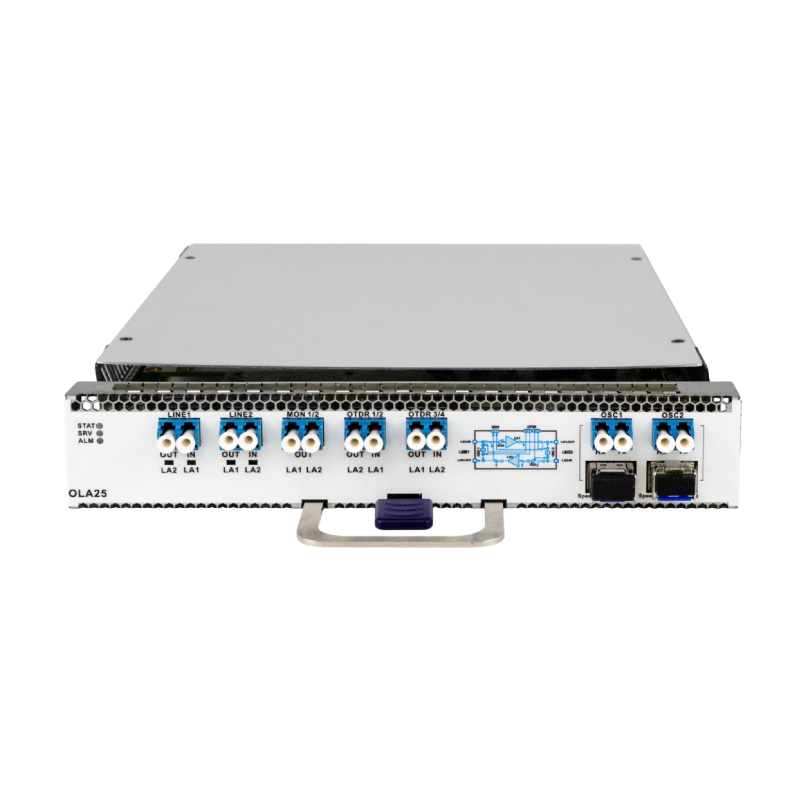

EDFA Card

Part of the DWDM/CWDM/OTN transmission

The EDFA Optical Amplifier Module delivers a versatile, low-noise solution for erbium-doped fiber amplifiers (EDFA). This compact module operates with constant gain (Automatic Gain Control, AGC) and constant output power (Automatic Power Control, APC), featuring a highly integrated design. The large-format module supports dual amplifiers with two independent gain units, the card occupies only 1/2 standard slot capacity.


Get A Quote Now
Typical Applications Technical Specifications Related Euipment Related Download

Technical specifications


Performance ParameterLeast ValueRepresentative value Crest valueUnit
Operating Wavelength1528
1565

nm

Output Light Power

20

dBm

Gain8
33dB
Interiorinput PowerBA-10
Maximum Output-gaindBm
PA/LA(Maximum input-29)
Maximum Output-gain
Noise Factor
5.0
dB
Gain Flatness
1.0
dB
Input Threshold-34
AdjustabledBm
Polarization-related Loss

0.3

dB

Polarization-dependent Gain

0.4dB
Polarization Mode Dispersion

0.5ps
Pump Leakage

-29dBm
Return Loss45

dB
Size216 (W) * 262 (D) * 40 mm (H)mm
EnvironmentWorking Temperature-10℃ ~ 60℃℃

Storage Temperature-40℃ ~ 80℃℃

Relative Humidity5% ~ 95% no condensation
Power Dissipation≤30W
