Home >   Products >   DCI3100

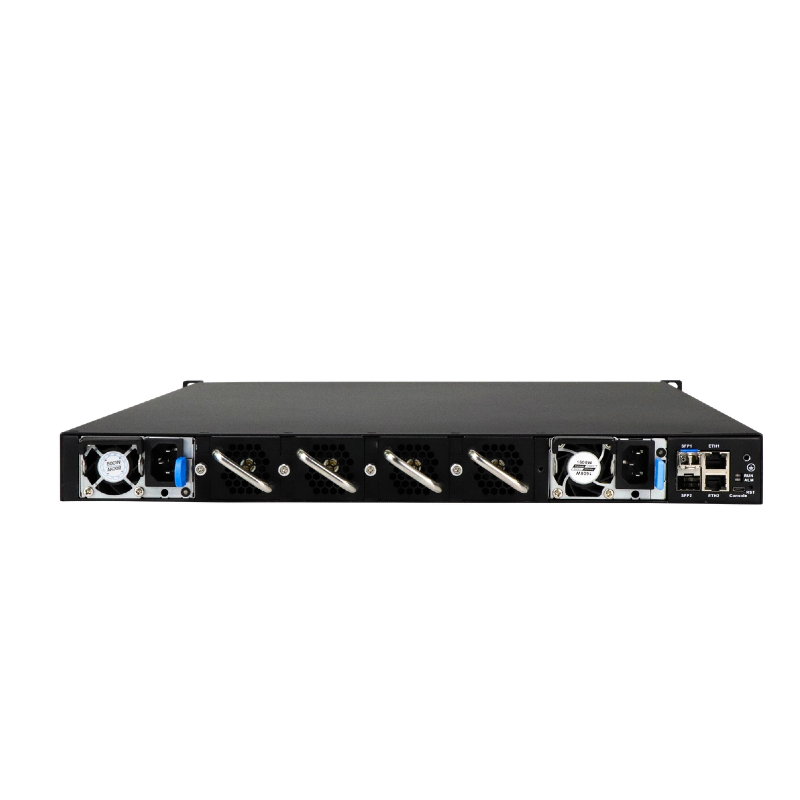

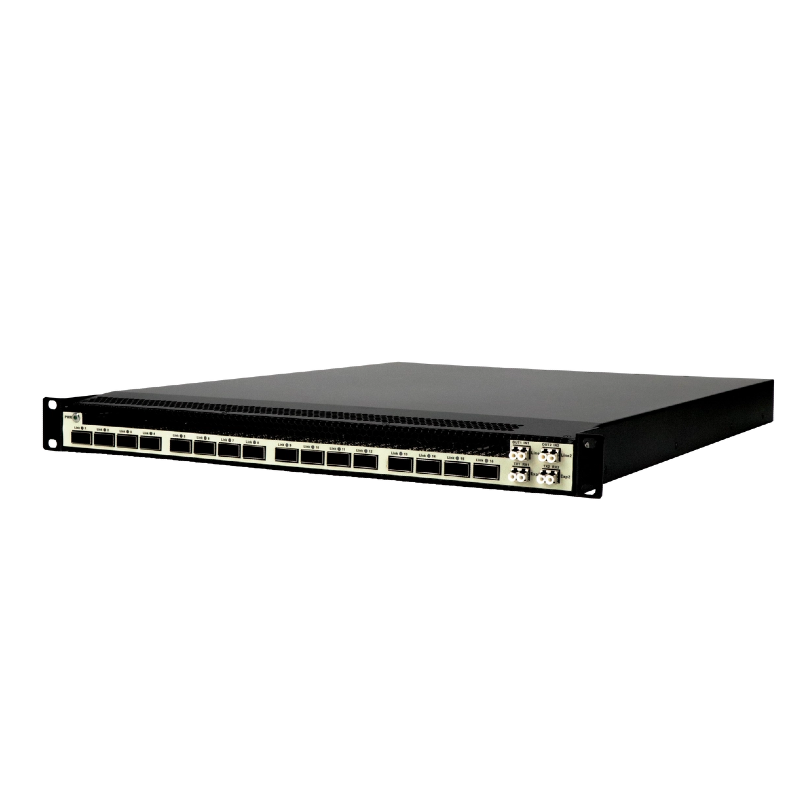

DCI3100

Part of the DCI-BOX transmission

The DCI3100 integrated wavelength division equipment is developed by ISEELINK for data center interconnection (DCI) scenarios. It has the outstanding characteristics of large capacity, small size, low energy consumption and high cost performance.Housed in standard 1U chassis, this device supports max 1.6T (16*100G) capacity and can be smoothly expanded to 3.2T capacity through device stacking.Adopting high-density optoelectronic integration technology, OSP3100 avoids complex fiber jumper connections with its unique switch-like design and brings ultimate user experience by its extremely simple installation.

It is a perfect solution for ultra-large transmission capacity in metropolitan DCI networks.

Get A Quote Now
Typical Applications Product Features Technical Specifications Related Euipment Related Download

Product Features

• Compact & High-Capacity Design

1RU box-type design with stackable form factor. Single unit supports up to 1.6T transmission capacity (16 × 100G), and stacking two units enables 3.2T per fiber, maximizing space efficiency.

• Simple & Flexible Deployment

No complex optical layer configuration, no change to original network topology. Supports mixed transmission of multiple services (100GE and others), with flexible customization of service interfaces and quantities.

· Reliable & Easy Maintenance

Supports line side 1+1 protection with automatic route selection, in-band monitoring channel for SNMP management, and one-box site delivery with plug-and-play operation.

• Data Center Optimized

Front-to-rear airflow design, AC power supply with 1+1 hot-swappable backup, 19-inch server cabinet compatible, and dual server power supply in Load Share mode for high reliability.

Technical specifications

FunctionDescriptionRemark
Size of equipment1RU: 44 (H) × 442 (W) × 600 (D) mm


Maximum transmission capacity a single machine1RU 1.6Tbps（16*100G）
Maximum transmission capacity of single fiber2 * 1RU equipment stack capacity expansion to 3.2 Tbps
Maximum transfer rate of single port100Gbit/s
Service port type100G QSFP 28 optical port

Customized according to customer needs

Maximum number of ports for a single machine16 QSFP 28 optical ports
Types of services supported100GE Determined by service port type
Network level protectionSupport line side 1 + 1 protection
Device-level protection

  • Power supply 1 + 1 hot backup

  • 4 sets of fan hot backup


Installation method19 "Server Cabinet
Power supply modeAC: 90 ~ 260V 2 hot-swappable server power modules
Management mode

  • Visual Web interface

  • DCI3100 Network Management System


Heat dissipationForward air, rear air outlet, 4 hot-swappable fan units
Power consumption< 600W (fully equipped)
Operating temperature range-10 ℃ ~ 60 ℃ (typical)
Operating humidity range5-95% non-condensing
Storage temperature range-40℃～85℃
MTBF> 100,000 hours
