Home >   Products >   40G&100G TMUX: 4*SFP28↔QSFP28
100G Muxponder.png
100G Muxponder.png

40G&100G TMUX: 4*SFP28↔QSFP28

Part of the DWDM/CWDM/OTN transmission

The 40G&100G incoherent muxponder service card supports 4x10G↔40G or 4x25G↔100G electrical layer multiplexing/demultiplexing, and transforms the multiplexed/demultiplexed optical signals into WDM standard wavelength optical signals. It can facilitate the wavelength division multiplexing of the optical signals of different wavelengths by mux unit, and simultaneously implement the inverse process of the above process. It's suitable for 10G~25G forward multiplexing or 40G/100G inverse multiplexing wavelength division short-distance transmission solution

Get A Quote Now
Typical Applications Technical Specifications Related Euipment Related Download


Technical specifications

FunctionDescription

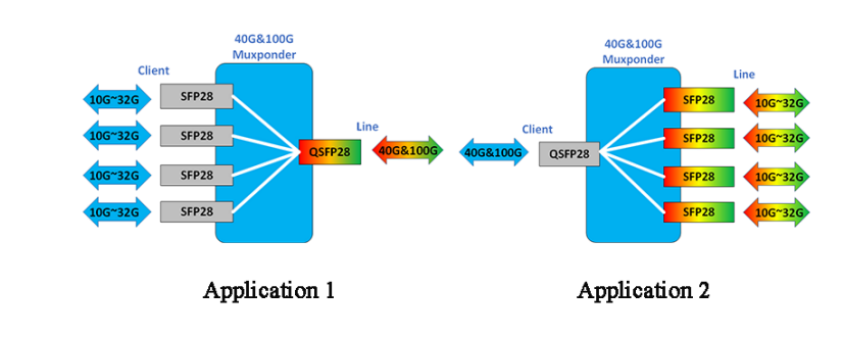

Application4x10G↔40G & 4x25G↔100G40G↔ 4x10G & 100G↔4x25G
interface

• Client-side interface: 4 SFP28l hot-plugging, compatible with SFP+

• WDM-side interface: 1 QSFP28 hot-plugging, compatible with QSFP+

• Client-side interface: 1 QSFP28 hot-plugging, compatible with QSFP+

• WDM-side interface: 4 SFP28 hot-plugging, compatible with SFP+

Basic function

Supports 4*10G & 4*25G service optical signals to be multiplexed into one 40&100G rate WDM standard wavelength optical signal

Supports one 40&100G service optical signal demultiplexed into 4*10G & 4*25G rate WDM standard wavelength optical signals
Support service type

• 10GE, 25GE

• 8G/10G/16G FC (compatible 32G )

• STM-64, OTU2, CPRI/eCPRI

• 40GE, 100GE

• OTU3, OTU4

WDM technologySupport DWDM: C band 100GHz 40/48 waves

Support CWDM: 18 waves

Support DWDM: C band 50GHz 80/96 waves
Occupied slot numberSupport OSP3800 series chassis, occupy 1 slot, (0.5RU)
Network management function

• Support real time monitoring of the port working state, including:

transmitting optical power and receiving optical power, temperature, etc.

• Support port loop-back and port shutdown

Power consumption20W (max, including Module)
MTBF＞100000 hours
