1/2 slots,shown in name 1~8 slot

Supports 8 pluggable QSFP28 100G modules

Supports 4 pluggable QSFP112 400G modules

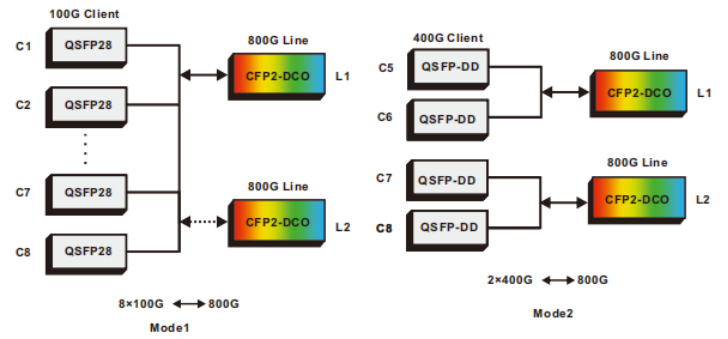

8*100G client to 1*800G line mode:

. 100G<->ODU4<->ODUC8<->OTUC8

Dual 2*400G client to 1*800G line mode:

. 400G<->ODUC4<->ODUC8<->OTUC8

Dual 4*100G client to 1*400G line mode:

. 100G<->ODU4<->ODUC4<->OTUC4

1*800G line to 1*800G line OEO repeater mode:

. OTUC8<->ODUC8<->OTUC8

1*400G line to 1*400G line OEO repeater mode:

. OTUC4<->ODUC4<->OTUC4

400G: 16QAM-PCS/QPSK

800G: 16QAM

Support oFEC

Supports downstream insertion of Local Fault from the client side in case of Ethernet input loss or WDM side failure. Supports transparent transmission of Local Fault and Remote Fault.
