200G Coherent TMUX: 1CFP2+2QSFP28

Part of the DWDM/CWDM/OTN transmission

The 200G coherent TMUX service card supports two 100GE service access, adopts advanced technologies such as QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and non-linearity.

It can realize 200GE business over 1200 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.

Get A Quote Now

Typical Applications Technical Specifications Related Euipment Related Download

Technical specifications

Function	Description
Interface	2 QSFP28 ,hot-plugging WDM-side interface: 1 100G/200G CFP2 ,hot-plugging, coherent QPSK

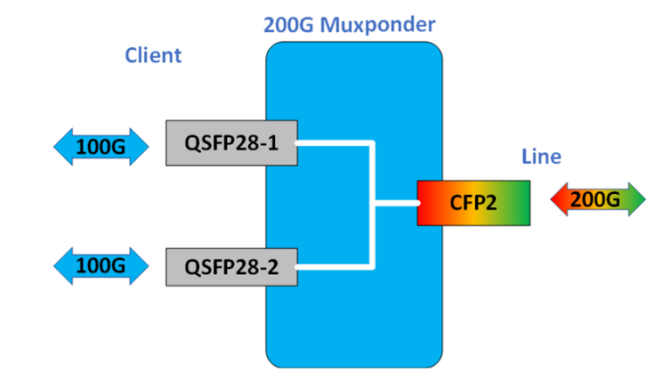

Line mode	Support one 200GE service transmission, transform two 100GE service optical signal into one 200G rate DWDM standard wavelength optical signal
Repeater mode	Support 200G wavelength electrical relay
Support business type	• 100GE
WDM technology	Support DWDM: C-band 50GHz 96 waves tunable
FEC technology	Support oFEC
Number of occupied slots	Support OSP3800 full series chassis, occupying 2 slots, (1RU)
Network management function	• Support real-time monitoring of port working status, including: transmit optical power, receive optical power, temperature, error code statistics etc. • Support port loop-back function and port shutdown function
Max power consumption	50W (including optical module)
MTBF	＞100,000 hours
