Home >   Products >   T4Q1 Card

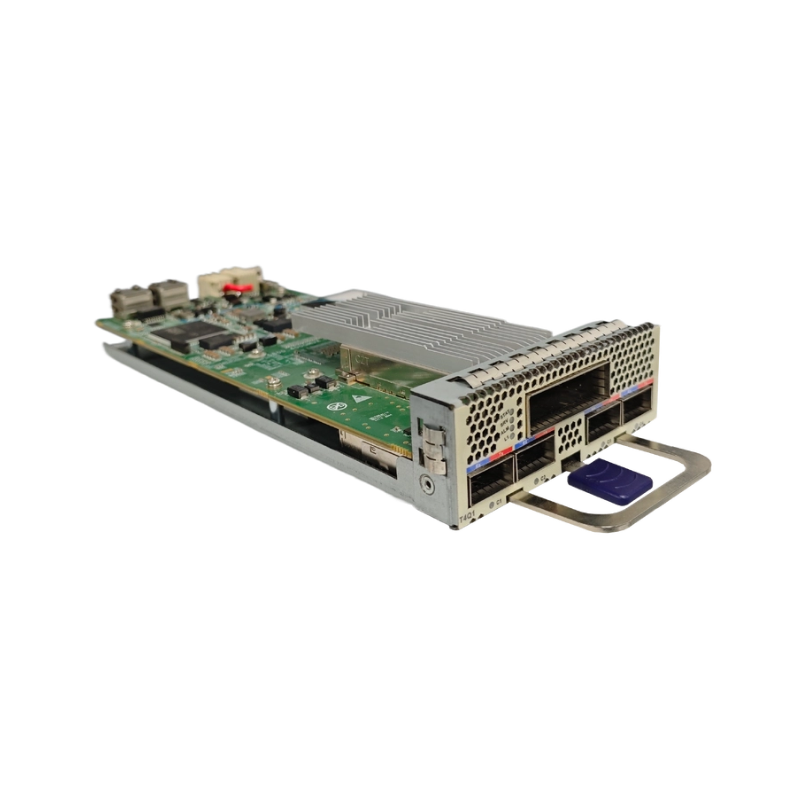

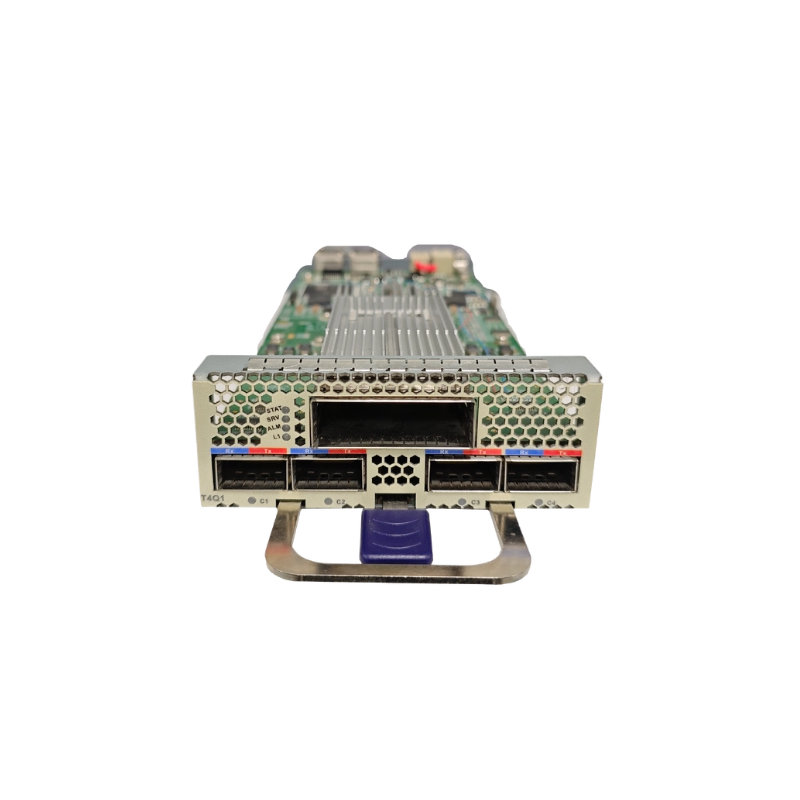

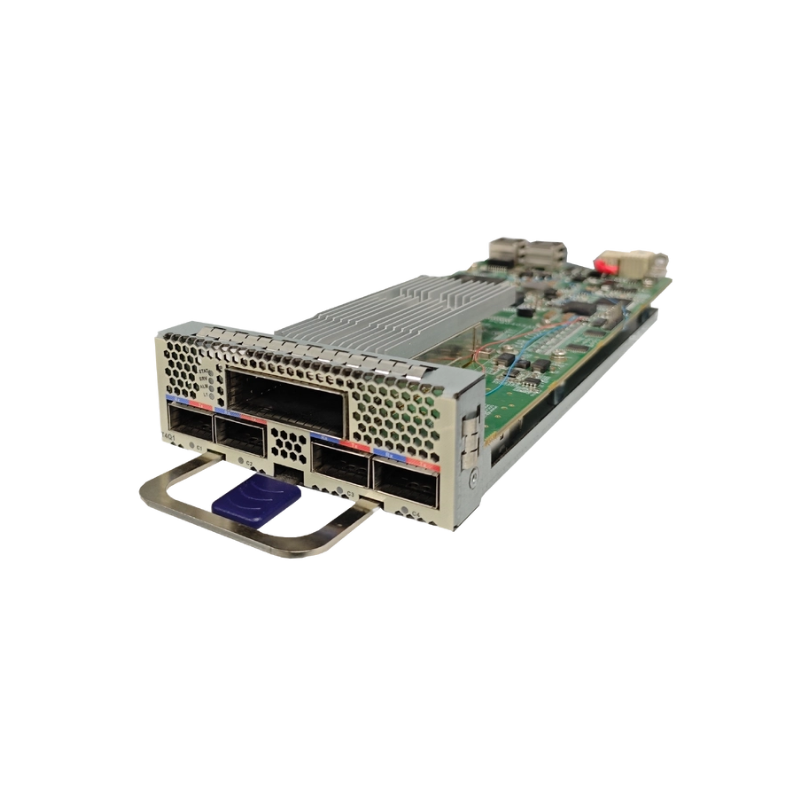

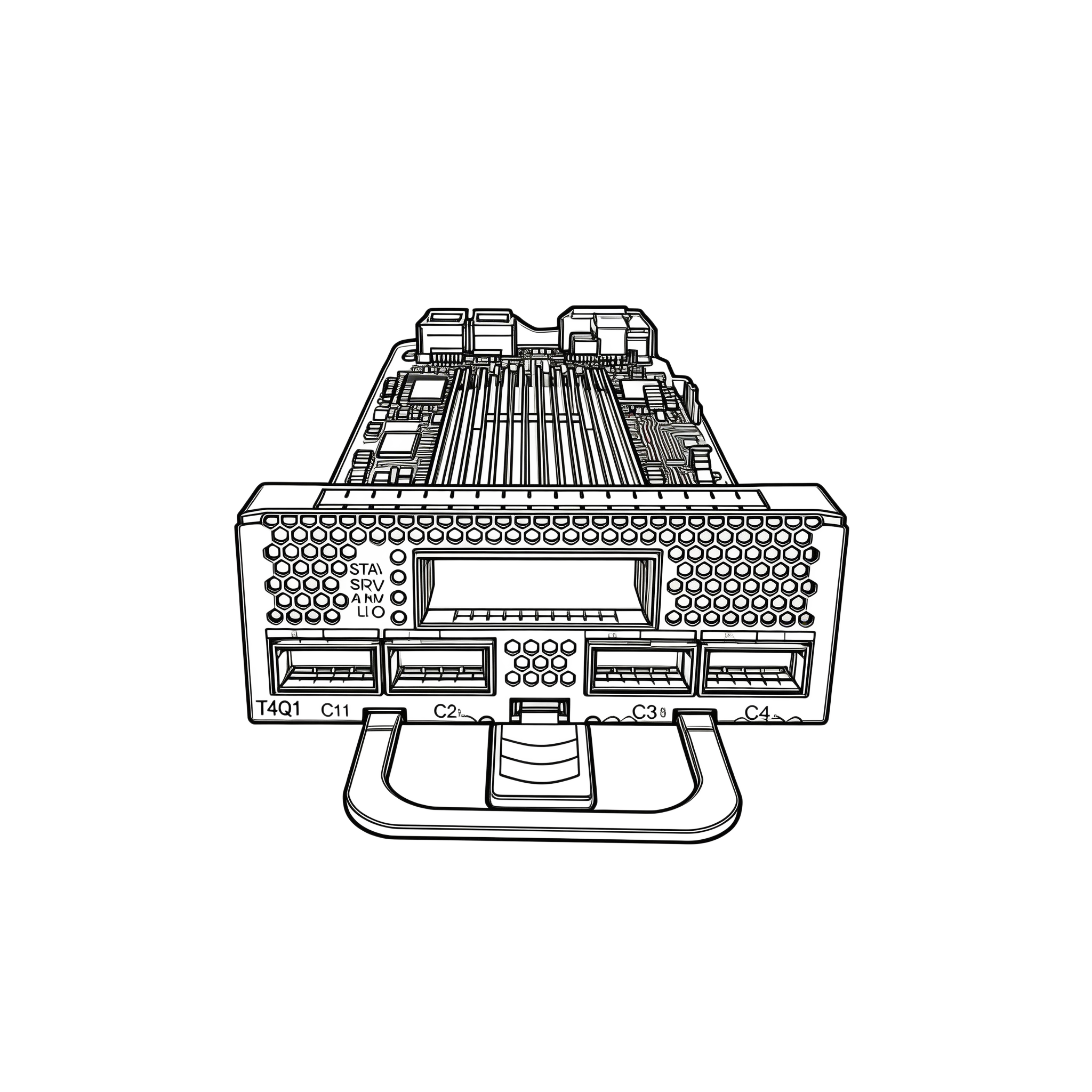

T4Q1 Card

Part of the DWDM/CWDM/OTN transmission

The 400G coherent TMUX service card supports four 100GE service access, adopts advanced technologies such as 16QAM/16QAM-pcs/QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and non-linearity.

It can realize 400GE business over 2000 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.

Get A Quote Now
Typical Applications Technical Specifications Related Euipment Related Download


Technical specifications

FunctionDescription
Occupied Slots

1/4 slots,shown in name 1~8 slot

Client-side Interface

Supports 4 pluggable QSFP28 100G modules

Line-side InterfaceSupports 1 pluggable 400G CFP2 DCO coherent module
Service Type100GE

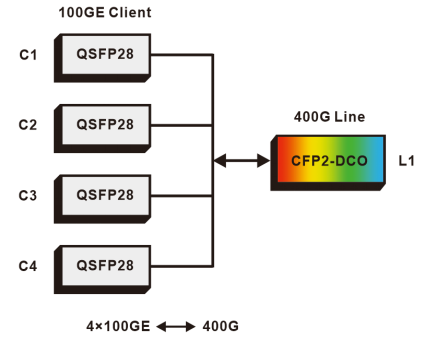

Service Mapping Path

4*100G client to 1*400G line mode:

. 100G<->ODU4<->ODUC4<->OTUC4

Line-side Modulation Format400G: 16QAM/16QAM-PCS/QPSK
WDM TechnologySupport DWDM: C-band 50GHz 96 waves tunable
FEC Technology

Support oFEC

Client-side Ethernet RMON Monitoring FunctionSupport
Client-side Automatic Laser Shutdown (ALS)Support
Local FaultSupports downstream insertion of Local Fault from the client side in case of Ethernet input loss or WDM side failure. Supports transparent transmission of Local Fault and Remote Fault.
LoopSupport
Time Delay MeasurementSupport
Line-side Protection FunctionWhen switching over with the optical protection card, the switchover must be completed within 50ms.

Related Euipment

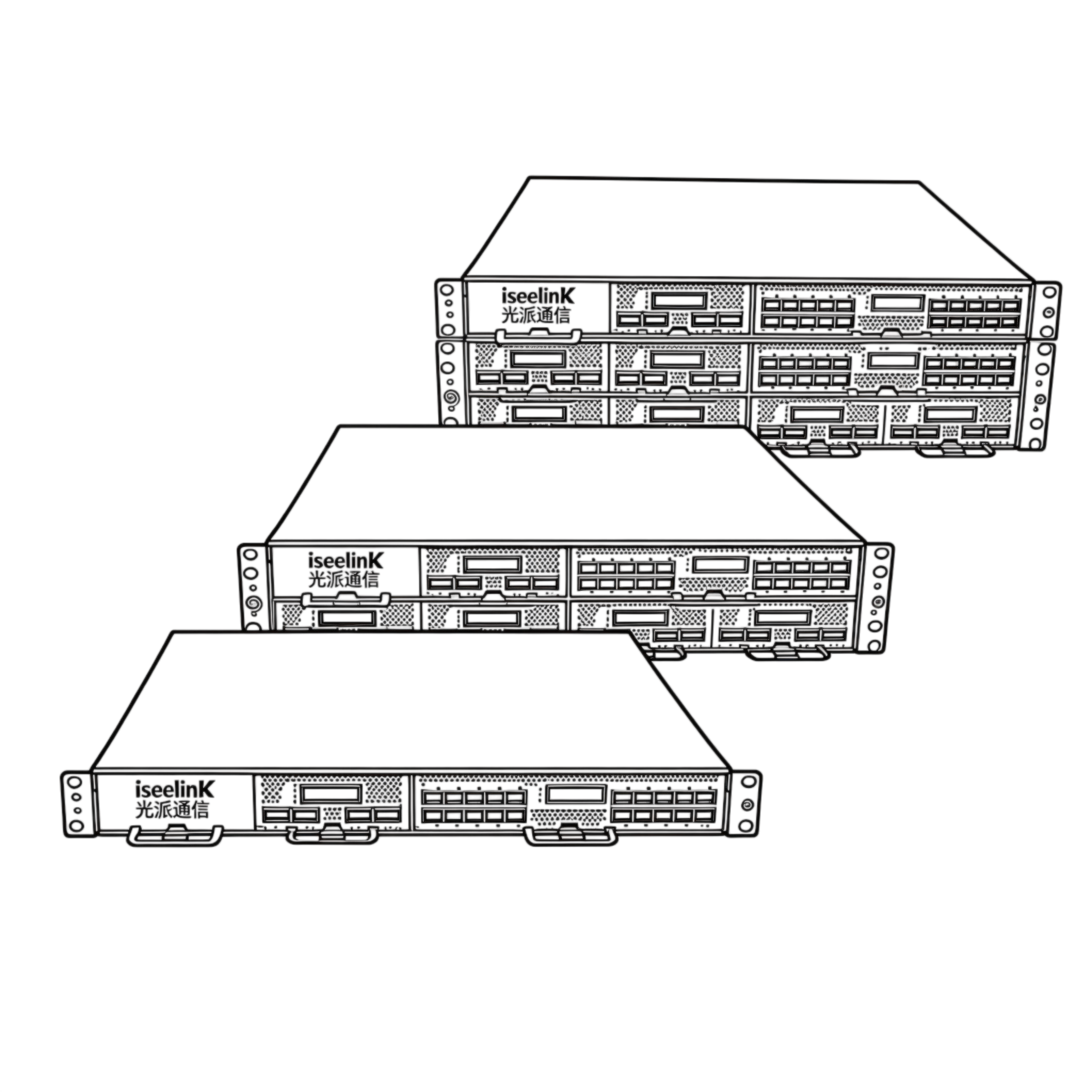

DCI-BOX Platform
DCI-BOX Platform
DCI Integrated WDM System
DCI Integrated WDM System

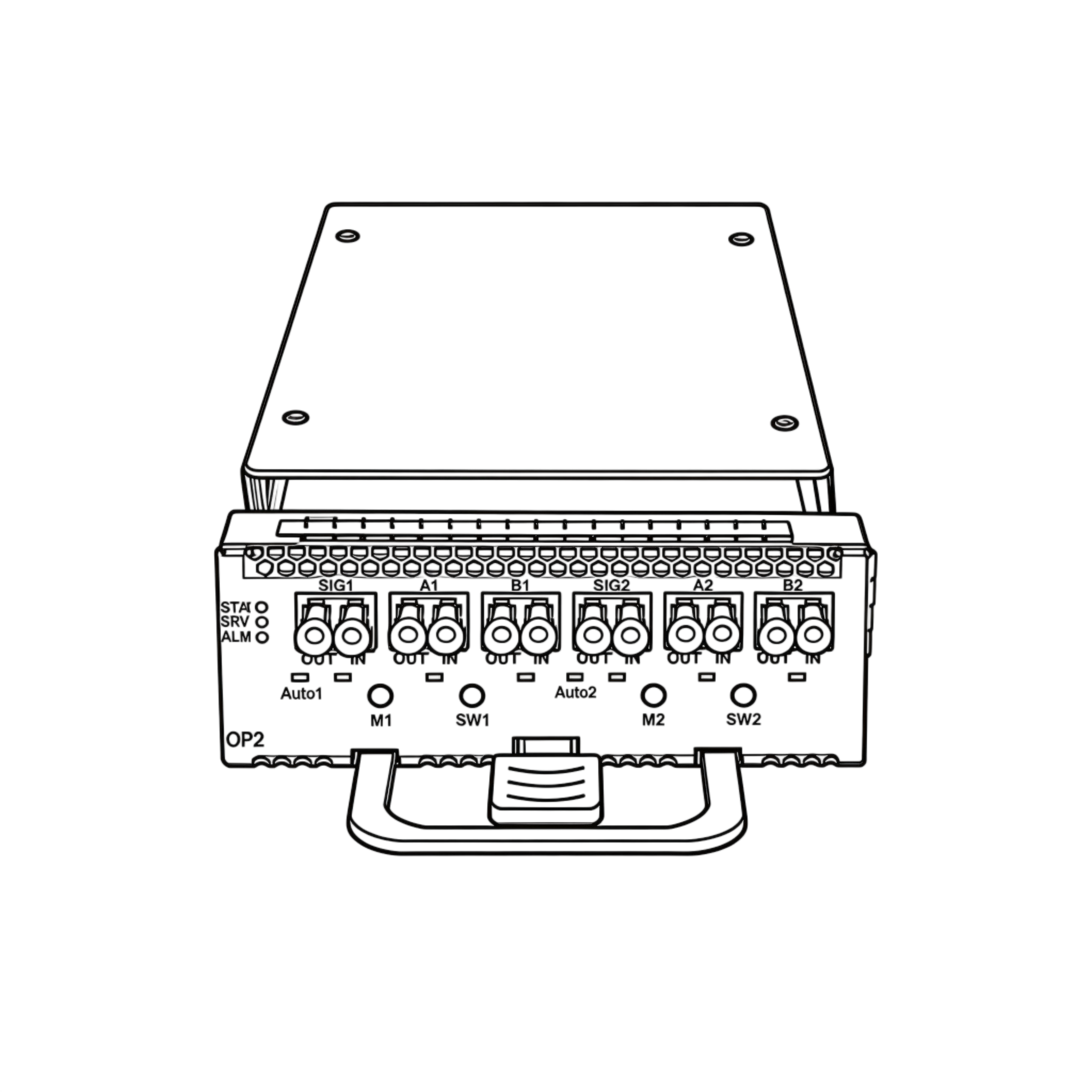

Optical Layer Cards
Optical Layer Cards
Electrical Layer Cards
Electrical Layer Cards
Chassis Cards
Chassis Cards

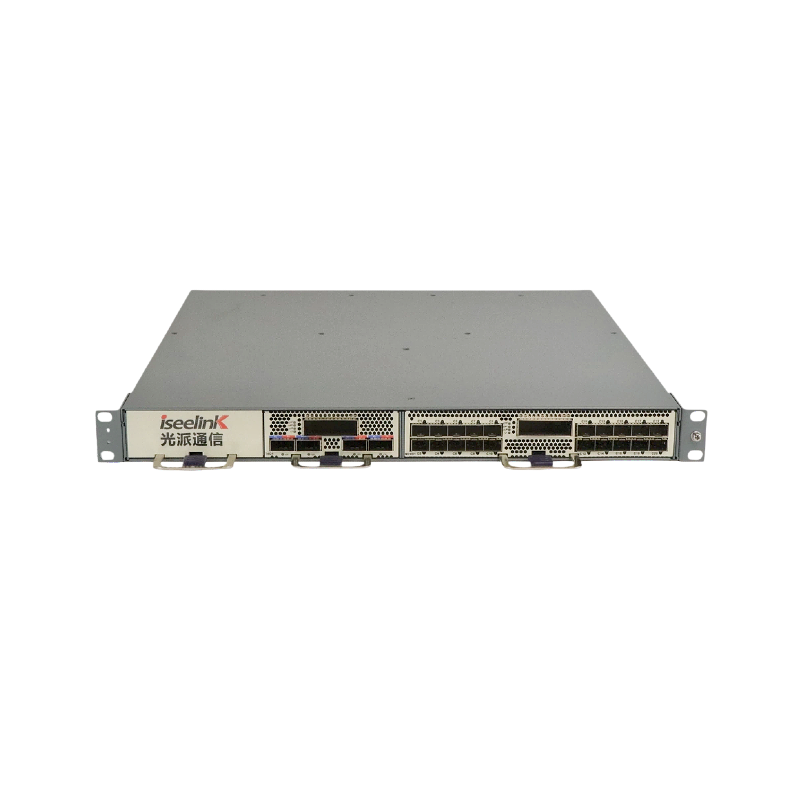

DCI5800-1A

DCI5800-1A

DCI5800 is an industry-leading innovative DCI OTN transmission platform launched by ISEELINK. DCI5800 has the characteristics of small size, large capacity service access, long distance transmission, Web GUI simple and convenient operation and management, reliable operation and energy saving and emission reduction, which effectively meets the needs of long-distance and large bandwidth user data center interconnection transmission. The DCI5800 features a modular design that enables both optical-electrical decoupling for cost reduction and integrated management within the same chassis. With SDN capabilities, it creates an intelligent and open network architecture. The system supports the YANG model interface based on the NetConf/YANG protocol, while also offering multiple management methods including Web GUI, CLI, NetConf,and SNMP for streamlined operations.

Explore Further

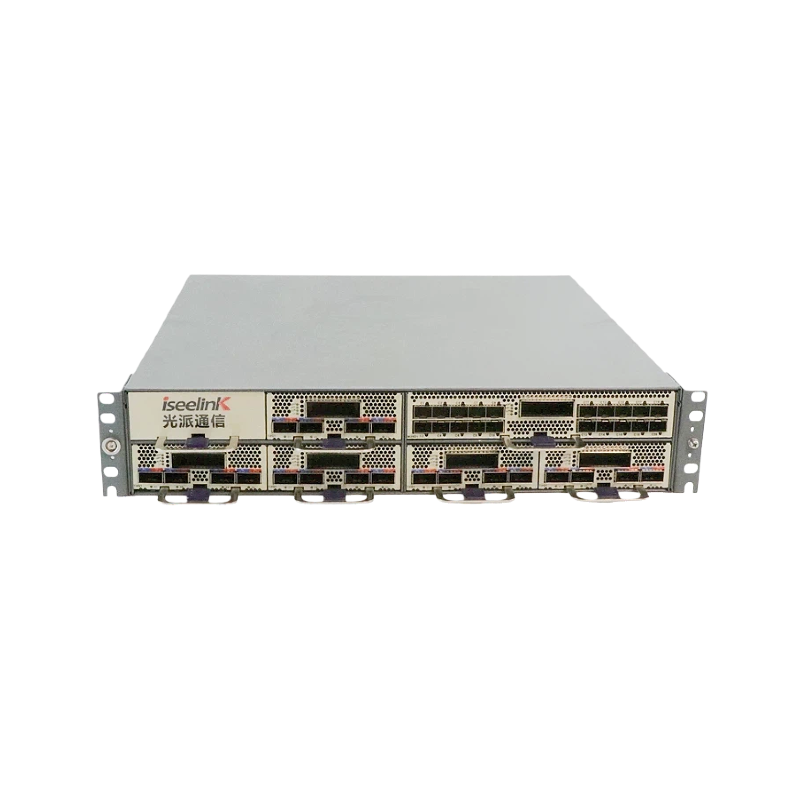

DCI5800-2A

DCI5800-2A

DCI5800 is an industry-leading innovative DCI OTN transmission platform launched by ISEELINK. DCI5800 has the characteristics of small size, large capacity service access, long distance transmission, Web GUI simple and convenient operation and management, reliable operation and energy saving and emission reduction, which effectively meets the needs of long-distance and large bandwidth user data center interconnection transmission. The DCI5800 features a modular design that enables both optical-electrical decoupling for cost reduction and integrated management within the same chassis. With SDN capabilities, it creates an intelligent and open network architecture. The system supports the YANG model interface based on the NetConf/YANG protocol, while also offering multiple management methods including Web GUI, CLI, NetConf,and SNMP for streamlined operations.

Explore Further

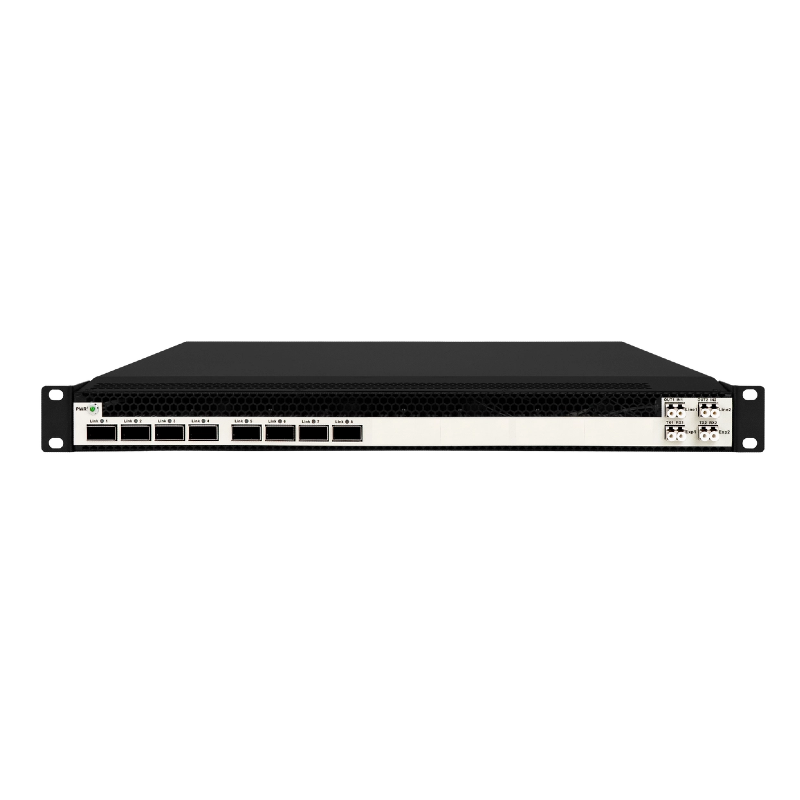

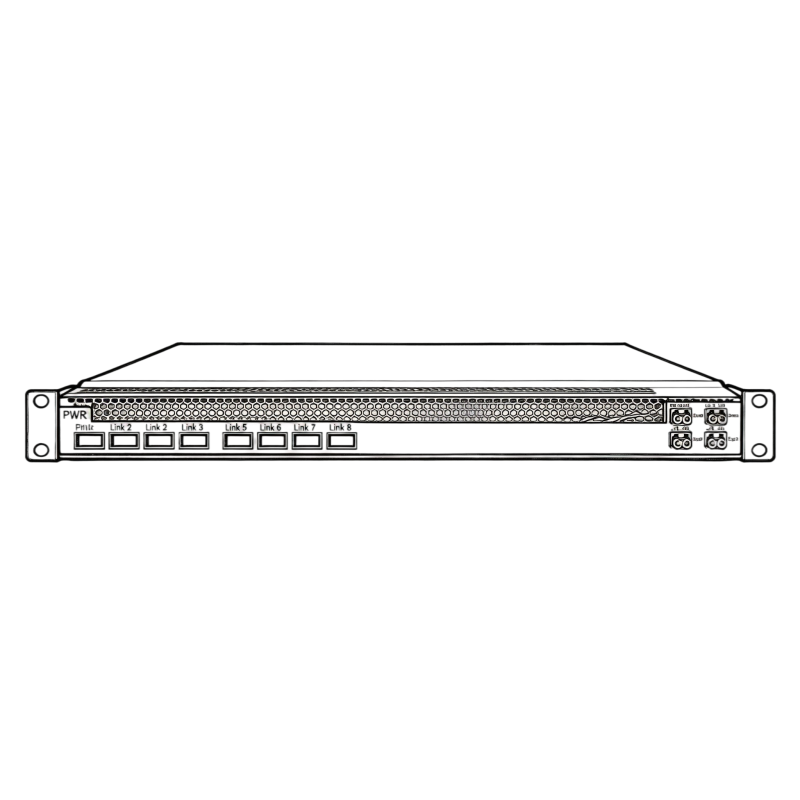

DCI3100

DCI3100

The DCI3100 integrated wavelength division equipment is developed by ISEELINK for data center interconnection (DCI) scenarios. It has the outstanding characteristics of large capacity, small size, low energy consumption and high cost performance.Housed in standard 1U chassis, this device supports max 1.6T (16*100G) capacity and can be smoothly expanded to 3.2T capacity through device stacking.Adopting high-density optoelectronic integration technology, OSP3100 avoids complex fiber jumper connections with its unique switch-like design and brings ultimate user experience by its extremely simple installation.

Explore Further

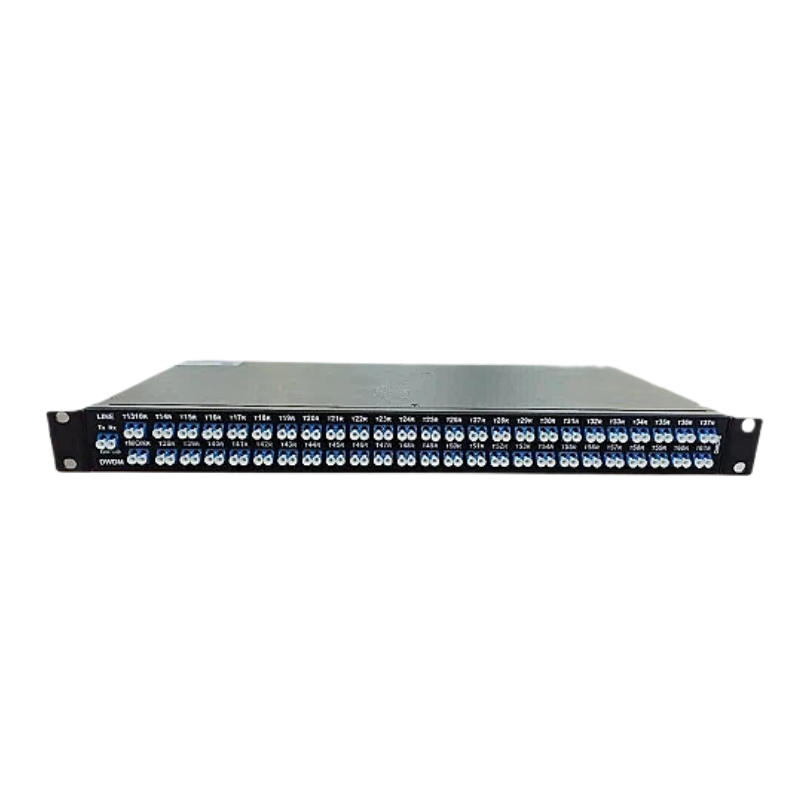

OMD96 Equipment

OMD96 Equipment

The passive MUX device for signal splitting operates independently of the sub-frame chassis and can be installed in a standard 19-inch data cabinet, with a height of 1U.

Explore Further
OMD48 Equipment

OMD48 Equipment

The passive MUX device for signal splitting operates independently of the sub-frame chassis and can be installed in a standard 19-inch data cabinet, with a height of 1U.

Explore Further

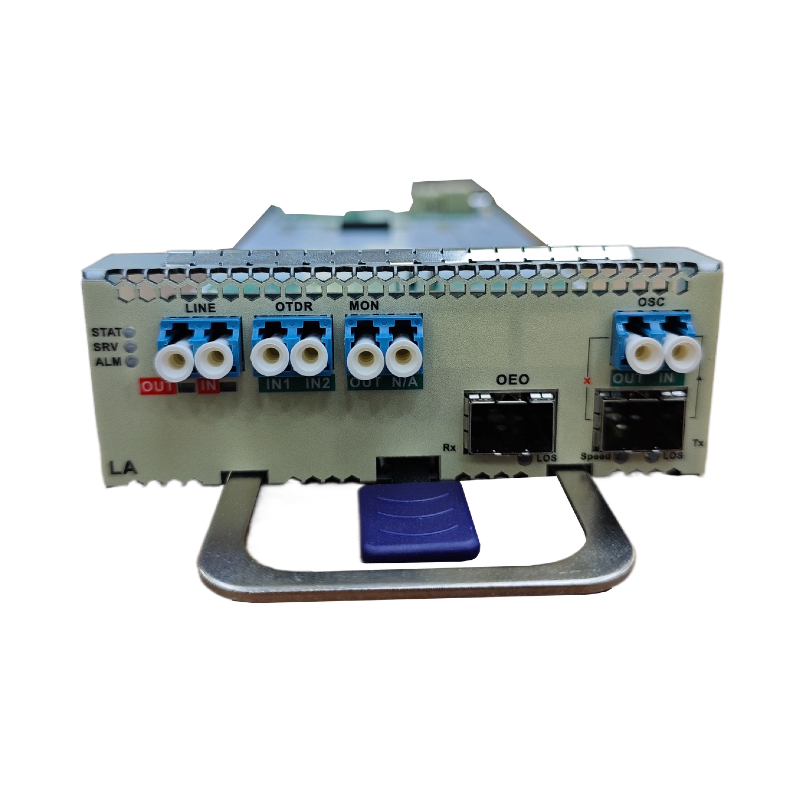

OLA Card

OLA Card

The Optica Linel Amplifier Module delivers a versatile, low-noise solution for erbium-doped fiber amplifiers (EDFA). This compact module operates with constant gain (Automatic Gain Control, AGC) and constant output power (Automatic Power Control, APC), featuring a highly integrated design. The large-format module supports dual amplifiers with two independent gain units, the card occupies only 1/4 standard slot capacity.

Explore Further

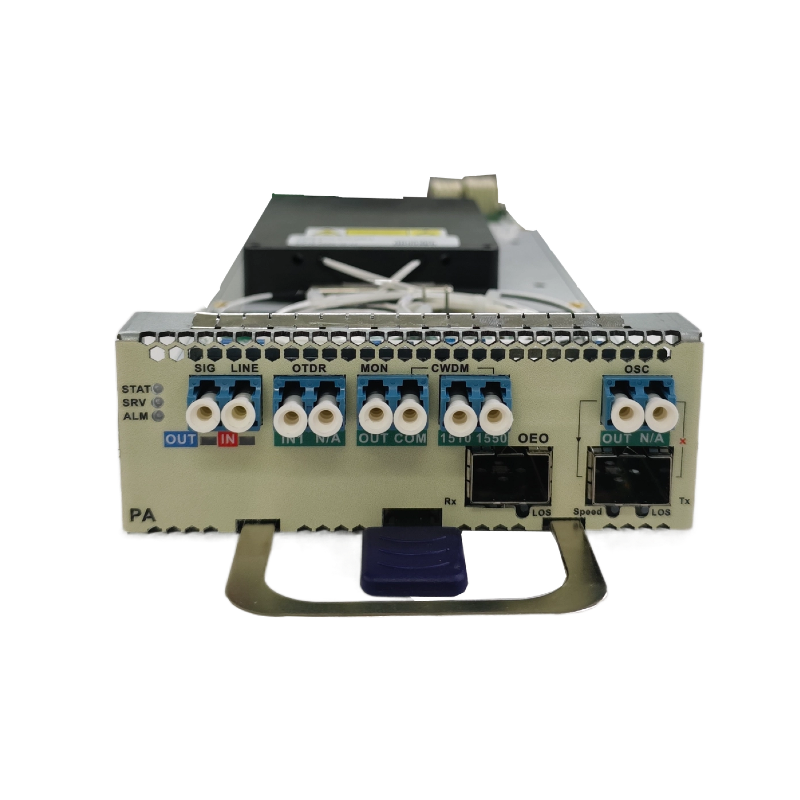

OPA Card

OPA Card

The Optical Pre Amplifier Module delivers a versatile, low-noise solution for erbium-doped fiber amplifiers (EDFA). This compact module operates with constant gain (Automatic Gain Control, AGC) and constant output power (Automatic Power Control, APC), featuring a highly integrated design. The large-format module supports dual amplifiers with two independent gain units, the card occupies only 1/4 standard slot capacity.

Explore Further

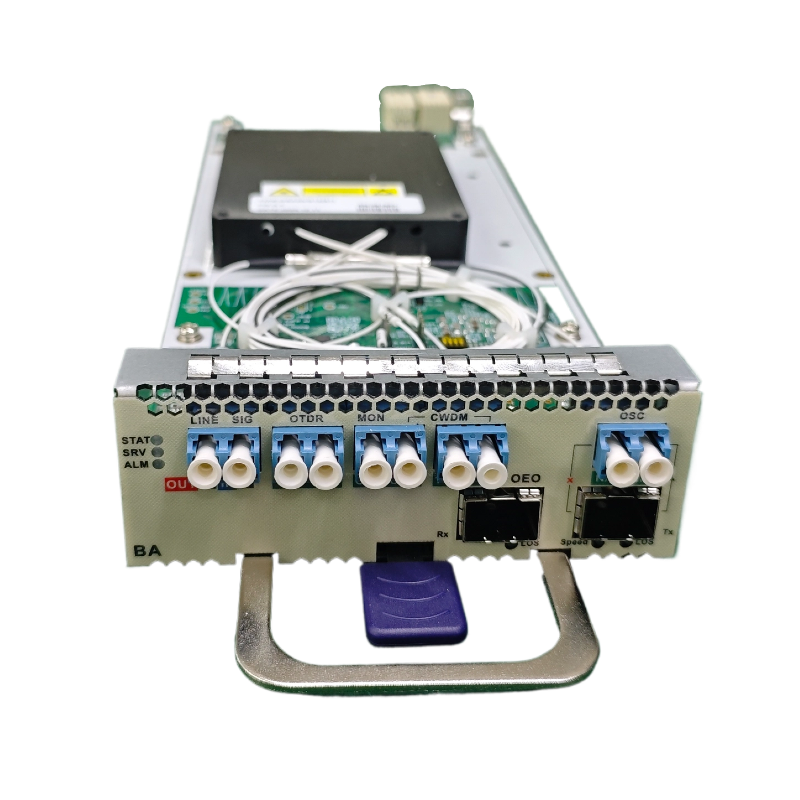

OBA Card

OBA Card

The Optical Boost Amplifier Module delivers a versatile, low-noise solution for erbium-doped fiber amplifiers (EDFA). This compact module operates with constant gain (Automatic Gain Control, AGC) and constant output power (Automatic Power Control, APC), featuring a highly integrated design. The large-format module supports dual amplifiers with two independent gain units, the card occupies only 1/4 standard slot capacity.

Explore Further
M8X2 Card

M8X2 Card

400G Transponder Card

Explore Further

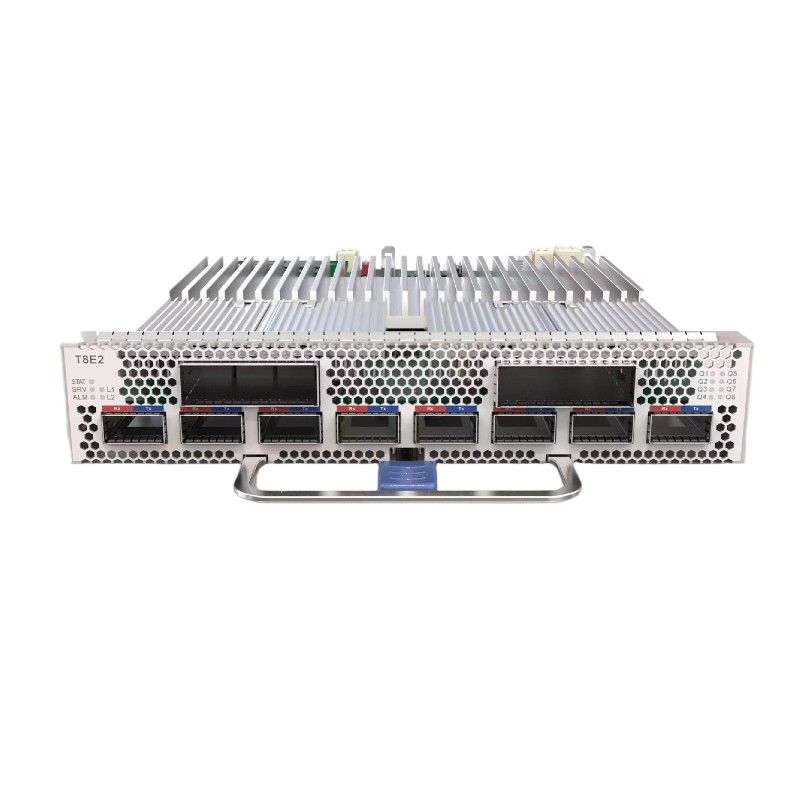

T8E2 Card

T8E2 Card

800G Tmux Card

Explore Further

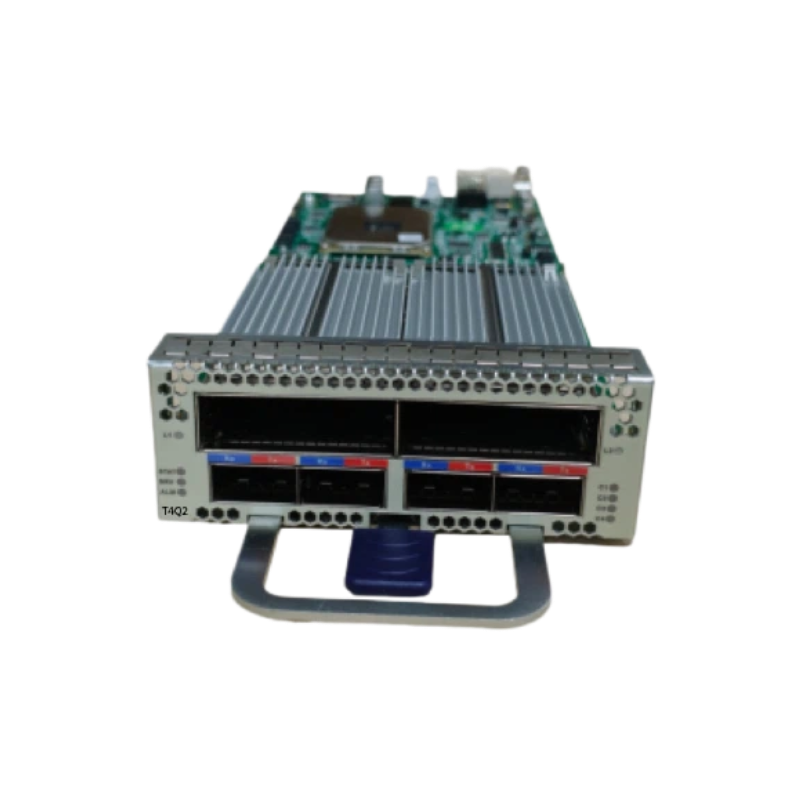

T4Q2 Card

T4Q2 Card

400G Transponder Card

Explore Further
T4Q1 Card

T4Q1 Card

400G Transponder Card

Explore Further

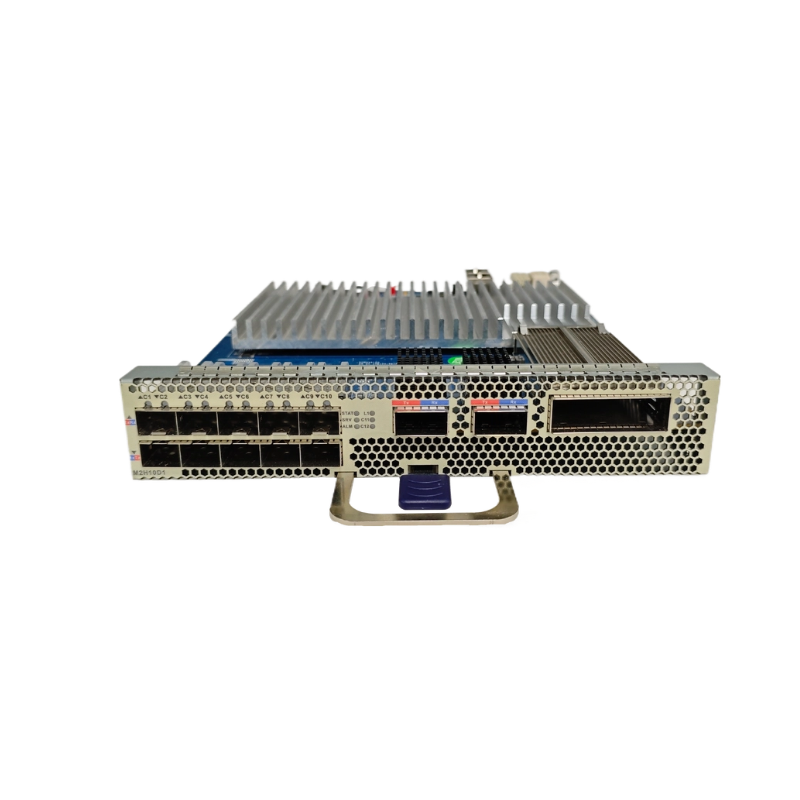

M2H10D1

M2H10D1

200G Muxponder Card

Explore Further

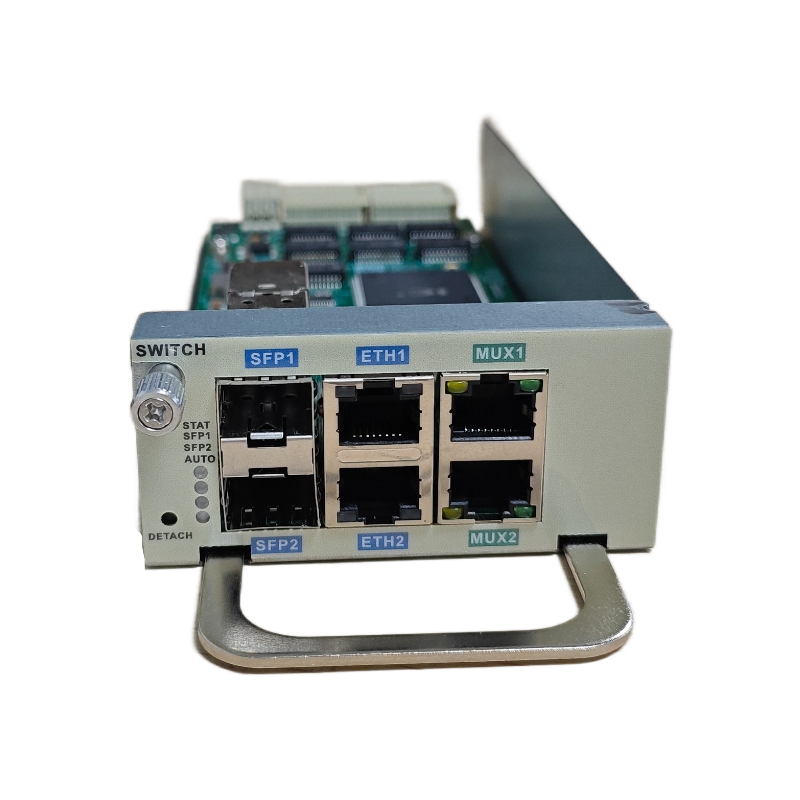

4U Chassis Ethernet Interface Card

4U Chassis Ethernet Interface Card

4U Chassis Ethernet Interface Card

Explore Further

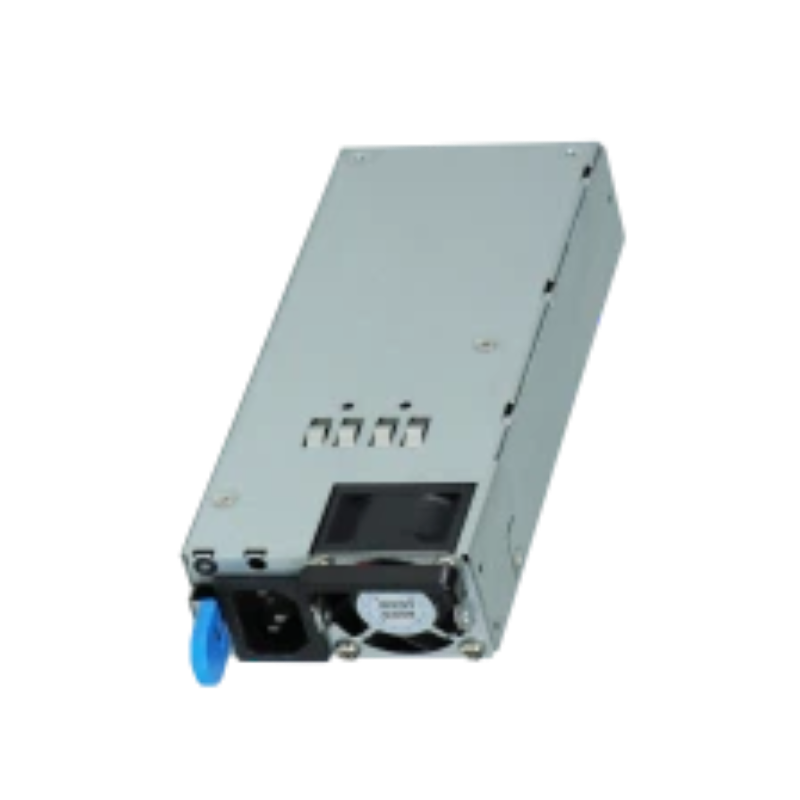

POWER Card

POWER Card

Power Card

Explore Further
2U Chassis Ethernet Interface Card

2U Chassis Ethernet Interface Card

U Chassis Ethernet Interface Card

Explore Further

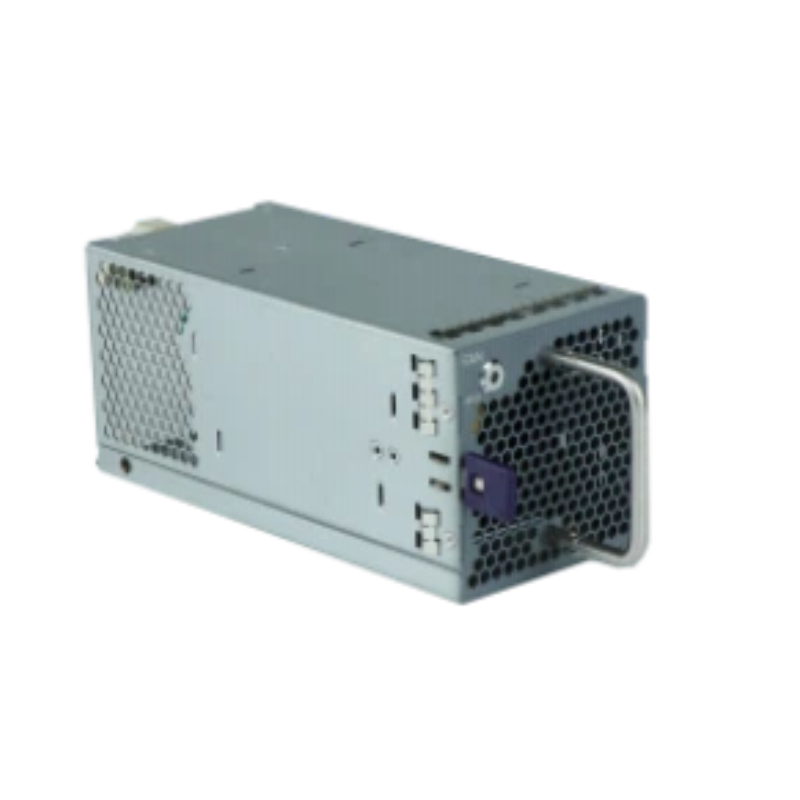

2U/4U Chassis FAN Card

2U/4U Chassis FAN Card

2U/4U Chassis FAN Card

Explore Further

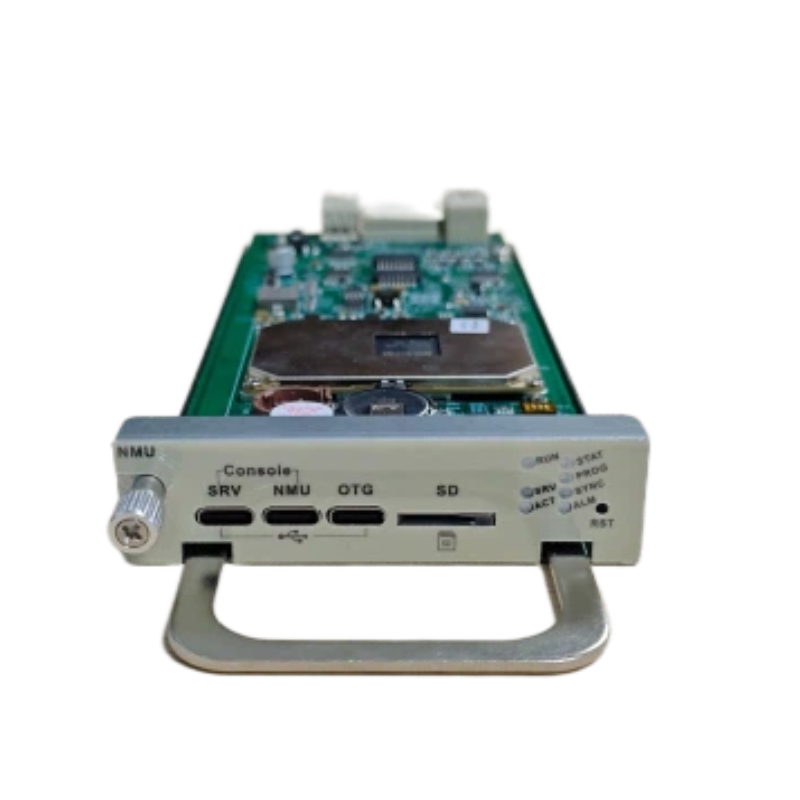

2U/4U Chassis NMU Card
