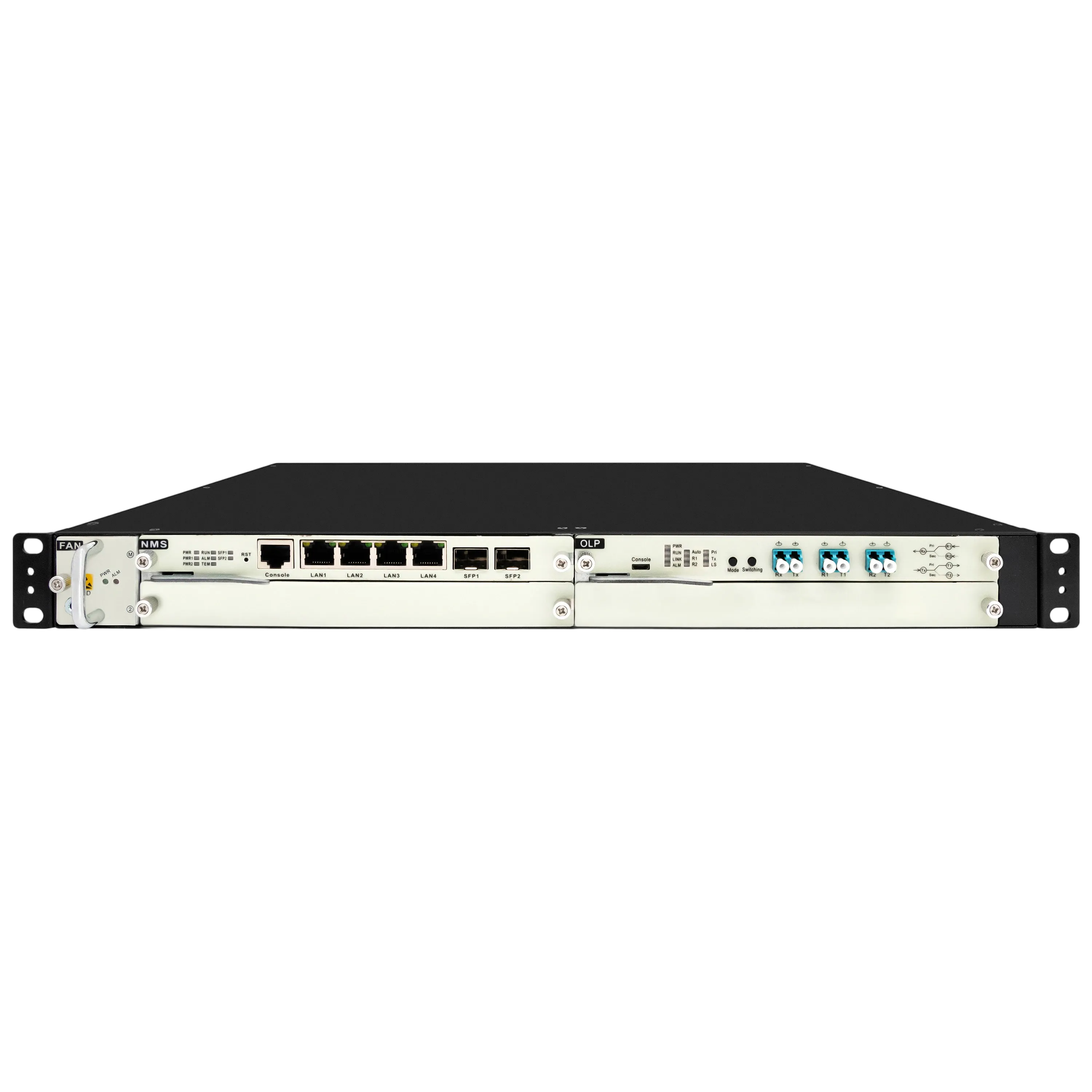

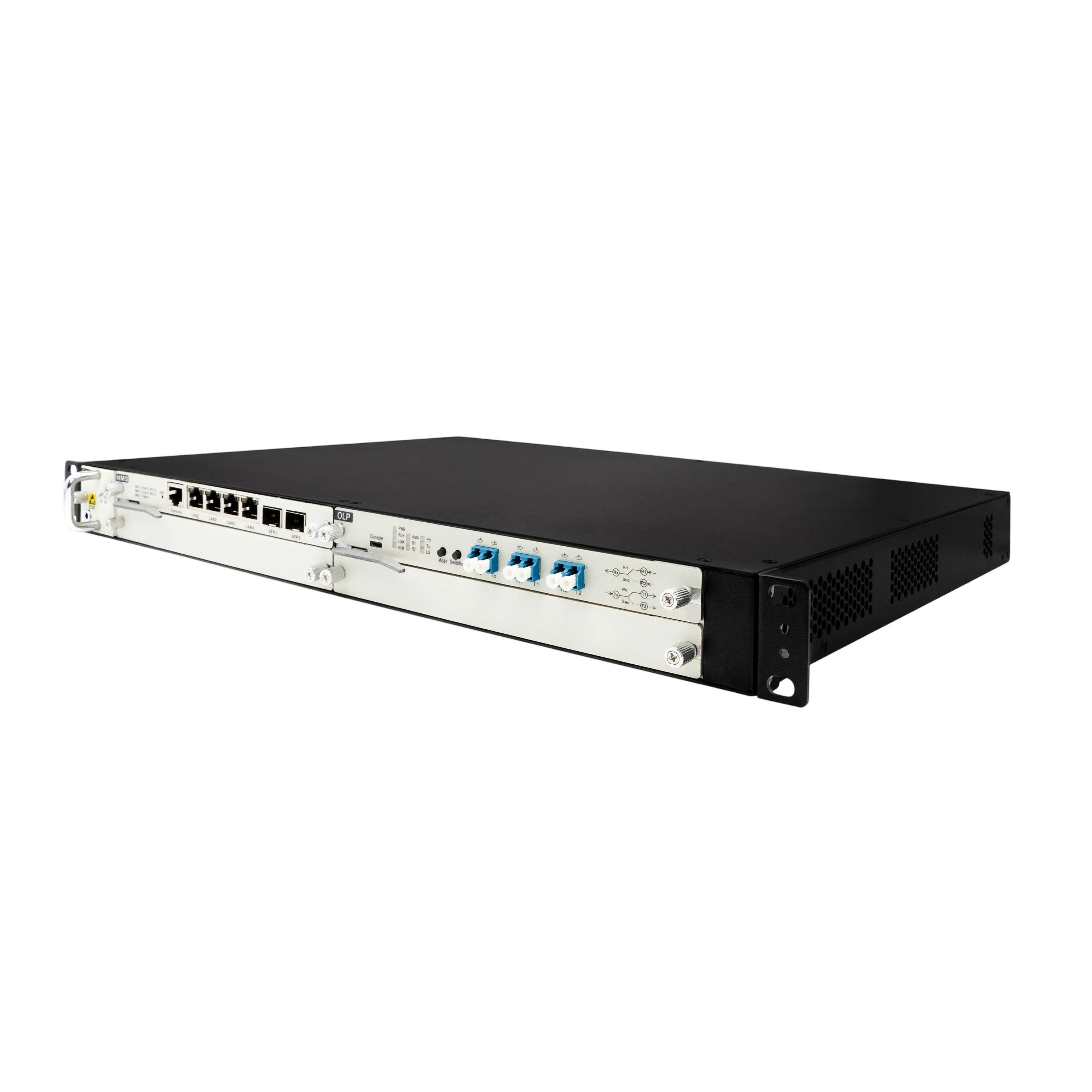

Plug-in OLP Optical Line Protection System

Part of the Optical Protection System

The OLP optical line protection subsystem launched by Shenzhen ISEELINK communication Technology Co., Ltd.is based on the advanced development of optical switch technology. It’s an automatic monitoring and protection system independent of communication transmission system and completely based on the physical link of optical cable.

The system can automatically switch the signal to the optical fiber of the protection path when performance deterioration or blocking of work path is detected. In this way, an optical communication network with high reliability, safety, flexibility and strong disaster resistance is established.

Get A Quote Now
Typical Applications Technical Specifications Related Euipment Related Download

Technical specifications

FunctionParameter
Working wavelength range1260nm ~ 1650nm
OLP typeOLP-1:1 OLP-1+1OLP-1-1OLP-1-1-BIDI
Switching time＜35ms ＜15ms＜15ms＜15ms
Introduction loss(A pair)Main path＜4.5dB ＜2.0dB＜2.0dB＜4.5dB
Backup path＜4.5dB ＜2.0dB＜2.0dB＜4.5dB
Monitoring power range-50 dBm ~+25dBm
Working temperature range-10℃~60℃
Working humidity range

5%~95% no condensation

Storage temperature

-40℃~85℃

Equipment dimension

OSP3800 1RU： 442(W)×350(D)×44(H)mm

7211 1RU：442 (W)×250 (D) ×44 (H)mm

Network managementSupport multi-kinds of graphical interface network management, such as SNMP, Web
Optical interfaceLC/UPC
Power supplyAC: 90 ~ 260V or DC: -72~ -36 V (support 1+1 power input backup)
Typical power consumptionFull configuration <30W
Heat dissipationFan cooling
MTBF＞100000 hours

Related Euipment

OLP Optical Line Protection System
OLP Optical Line Protection System

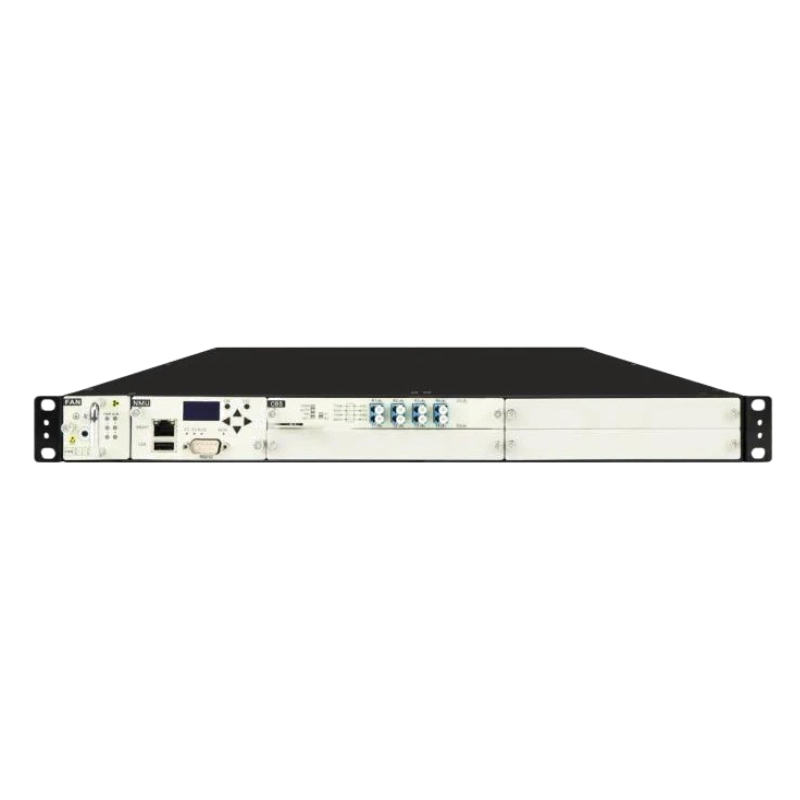

OBP Optical Bypass Protection System
OBP Optical Bypass Protection System

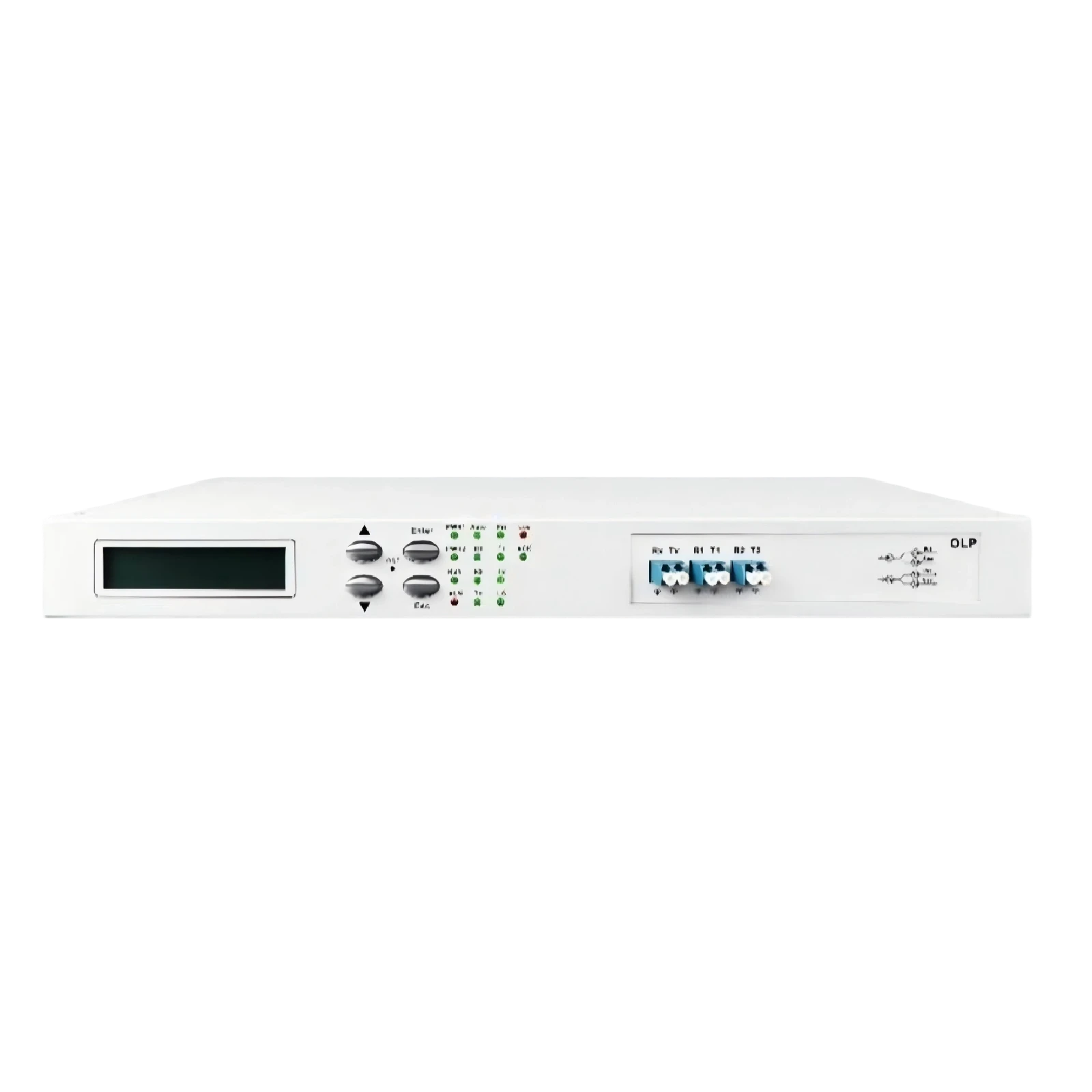

7211 OLP all-in-one equipment

7211 OLP all-in-one equipment

The OLP optical line protection subsystem launched by Shenzhen ISEELINK communication Technology Co., Ltd.is based on the advanced development of optical switch technology. It’s an automatic monitoring and protection system independent of communication transmission system and completely based on the physical link of optical cable. The system can automatically switch the signal to the optical fiber of the protection path when performance deterioration or blocking of work path is detected. In this way, an optical communication network with high reliability, safety, flexibility and strong disaster resistance is established.

Explore Further
Plug-in OLP Optical Line Protection System

Plug-in OLP Optical Line Protection System

The OLP optical line protection subsystem launched by Shenzhen ISEELINK communication Technology Co., Ltd.is based on the advanced development of optical switch technology. It’s an automatic monitoring and protection system independent of communication transmission system and completely based on the physical link of optical cable. The system can automatically switch the signal to the optical fiber of the protection path when performance deterioration or blocking of work path is detected. In this way, an optical communication network with high reliability, safety, flexibility and strong disaster resistance is established.

Explore Further
OBP Optical Bypass Protection System

OBP Optical Bypass Protection System

The OLP optical line protection subsystem launched by Shenzhen ISEELINK communication Technology Co., Ltd.is based on the advanced development of optical switch technology. It’s an automatic monitoring and protection system independent of communication transmission system and completely based on the physical link of optical cable. The system can automatically switch the signal to the optical fiber of the protection path when performance deterioration or blocking of work path is detected. In this way, an optical communication network with high reliability, safety, flexibility and strong disaster resistance is established.

Explore Further
