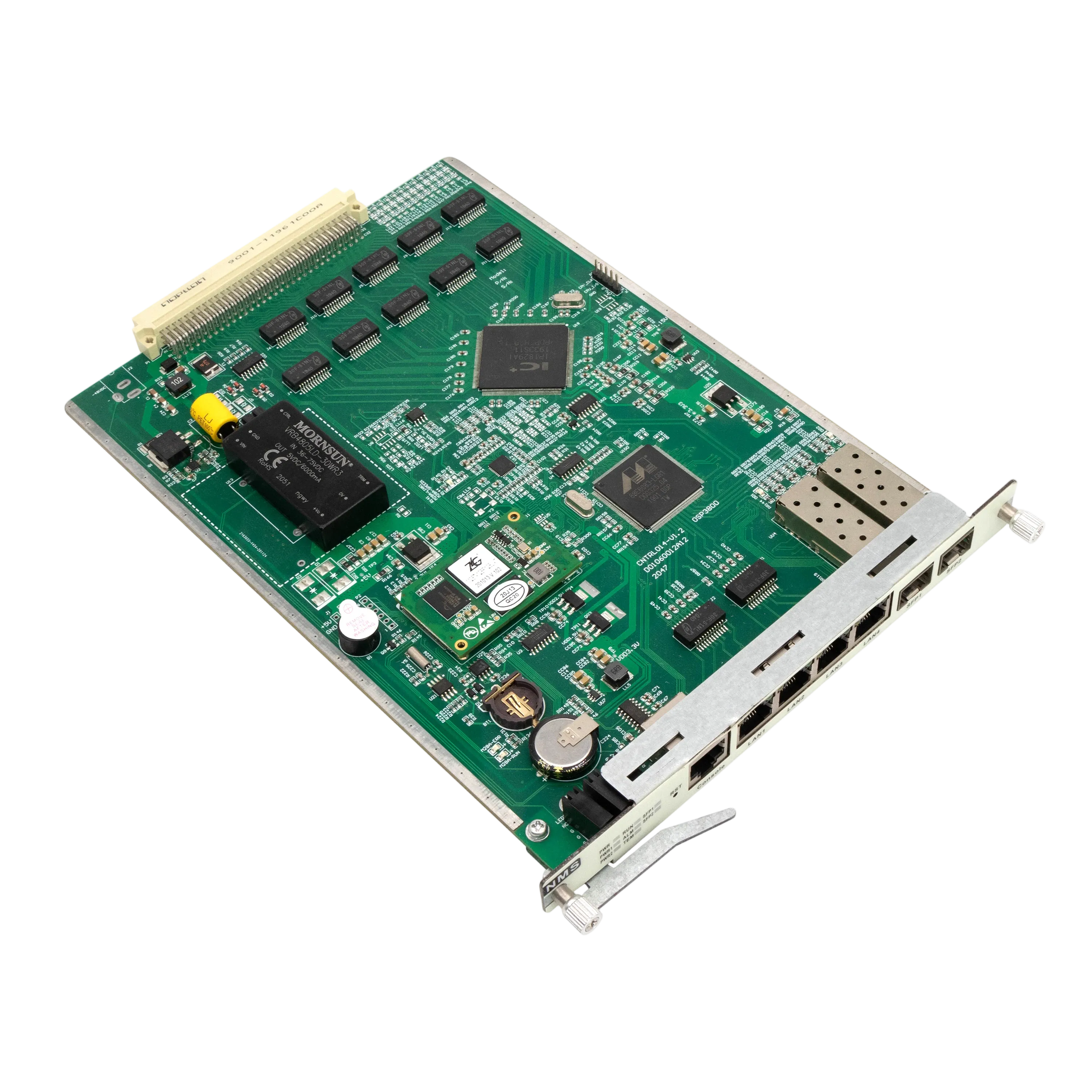

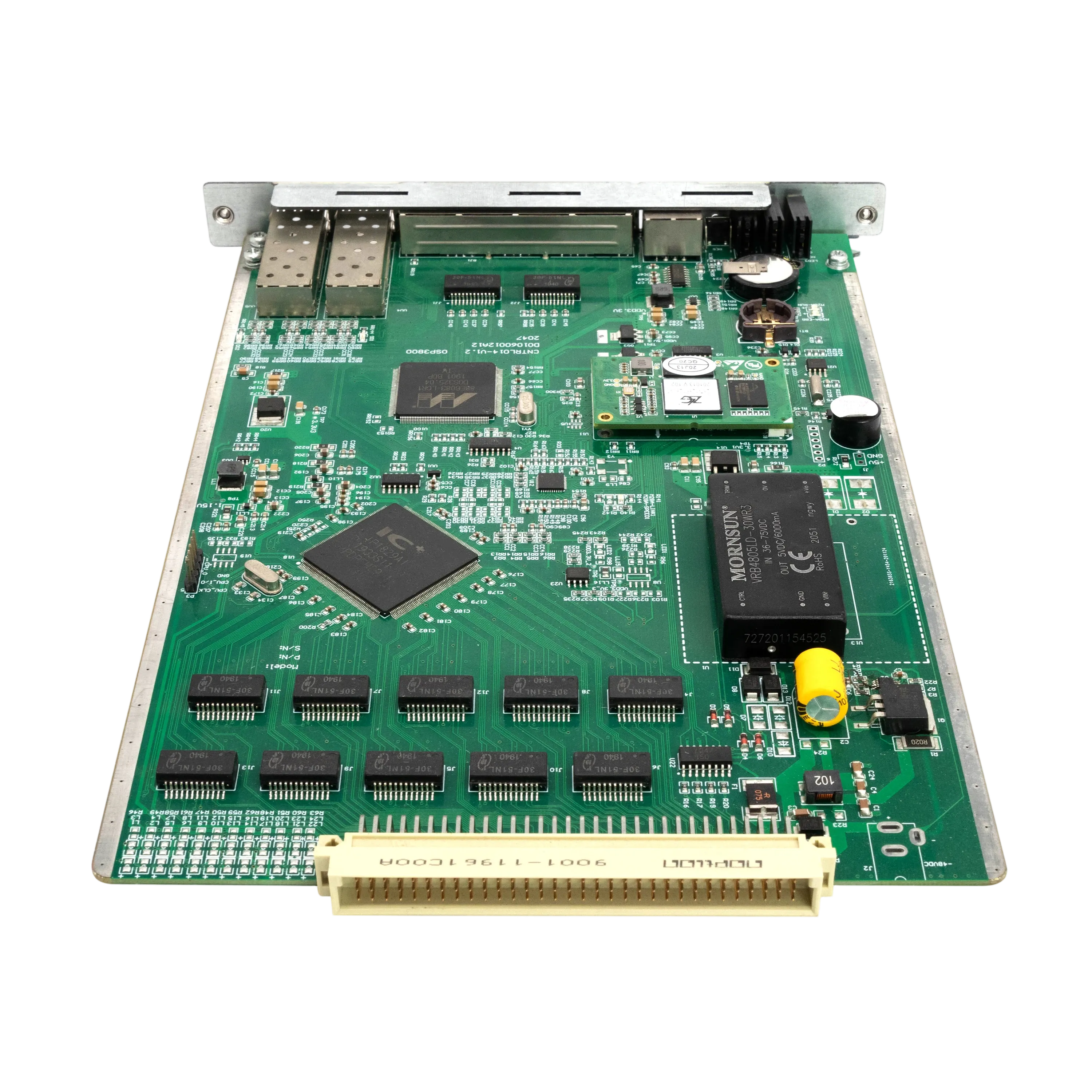

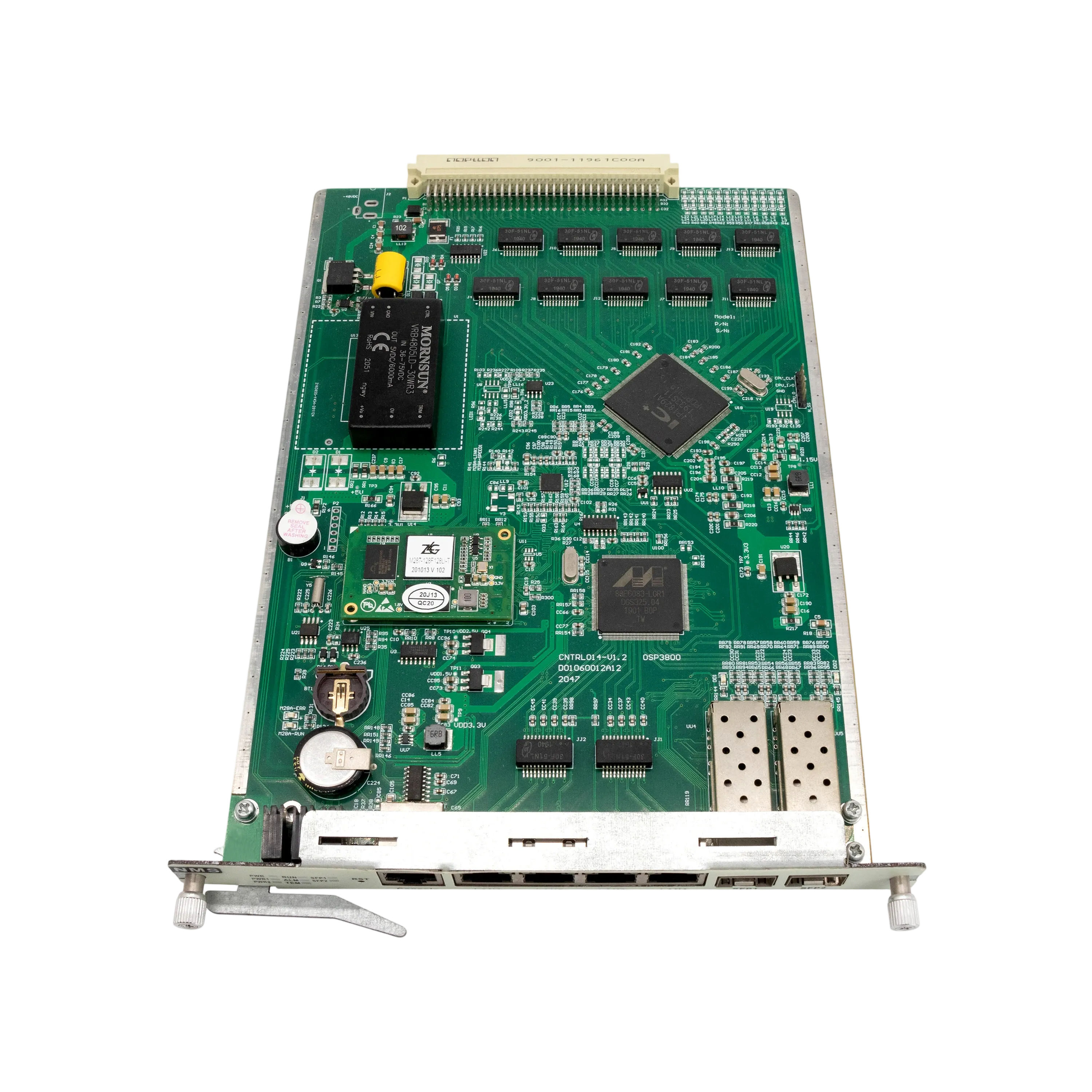

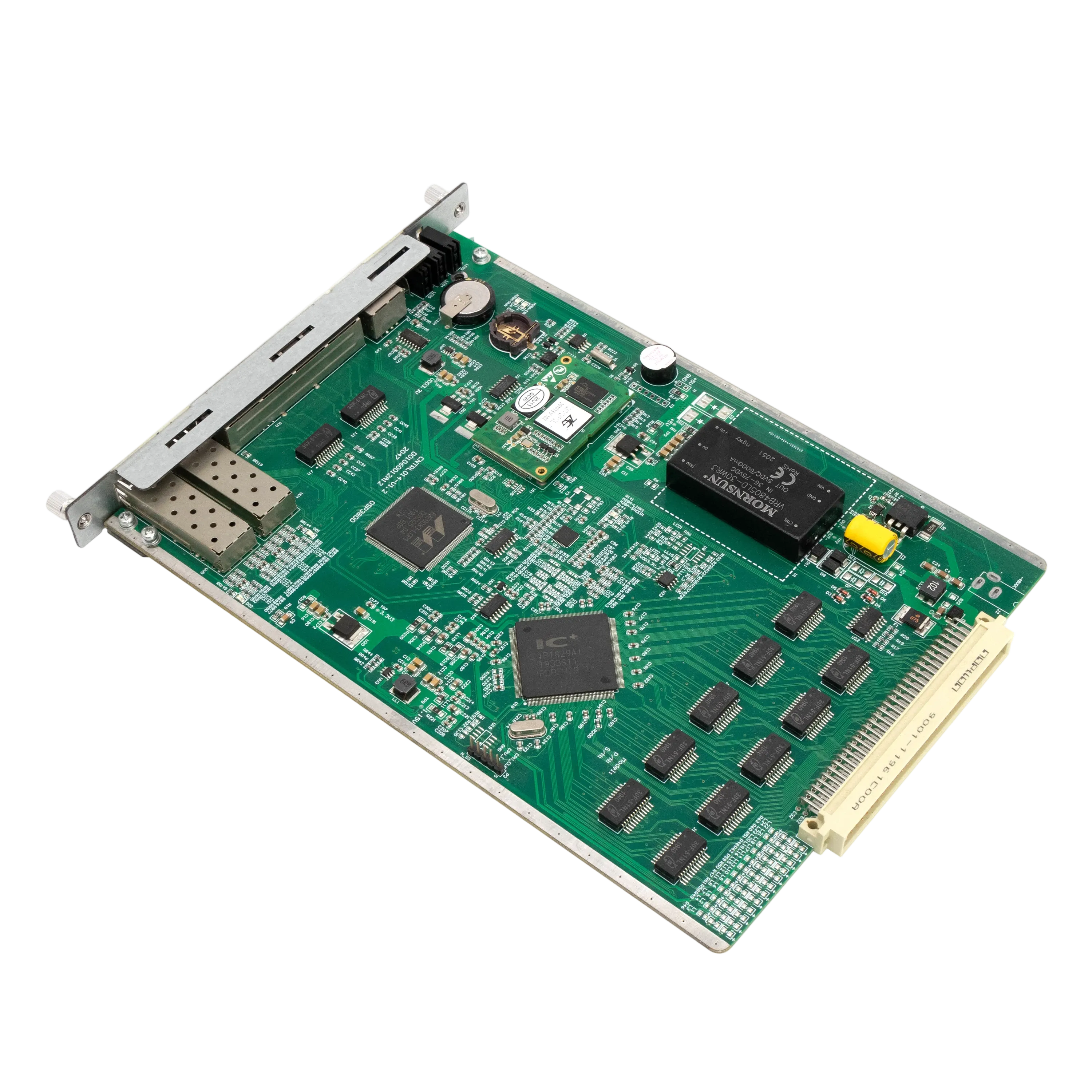

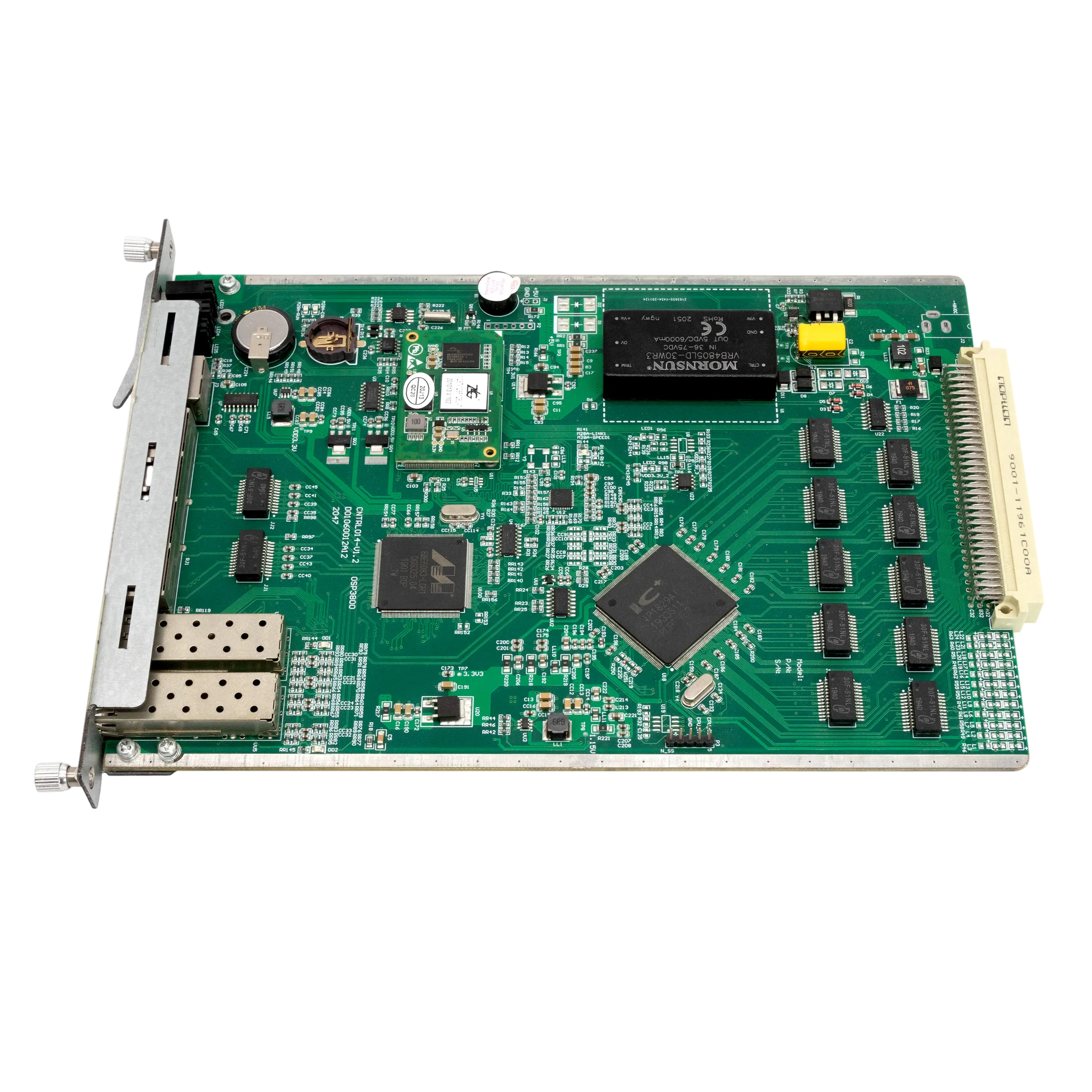

NMS: Network Control Management Card

Part of the DCI-BOX transmission

NMS is a network management module specially designed for OSP3800 series products , Its main function is to provide the interface between equipment and network management system. With the OTN network management system of OSP3800 series, NMS completes the single card management, various maintenance and management signal transmission of network element, and realizes the real-time monitoring, maintenance and management of equipment element and the whole synchronous equipment network.

It provides a good solution for equipment monitoring.

Get A Quote Now

Typical Applications Technical Specifications Related Euipment Related Download

Technical specifications

Function	Description
Local management serial port	Support a RJ45 Console local management serial port
Remote management Ethernet port	Supports four RJ45 Ethernet interfaces, interface rate 10/100M adaptive
OSC optical monitoring port	Supports two pluggable 100Mb/s optical SFP ports
Network management method	Supports two pluggable 100Mb/s optical SFP ports
Exchange function	Support CLI, Telnet, SNMP, Web and other network management methods
Protection function	Support IP communication between devices to realize integrated management
Maintenance function	Plug out or failure of network management card will not affect existing service
Reset function	Support local or remote software online upgrade
Initialization function	Support hardware reset of local NMS card by operating key
Working temperature	Support initialization of local NMS card hardware by operating key
Working humidity	-10℃~+60℃
Number of occupied slots	5%~95%
Maximum power consumption	5W
MTBF	＞100000 hours
Default IP address of factory	192.168.1.188
