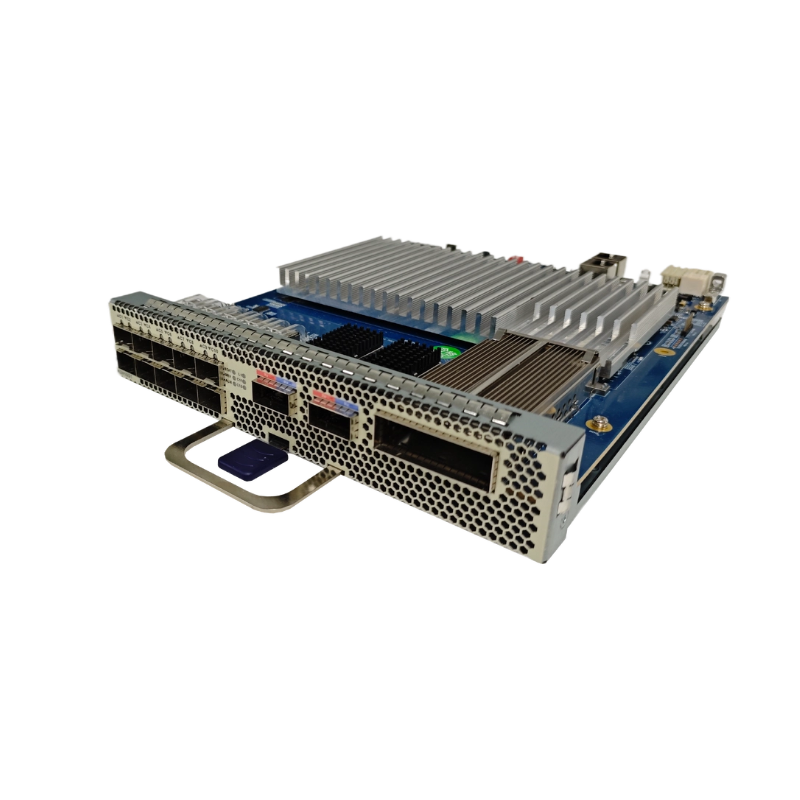

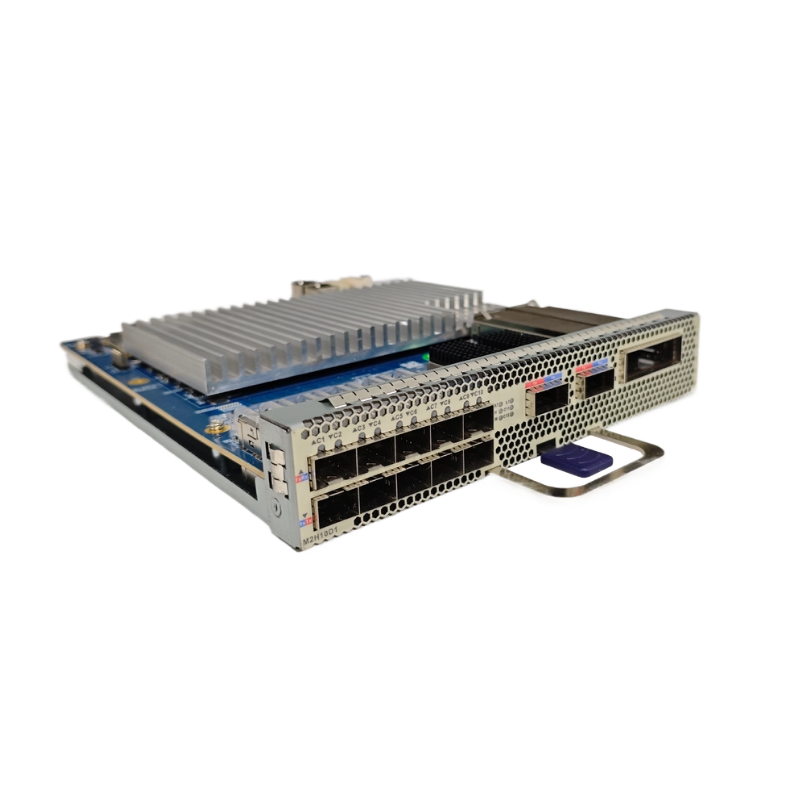

M2H10D1

Part of the DWDM/CWDM/OTN transmission

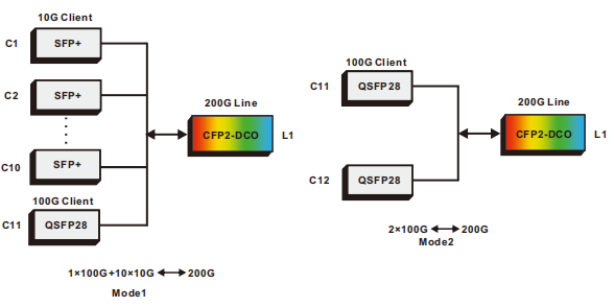

The 200G service card supports two 100GE or one 100GE add ten 10GE service access, adopts advanced technologies such as 16QAM/QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and non-linearity.

It can realize 200GE business over 1200 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.

Get A Quote Now

Typical Applications Technical Specifications Related Euipment Related Download

Technical specifications

Function	Description
Occupied Slots	1/2 slots,shown in name 2/4/6/8 slot
Client-side Interface	Supports 2 pluggable QSFP28 100G modules Supports 1 pluggable QSFP+ 40G modules Supports 10 pluggable SFP+ 10G modules
Line-side Interface	Supports 1 pluggable 200G CFP2 DCO coherent module
Service Type	10GE/OTU2/STM-64/10GE WAN/40GE/100GE/100GE FlexE (Unware mode)/OTU4
Service Mapping Path	2100G client to 1200G line mode: . 100G<-> ODU4<-> ODUC2<-> OTUC2 . OTU4<-> ODU4<-> ODUC2<-> OTUC 1100G + 1010G client to 1200G line mode: . 100G<-> ODU4<-> ODUC2<-> OTUC2 . OTU4<-> ODU4<-> ODUC2<-> OTUC2 . 10G <->ODU2<->ODU4<-> ODUC2<-> OTUC2 . STM64 <-> ODU2 <-> ODU4<-> ODUC2<-> OTUC2 . OTU2 <-> ODU2<-> ODU4<-> ODUC2<-> OTUC2 140G + 1010G client to 1200G line mode: . 40G<-> ODU3<-> ODU4<->ODUC2<-> OTUC2 . 10G <->ODU2<->ODU4<-> ODUC2<-> OTUC2 . STM64 <-> ODU2 <-> ODU4<-> ODUC2<-> OTUC2 . OTU2 <-> ODU2<-> ODU4<-> ODUC2<-> OTUC2
Line-side Modulation Format	200G: 16QAM / QPSK
Line-side Protection Function	When switching over with the optical protection card, the switchover must be completed within 50ms.
Local Fault	Supports downstream insertion of Local Fault from the client side in case of Ethernet input loss or WDM side failure. Supports transparent transmission of Local Fault and Remote Fault.
