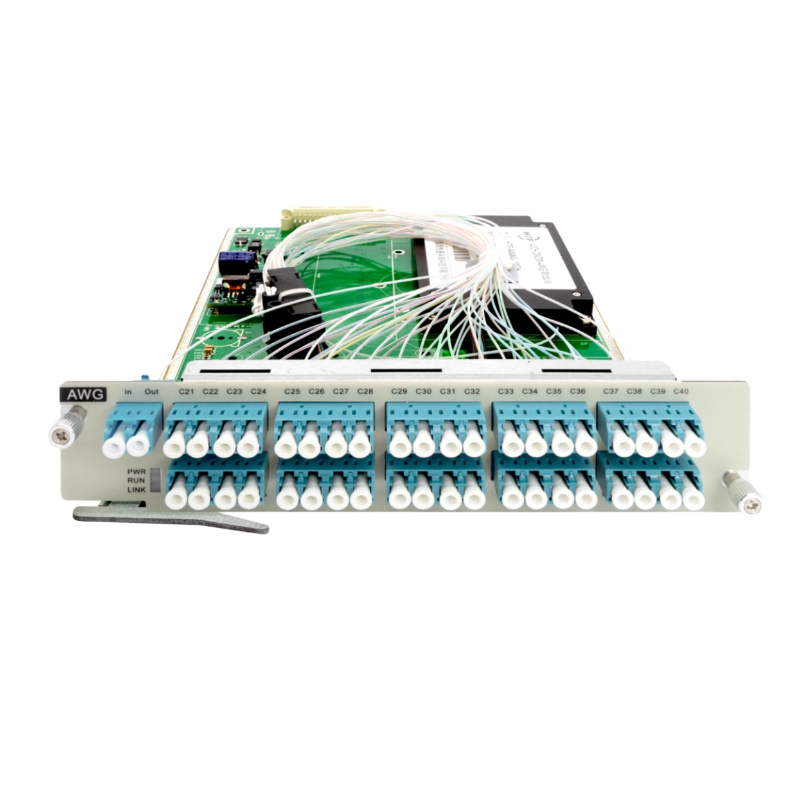

AWG: 40/48 Waves Multiplexing/Demultiplexing Card

Part of the DWDM/CWDM/OTN transmission

AWG split-wave card is mainly used in the DWDM system to complete 40/48 optical wavelength multiplexing and demultiplexing functions in the C-band range, which can multiplex different wavelengths of light into one. Multiple optical channels multiplexed on the same fiber are separated by wavelength on the fiber. It is based on waveguide grating technology on silicon substrates design for precise channel coupling, low insertion loss, high channel isolation and high stability for 40/48-wave high-capacity DWDM systems.

Get A Quote Now

Technical Specifications Related Euipment Related Download

Technical specifications

Function		Description
Optical channel number		40/48 channel, support C band (C_EVEN), (C_ODD)
Channel spacing		0.8nm (100GHz)
Channel frequency		±12.5 GHz
Wavelength accuracy		≤0.05nm
Channel insertion loss		≤5.5dB
-1dB bandwidth		≤0.34dB
-3dB bandwidth		≤0.51dB
Adjacent channel isolation ratio		≥25dB
Non-adjacent channel isolation ratio		≥30dB
Total isolation		≥23dB
Flatness		≤1.5dB
Return loss		≥45dB
Directivity		≥50dB
Occupied slot number		Support OSP3800 series chassis, occupy 2 slot, (1RU)
Optical interface		LC/UPC
Extend function		Support C band(C_EVEN)40/48 channel and(C_ODD)40/48 channel through Interleaver extend to 80/96 channel
Max power consumption		3W
MTBF		＞100000 hours

Related Euipment

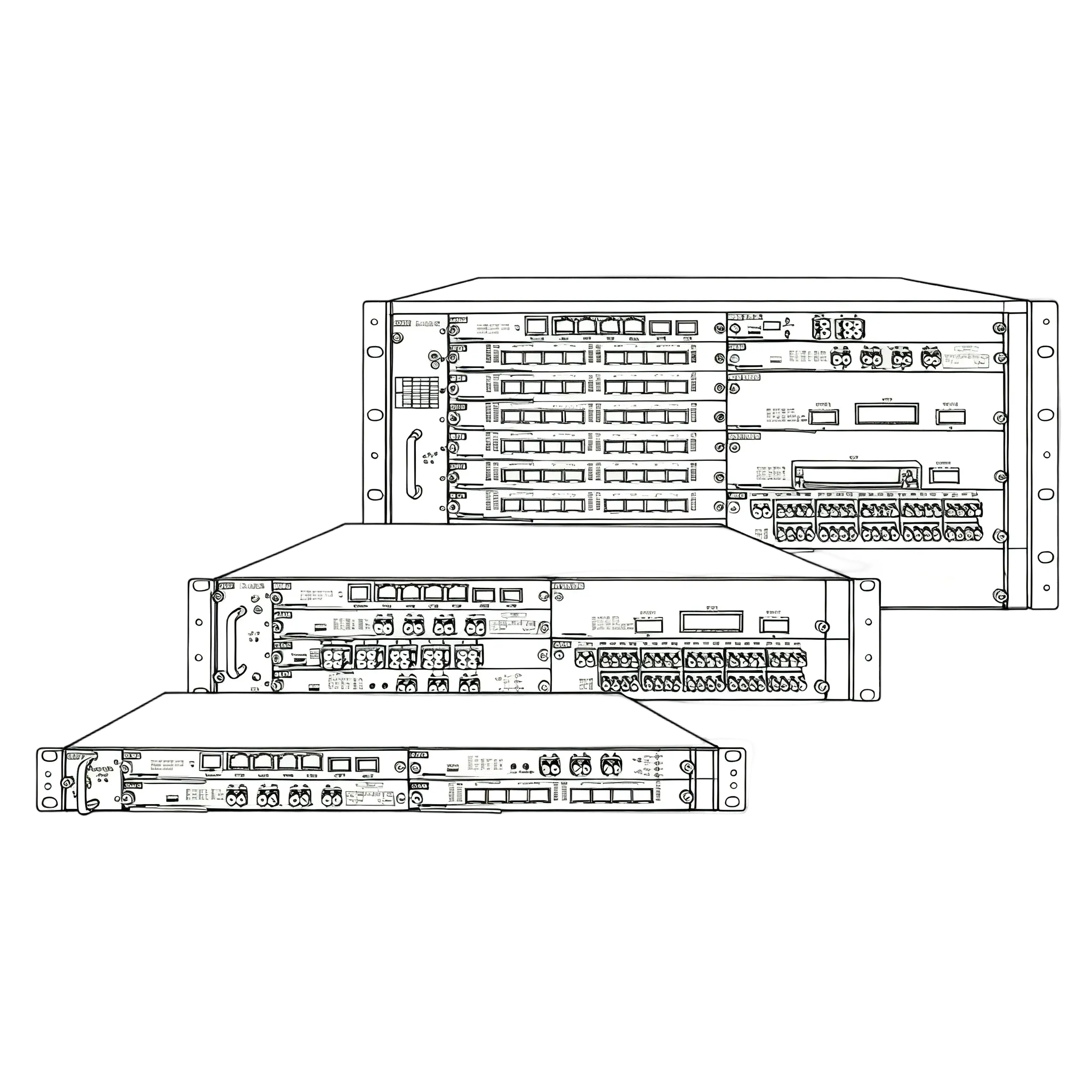

DWDM/CWDM/OTN Platform

DWDM/CWDM/OTN Platform

OLM Optical Line Monitoring System

OLM Optical Line Monitoring System

OTU Muxponder Cards

OTU Muxponder Cards

OTU Transponder Cards

OTU Transponder Cards

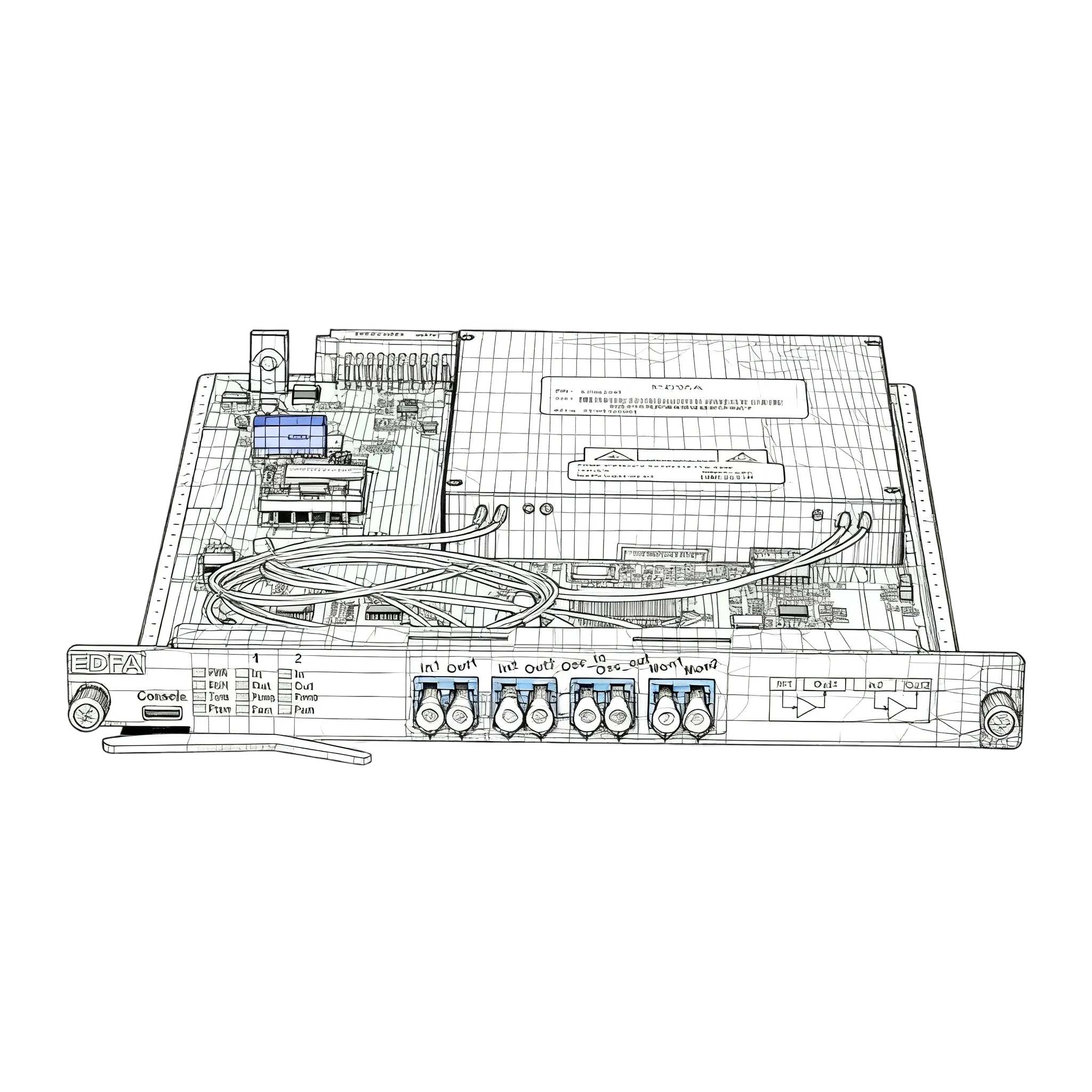

Open Line System

Open Line System

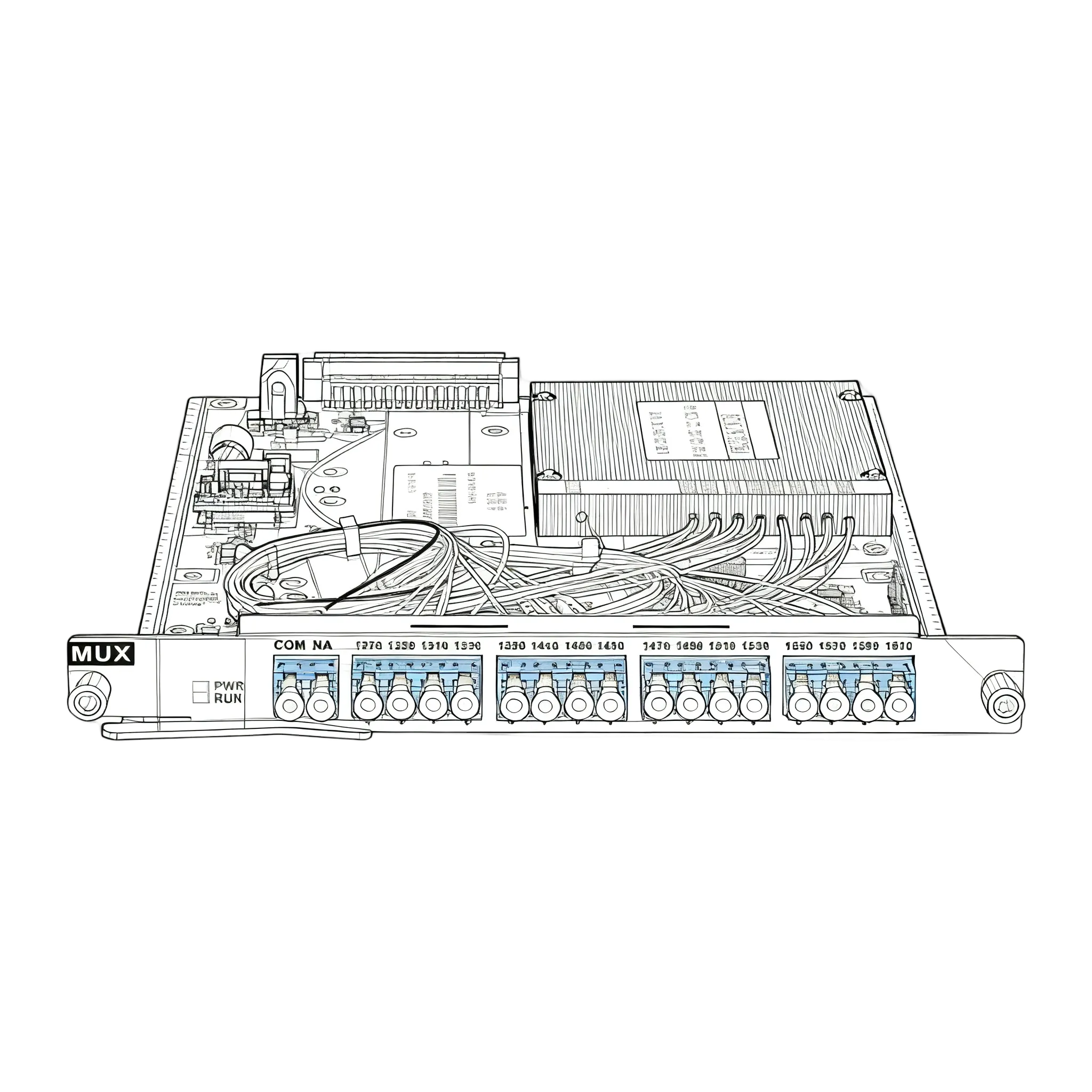

Optical Layer Board

Optical Layer Board

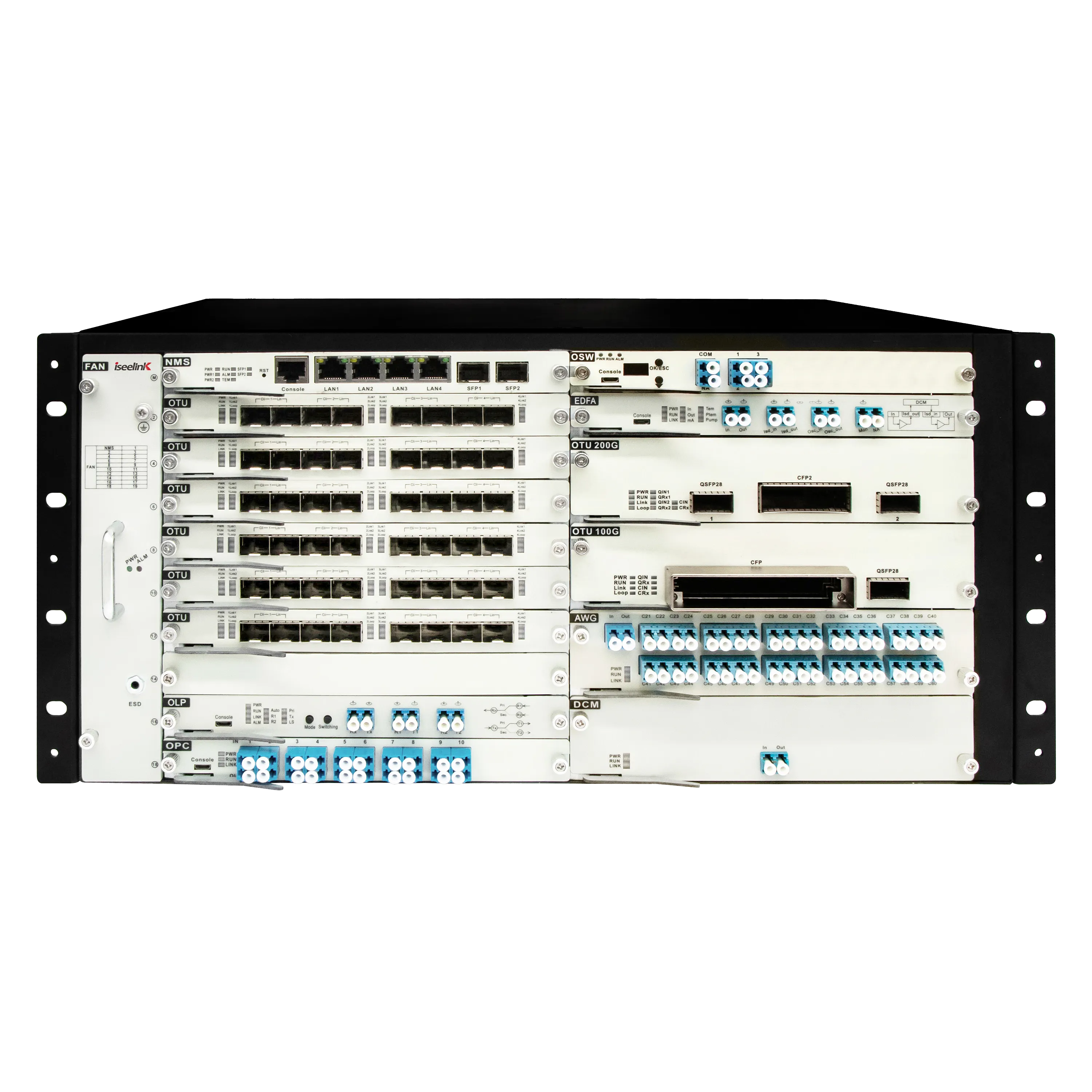

OSP3800 DWDM/OTN 5U Transmission Platform

OSP3800 DWDM/OTN 5U Transmission Platform

The OSP3800 series products use advanced transmission technology and high integration technology to support single-channel transmission rate from 100Mbps to 400Gbps, and provides wide bandwidth, large capacity and fully transparent transmission for 800Gbps expansion, enabling smooth upgrade of capacity. It provides a stable platform for multi-service operation and future network upgrade and expansion. It is widely used in operators, broadcasting, IDC, finance, government, cloud network, big data and other industries.

Explore Further

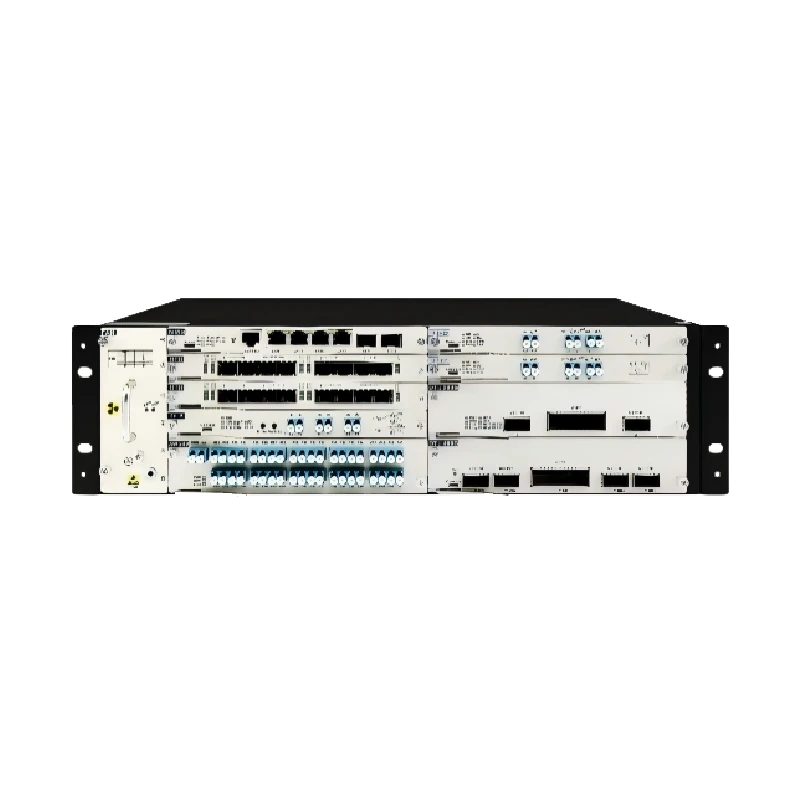

OSP3800 DWDM/OTN 3U Transmission Platform

OSP3800 DWDM/OTN 3U Transmission Platform

The OSP3800 series products use advanced transmission technology and high integration technology to support single-channel transmission rate from 100Mbps to 400Gbps, and provides wide bandwidth, large capacity and fully transparent transmission for 800Gbps expansion, enabling smooth upgrade of capacity. It provides a stable platform for multi-service operation and future network upgrade and expansion. It is widely used in operators, broadcasting, IDC, finance, government, cloud network, big data and other industries.

Explore Further

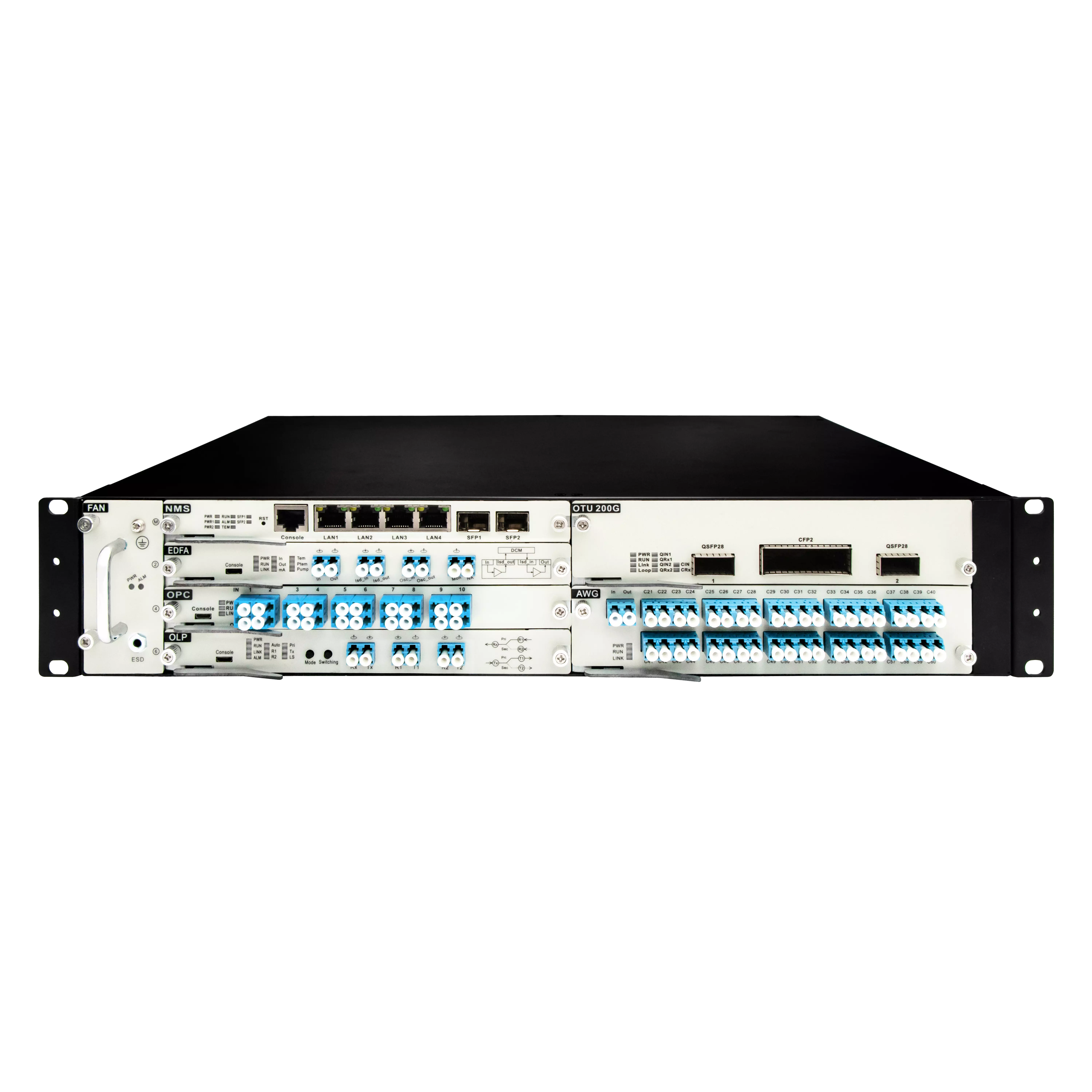

OSP3800 DWDM/OTN 2U Transmission Platform

OSP3800 DWDM/OTN 2U Transmission Platform

The OSP3800 series products use advanced transmission technology and high integration technology to support single-channel transmission rate from 100Mbps to 400Gbps, and provides wide bandwidth, large capacity and fully transparent transmission for 800Gbps expansion, enabling smooth upgrade of capacity. It provides a stable platform for multi-service operation and future network upgrade and expansion. It is widely used in operators, broadcasting, IDC, finance, government, cloud network, big data and other industries.

Explore Further

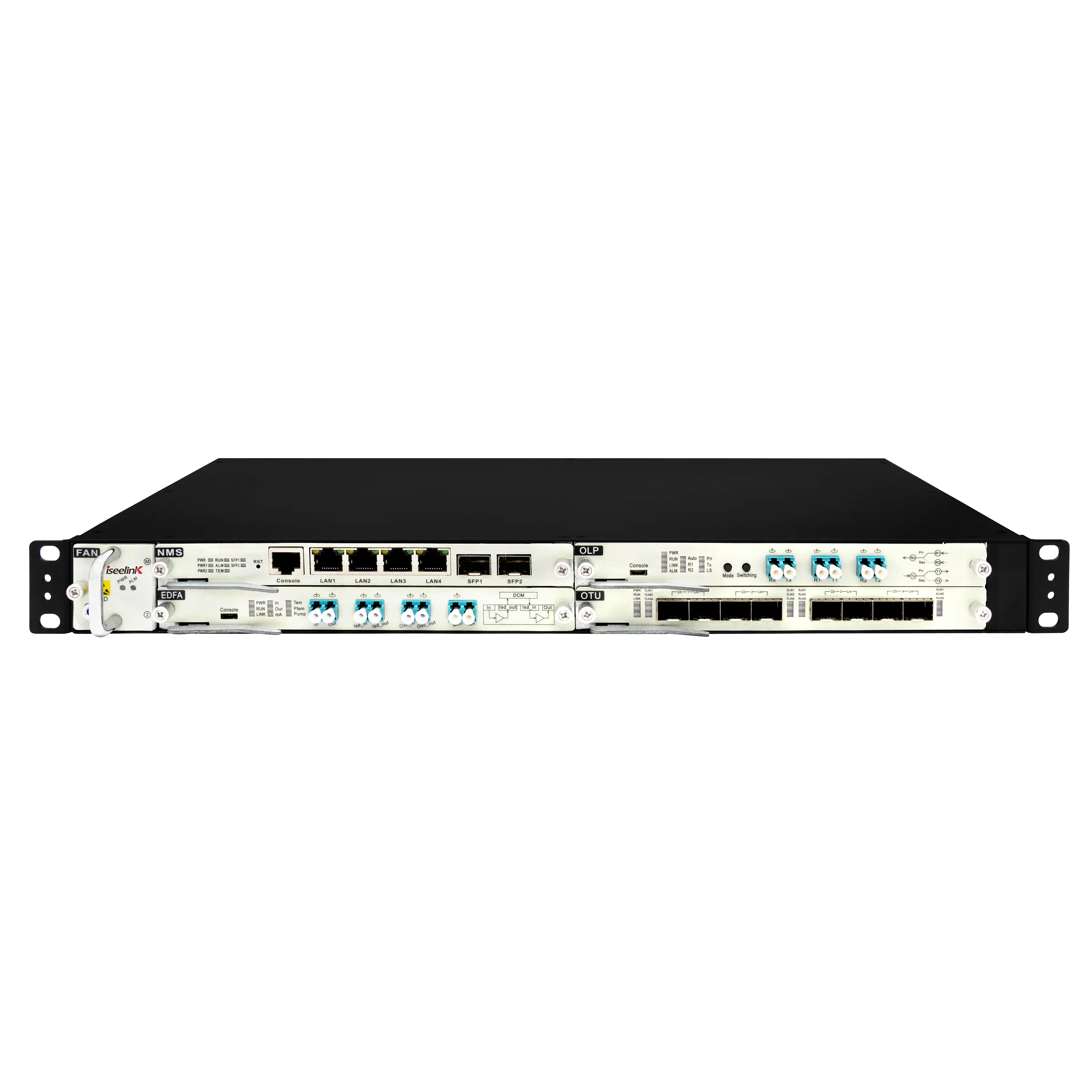

OSP3800 DWDM/OTN 1U Transmission Platform

OSP3800 DWDM/OTN 1U Transmission Platform

The OSP3800 series products use advanced transmission technology and high integration technology to support single-channel transmission rate from 100Mbps to 400Gbps, and provides wide bandwidth, large capacity and fully transparent transmission for 800Gbps expansion, enabling smooth upgrade of capacity. It provides a stable platform for multi-service operation and future network upgrade and expansion. It is widely used in operators, broadcasting, IDC, finance, government, cloud network, big data and other industries.

Explore Further

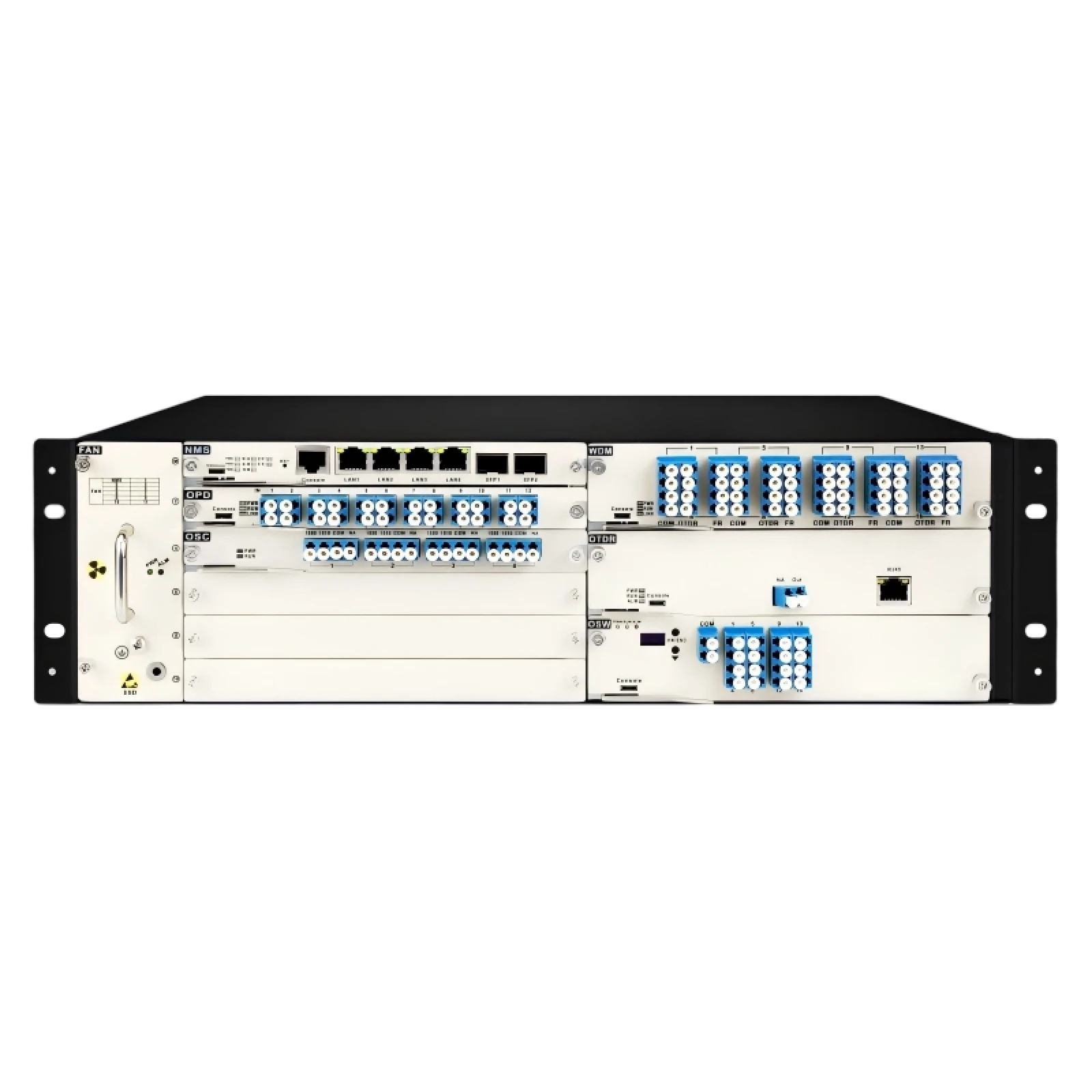

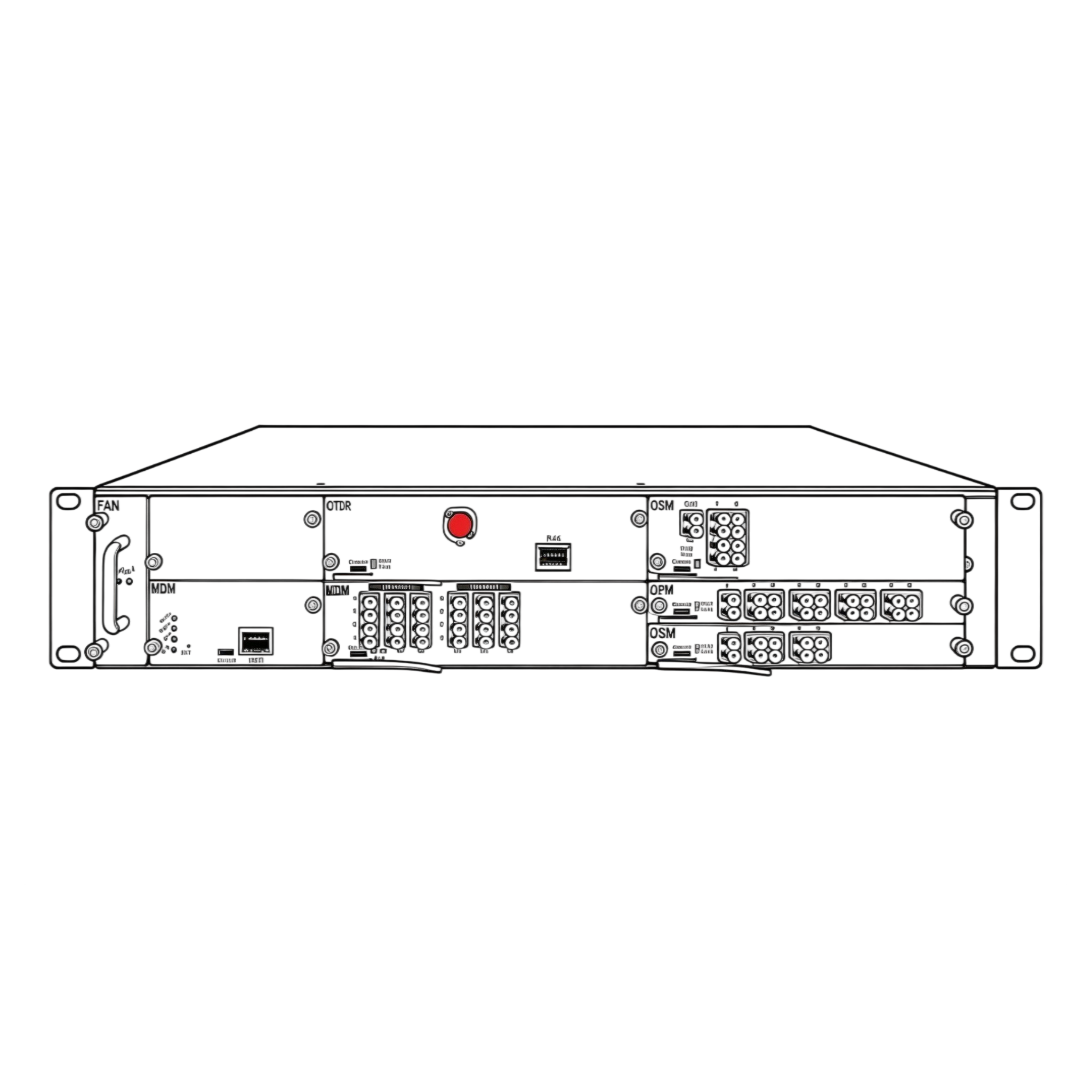

OLM Optical Line Monitoring System

OLM Optical Line Monitoring System

Optical cable monitoring system combines optical cable monitoring, alarm, fault analysis, positioning, fault management, line maintenance and line management to ensure the safe and efficient operation of the optical cable network. It can automatically monitor the communication optical cable 24 hours a day and automatically switch and protect the optical fiber. It can timely and accurately report the sudden optical cable fault, effectively shorten the fault duration, and It is necessary to find the potential faults that are hidden and not yet detected, but will cause communication interruption, and give accurate early warning, so as to achieve active maintenance and take preventive measures.

Explore Further

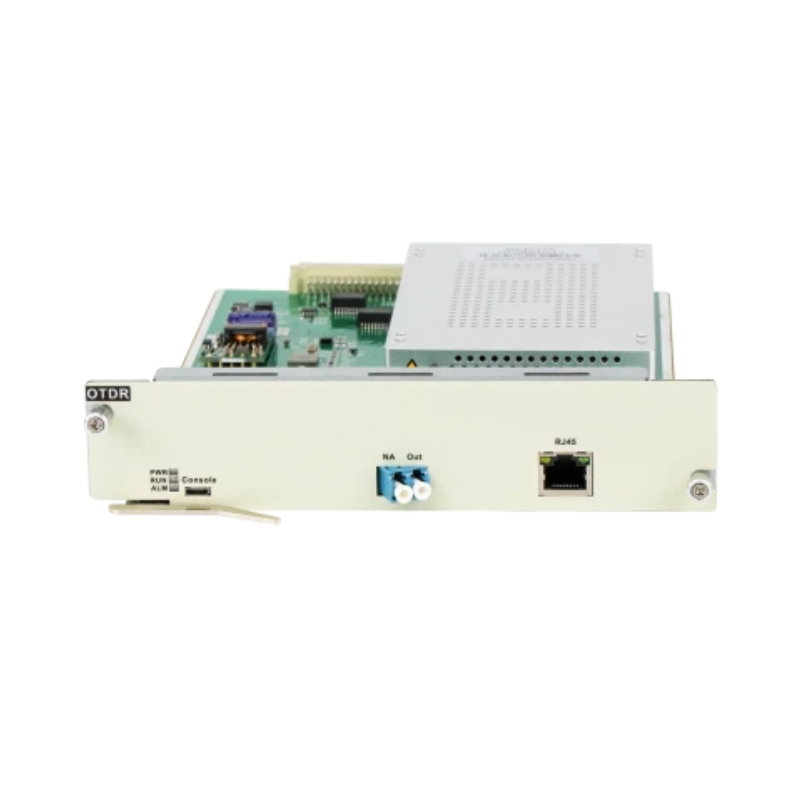

OTDR Card

During OTDR testing, pulses generated by the pulse generator drive the laser diode (LD) to emit light pulses. These pulses are directed into the fiber under test through a directional coupler. Scattering occurs within the fiber due to impurities and bubbles, with some of this backward scattering (BACK SCATTERINGLIGHT) combining with Fresnel reflections from irregular fiber end surfaces. The resulting light is reflected back to the coupler and captured by photodiodes, where it is converted into electrical waves. Given the extremely weak nature of this reflected light, it undergoes repeated transmission, collection, averaging, and amplification before being processed by the network management platform. This system features high dynamic range and superior resolution

Explore Further

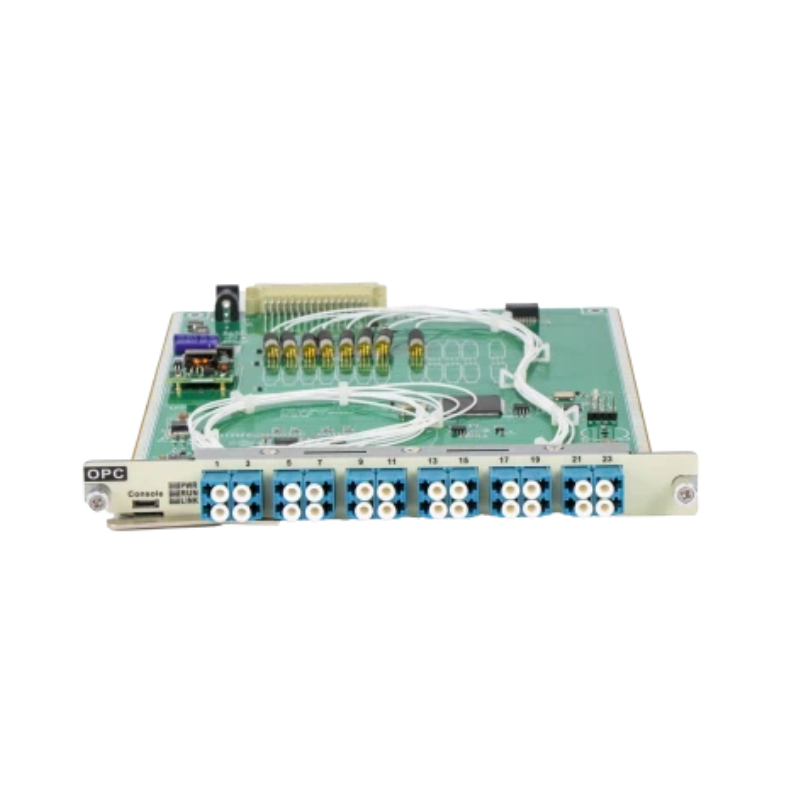

OPM Card

Optical power monitoring board (OPM) has a variety of types, can be used in offline real-time alarm test and online real-time alarm test; by monitoring optical power, the purpose of real-time alarm test can be achieved

Explore Further

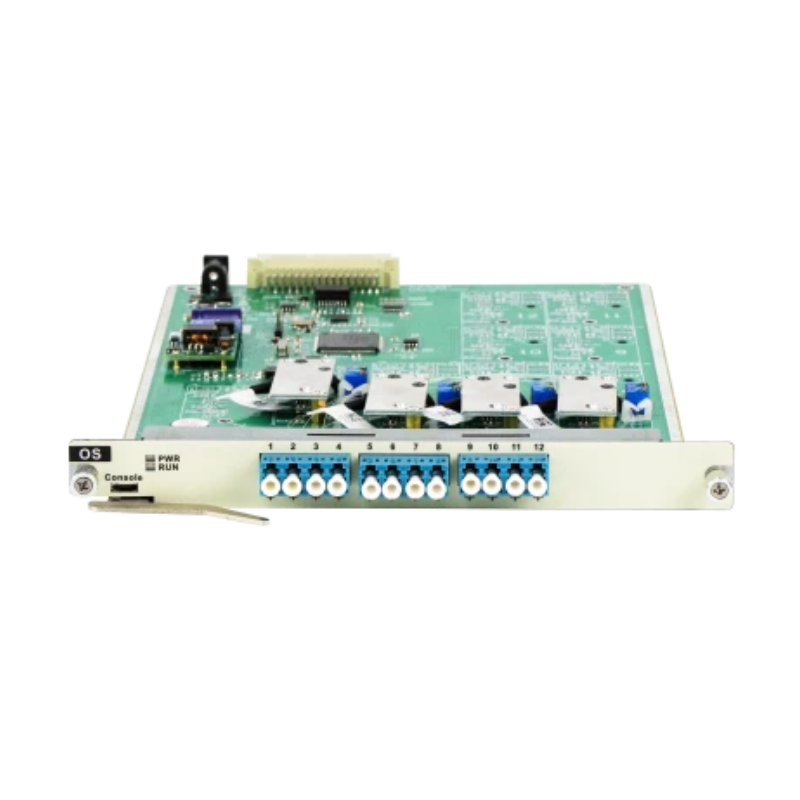

OS Card

optical source

Explore Further

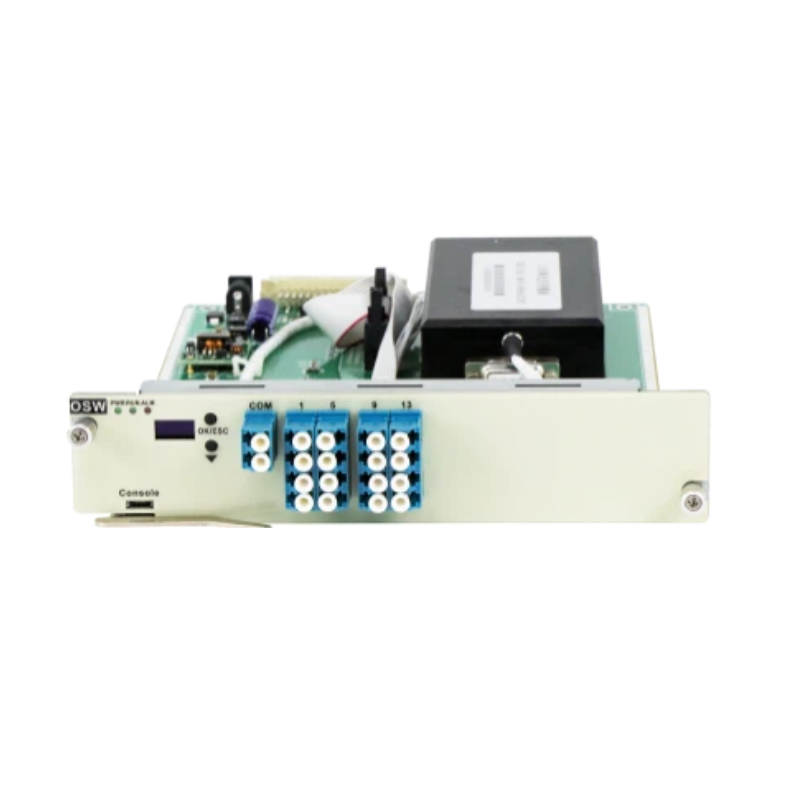

OSW Card

An optical switch is a light path control device that manages and redirects optical signals. It plays a vital role in optical communication applications. Key applications include: multi-channel optical monitoring in transmission systems, automatic switching of multiple light sources/detectors in LANs, and dynamic monitoring systems for optical sensing. In fiber optic testing systems, it is used for evaluating fibers, optical components, network cables, and field engineering cables, as well as for equipment installation and commissioning

Explore Further

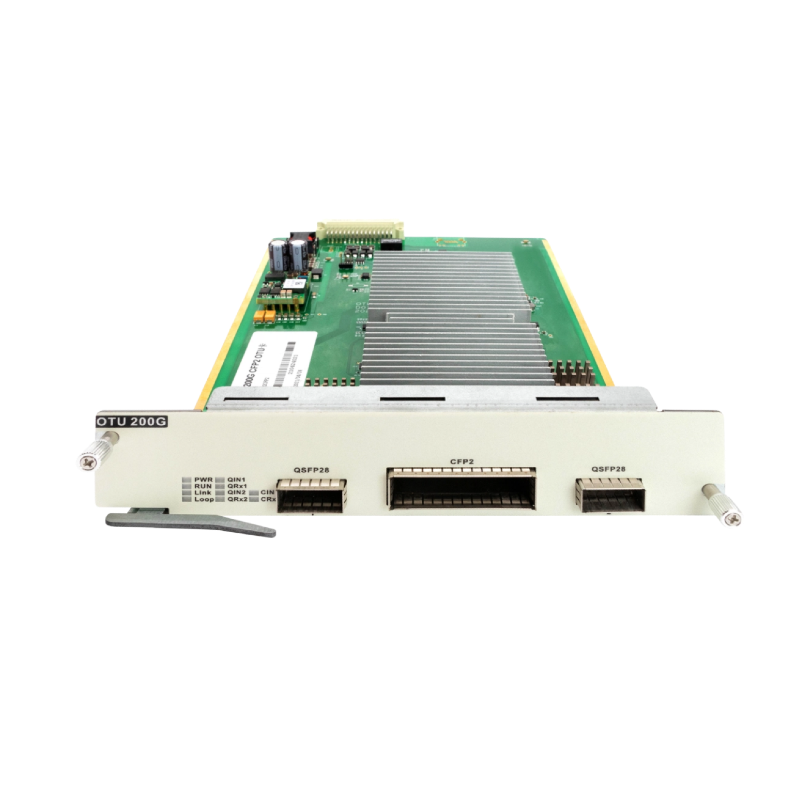

200G Coherent TMUX: 1*CFP2+2*QSFP28

200G Coherent TMUX: 1CFP2+2QSFP28

The 200G coherent TMUX service card supports two 100GE service access, adopts advanced technologies such as QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and non-linearity. It can realize 200GE business over 1200 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.

Explore Further

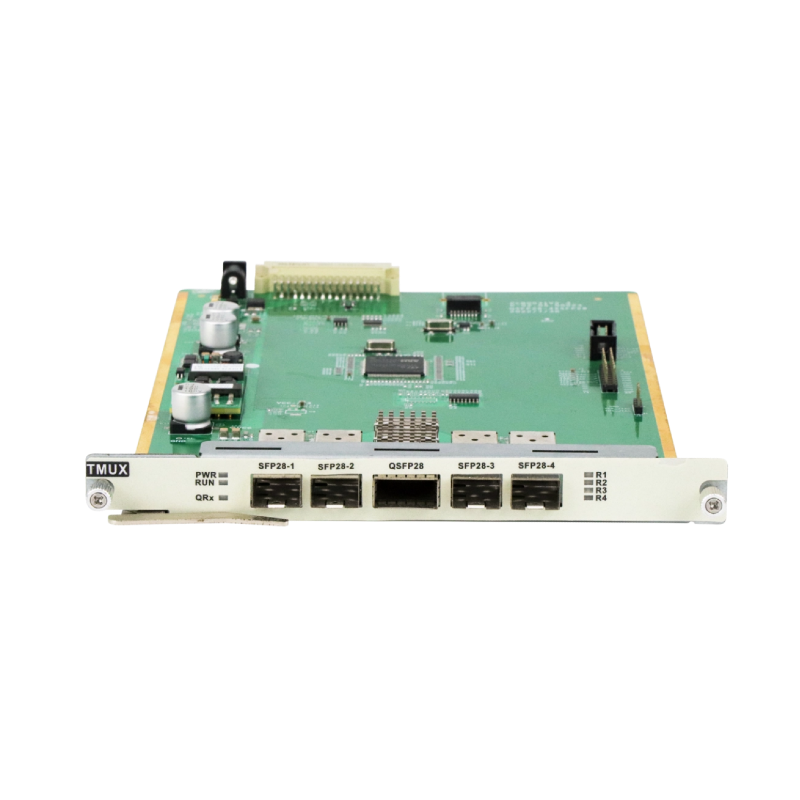

40G&100G TMUX: 4*SFP28↔QSFP28

40G&100G TMUX: 4*SFP28↔QSFP28

The 40G&100G incoherent muxponder service card supports 4x10G↔40G or 4x25G↔100G electrical layer multiplexing/demultiplexing, and transforms the multiplexed/demultiplexed optical signals into WDM standard wavelength optical signals. It can facilitate the wavelength division multiplexing of the optical signals of different wavelengths by mux unit, and simultaneously implement the inverse process of the above process. It’s suitable for 10G~25G forward multiplexing or 40G/100G inverse multiplexing wavelength division short-distance transmission solution.

Explore Further

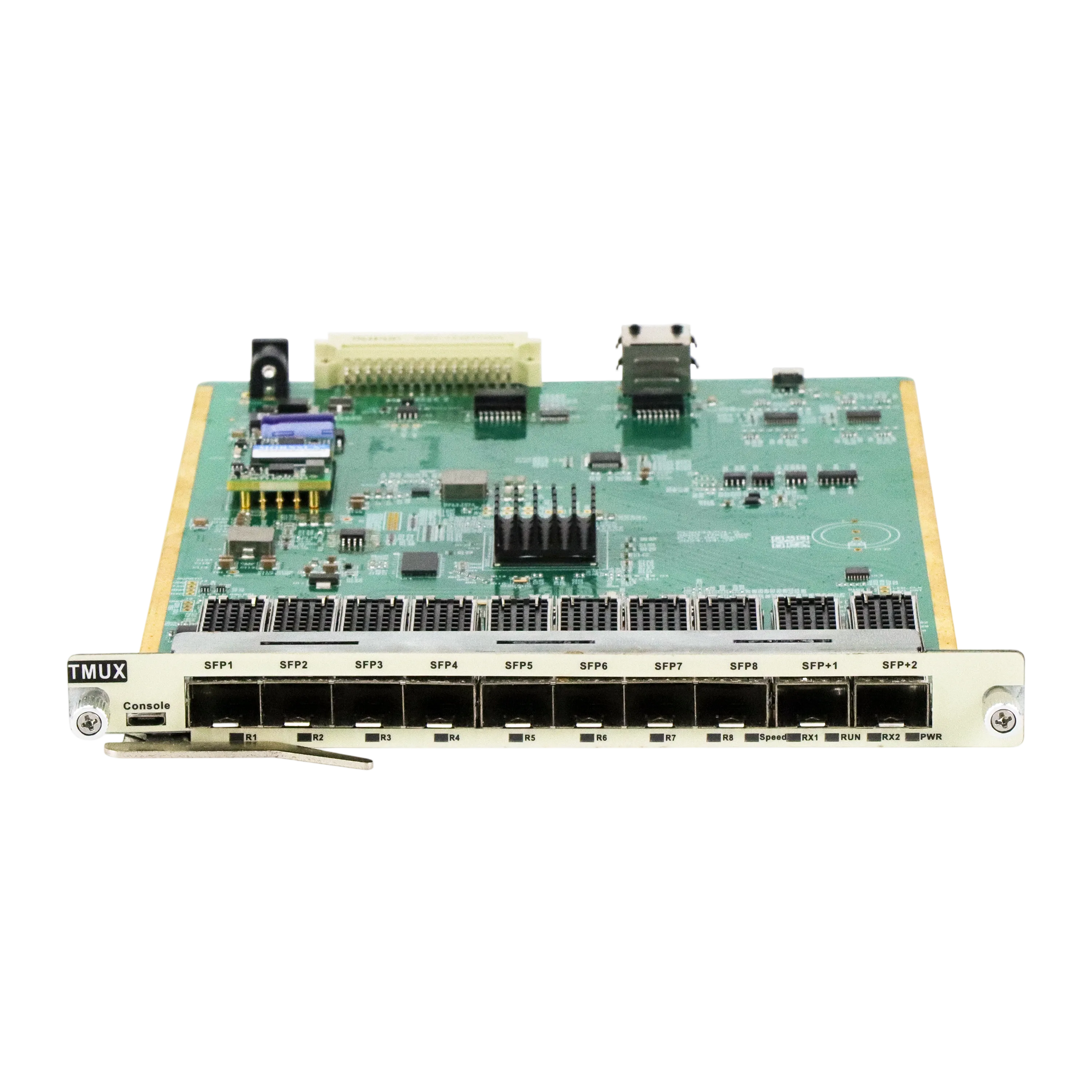

10G TMUX: 8*1.25G↔10G

10G TMUX: 8*1.25G↔10G

The 10G incoherent muxponder service card supports supports 8*100mbps port converging one 10G port or 8*1.25gbps port converging one 10g port, and can convert the multiplexed/demultiplexed optical signals into WDM standard wavelength optical signals, so as to facilitate the wavelength division multiplexing of optical signals of different wavelengths by the combining unit, and realize the reverse process of the above process. It is suitable for 10G forward multiplexing in metropolitan area.

Explore Further

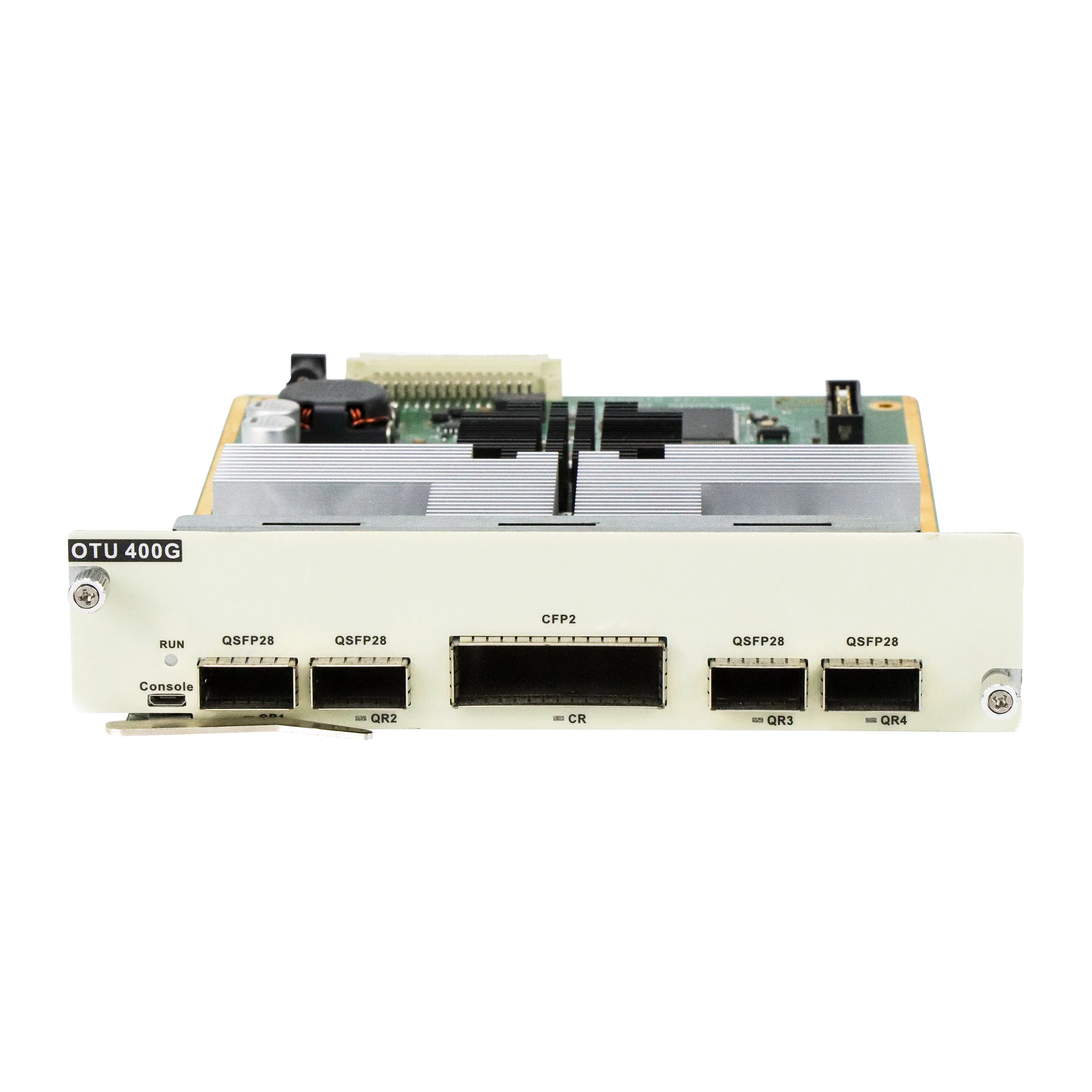

400G Coherent TMUX:1*CFP+4*QSFP28

400G Coherent TMUX:1CFP+4QSFP28

The 400G coherent TMUX service card supports four 100GE service accesses, adopts advanced technologies such as 16QAM modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and non-linearity. It can realize 400GE business over 400 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.

Explore Further

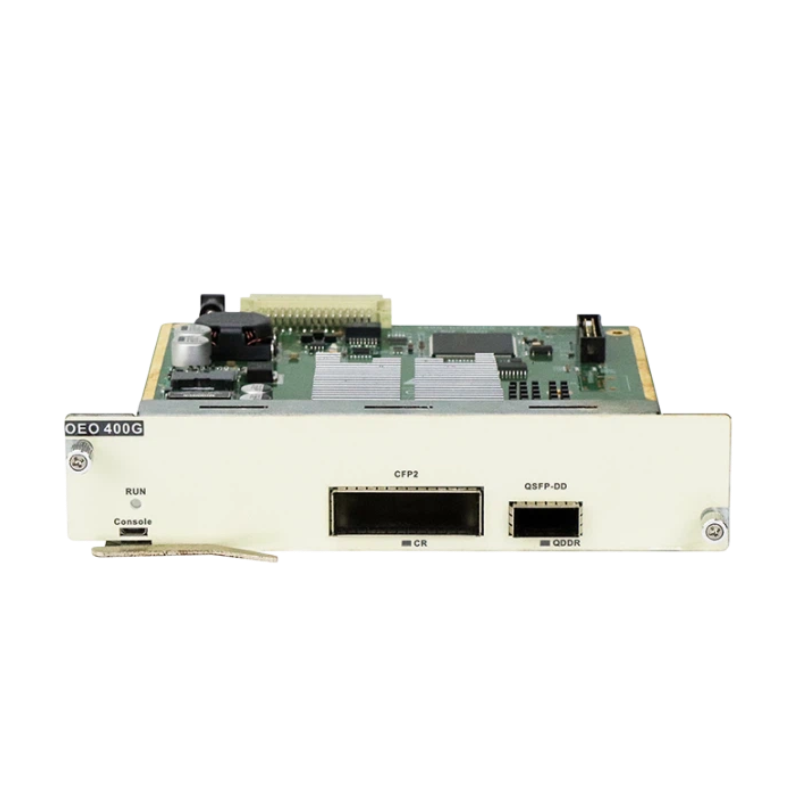

400G Coherent OEO: 1*CFP2+1*QSFP-DD

400G Coherent OEO: 1CFP2+1QSFP-DD

The 400G coherent OTU service card supports one 400GE service accesses, Its main function is to perform one 400GE service signals that are accessed, and can be transformed into three WDM standard wavelength optical signal, so that the multiplexer unit performs wavelength division multiplexing on optical signals of different wavelengths, and at the same time implements the inverse process of the above process.It can realize 400GE business over 400 kilometers of non-relay transmission, and the line side interface supports 80-wave tunable.

Explore Further

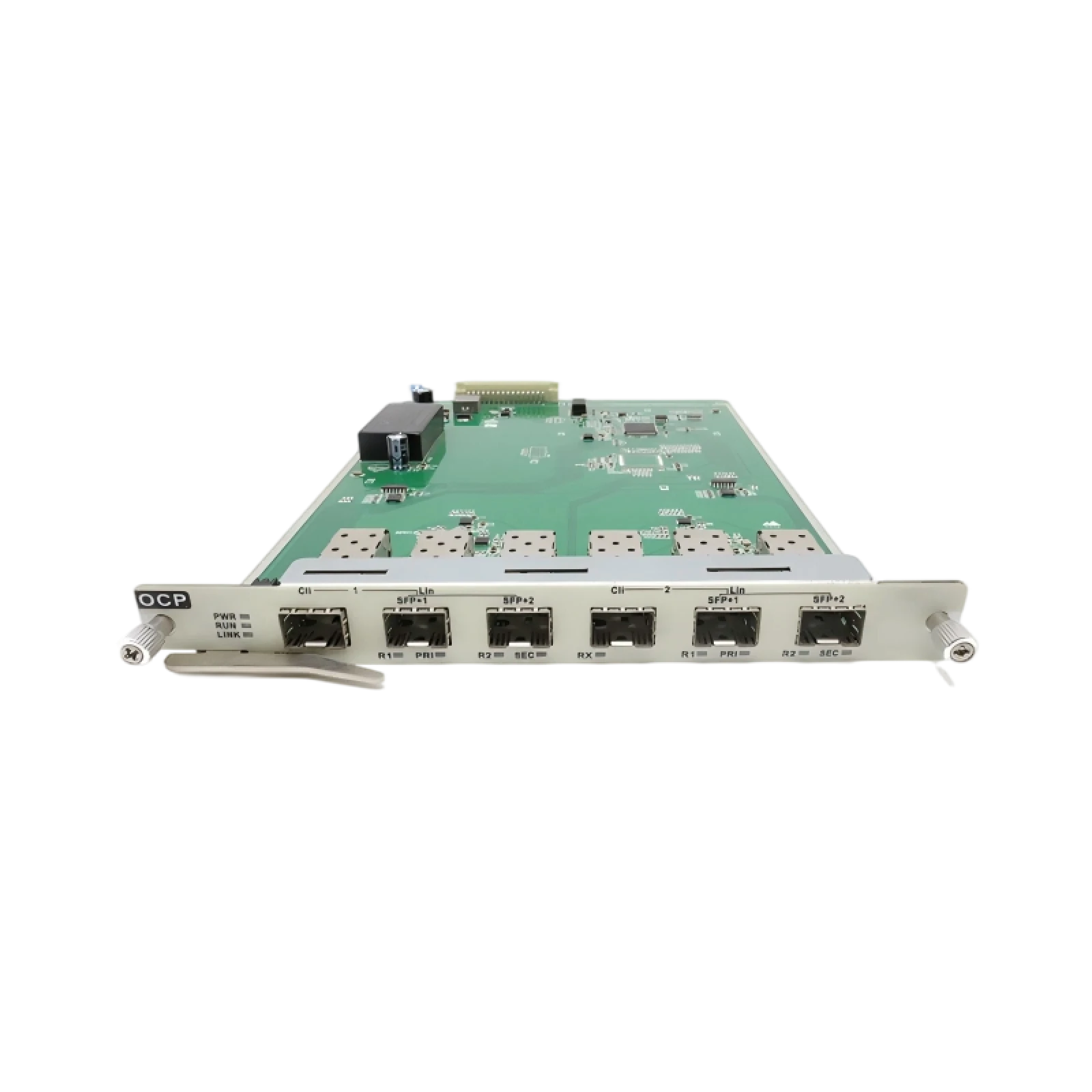

10G OCP: 10G protection OEO Card

10G OCP: 10G protection OEO Card

The 10G protection OEO Card is an optional part of WDM system, which is mainly used in line protection and ring network protection networking. At the transmitting end, one optical signal is divided into two identical signals, which are transmitted through different specific wavelengths or different lines. At the receiving end, the signals of two specific wavelengths or different lines are received and sent to the subsequent processing according to the signal quality, which is the process of double transmitting and selective receiving.

Explore Further

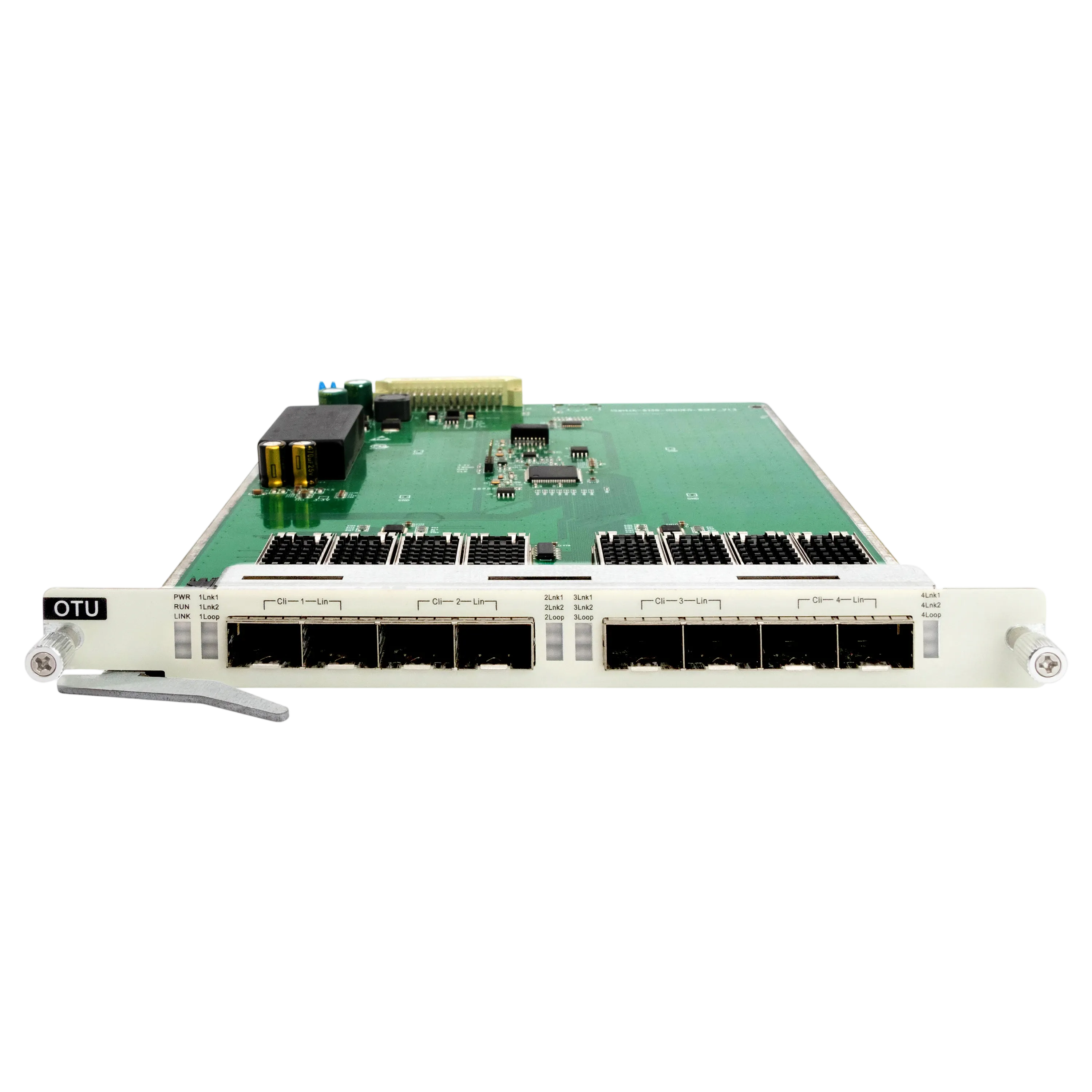

10G OEO: 8*SFP+

10G OEO: 8*SFP+

The 10G incoherent OEO service card supports four types of service access with 42M~11.3G rates. Its main function is to finish the 3R regeneration of any 4-channel signals under any protocol within the rate of 1.25 Gbit/s~11.3 Gbit/s to be accessed, and then convert them to optical signals of a standard DWDM wavelength or standard CWDM wavelength, so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above process. It’s applicable to the wavelength division transmission solution for any access of services with the rate of 11.3G or below.

Explore Further

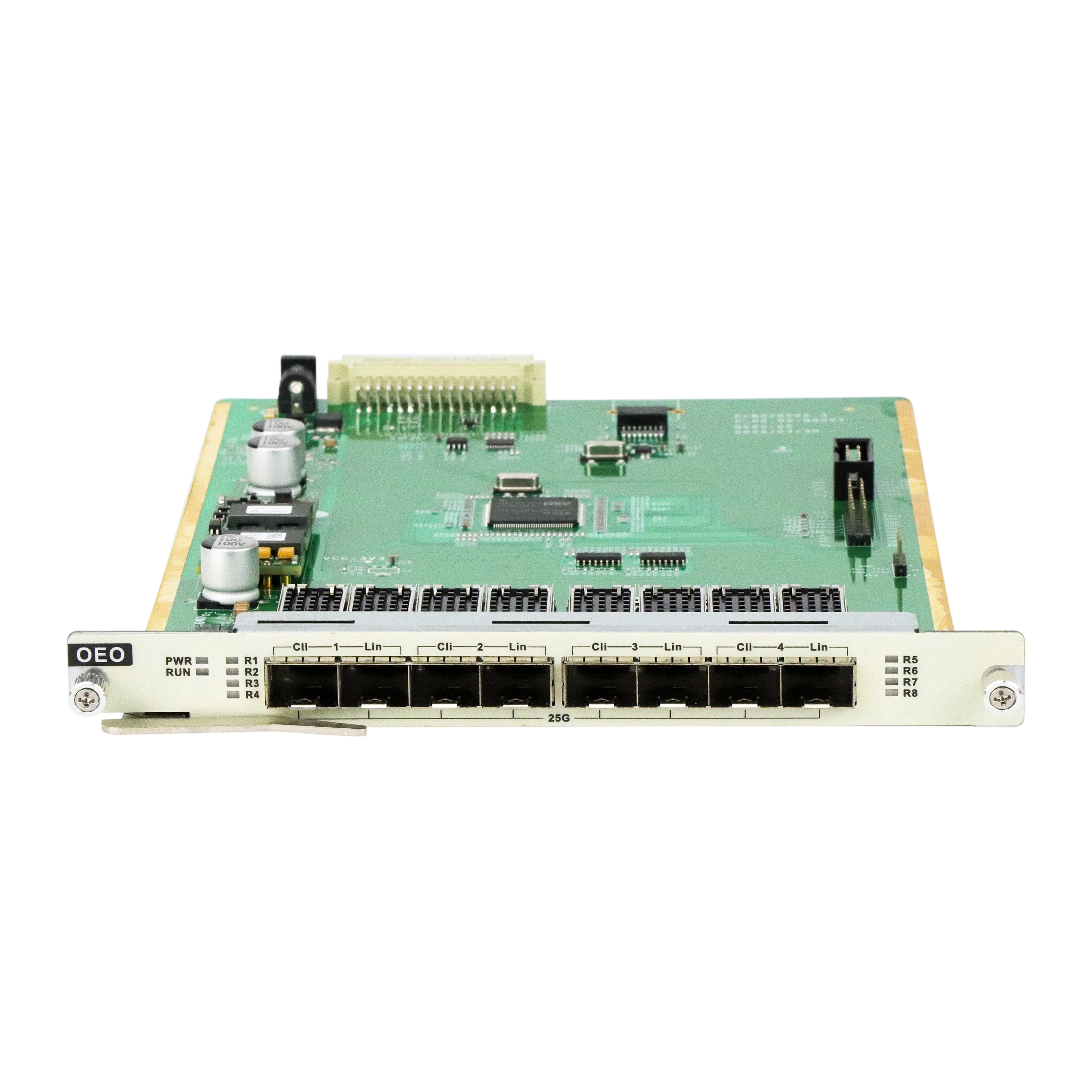

25G OTU: 8*SFP28

25G OTU: 8*SFP28

The 25G incoherent OEO service card supports four types of service access with 16 to 32G rates. Its main function is to finish the 3R regeneration of any 4-channel signals under any protocol within the rate of 25 Gbit/s to be accessed, and then convert them to optical signals of a standard DWDM wavelength or standard CWDM wavelength, so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above process. It’s applicable to the wavelength division transmission solution for 25GE rate services, and compatible with 16G or 32G FC.

Explore Further

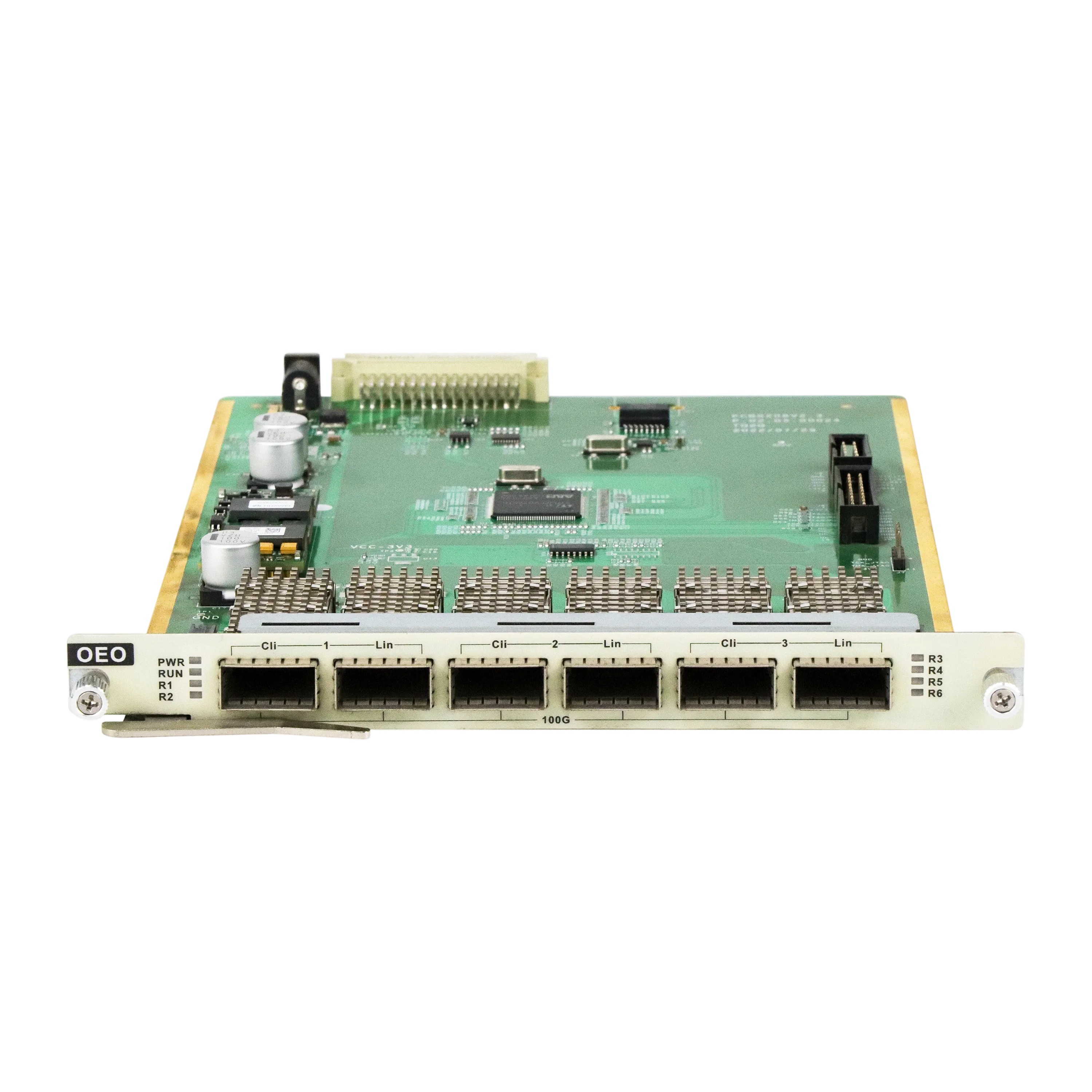

40G&100G OEO: 6*QSFP28

40G&100G OEO: 6*QSFP28

The 40G&100G incoherent OEO service card supports three 40GE or 100GE bilingual service access. Its main function is to perform 3R regeneration of three 40GE or 100GE service signals that are accessed, and can be transformed into three WDM standard wavelength optical signal, so that the multiplexer unit performs wavelength division multiplexing on optical signals of different wavelengths, and at the same time implements the inverse process of the above process. It’s suitable for short-range transmission of wavelength division in metro areas at 40G or 100G rates.

Explore Further

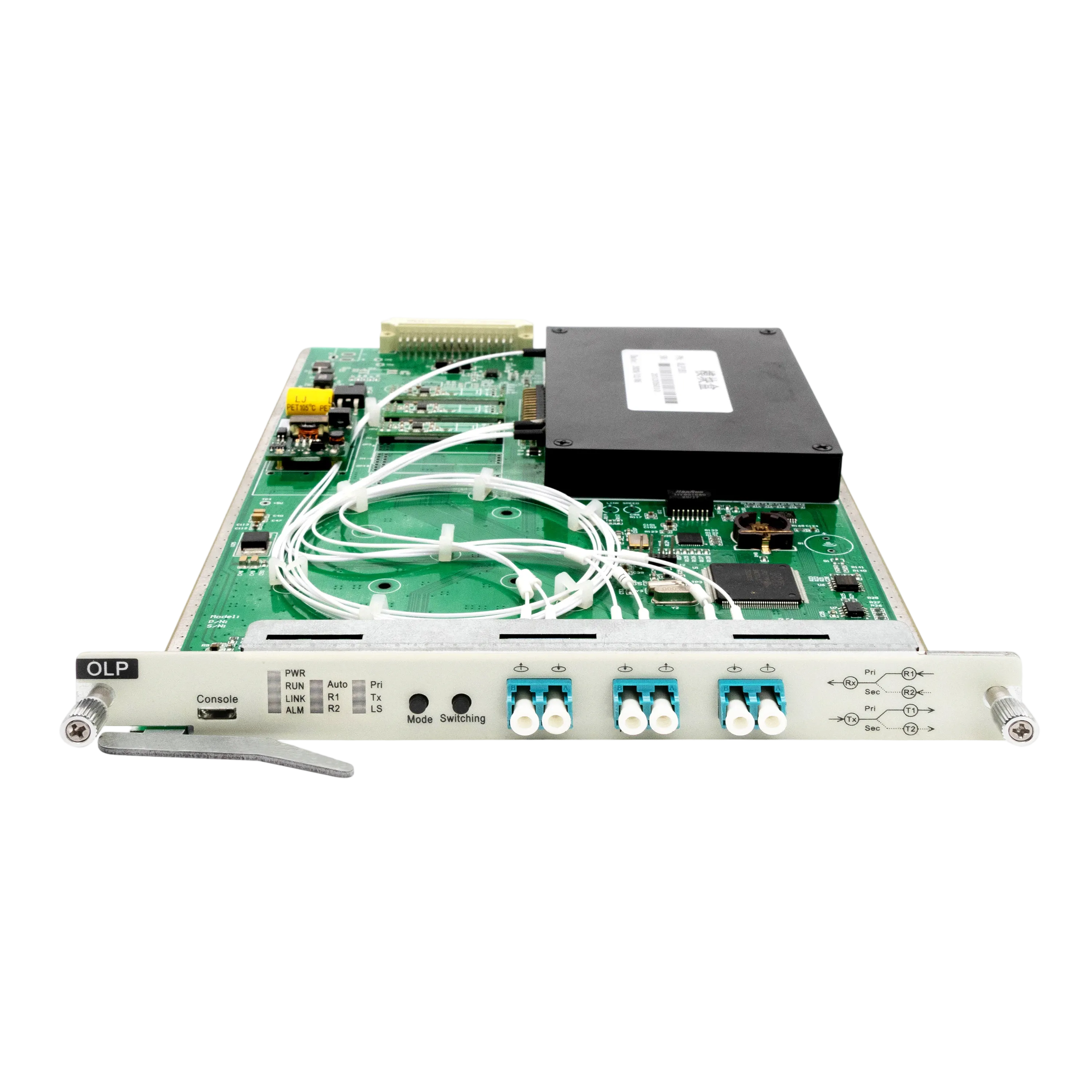

OLP: Optical Line Protection Card

OLP: Optical Line Protection Card

OLP optical protection card is to assist the wavelength division system to complete optical layer protection solutions such as optical line 1+1/1:1 protection and optical wavelength 1+1/1:1 protection. It can monitor the primary and backup routing optical paths in real time. In the event that the fiber core is blocked or degraded in performance, it can implement the secure rearrangement automatically in the main and standby fiber core, so as to guarantee optical signals in the system line to recover quickly. OLP technology is to complete the routing switch operation in optical layer. The optical layer protection has the incomparable advantages over the protection of upper services, and it is the best solution to provide the user with an uninterrupted communication.

Explore Further

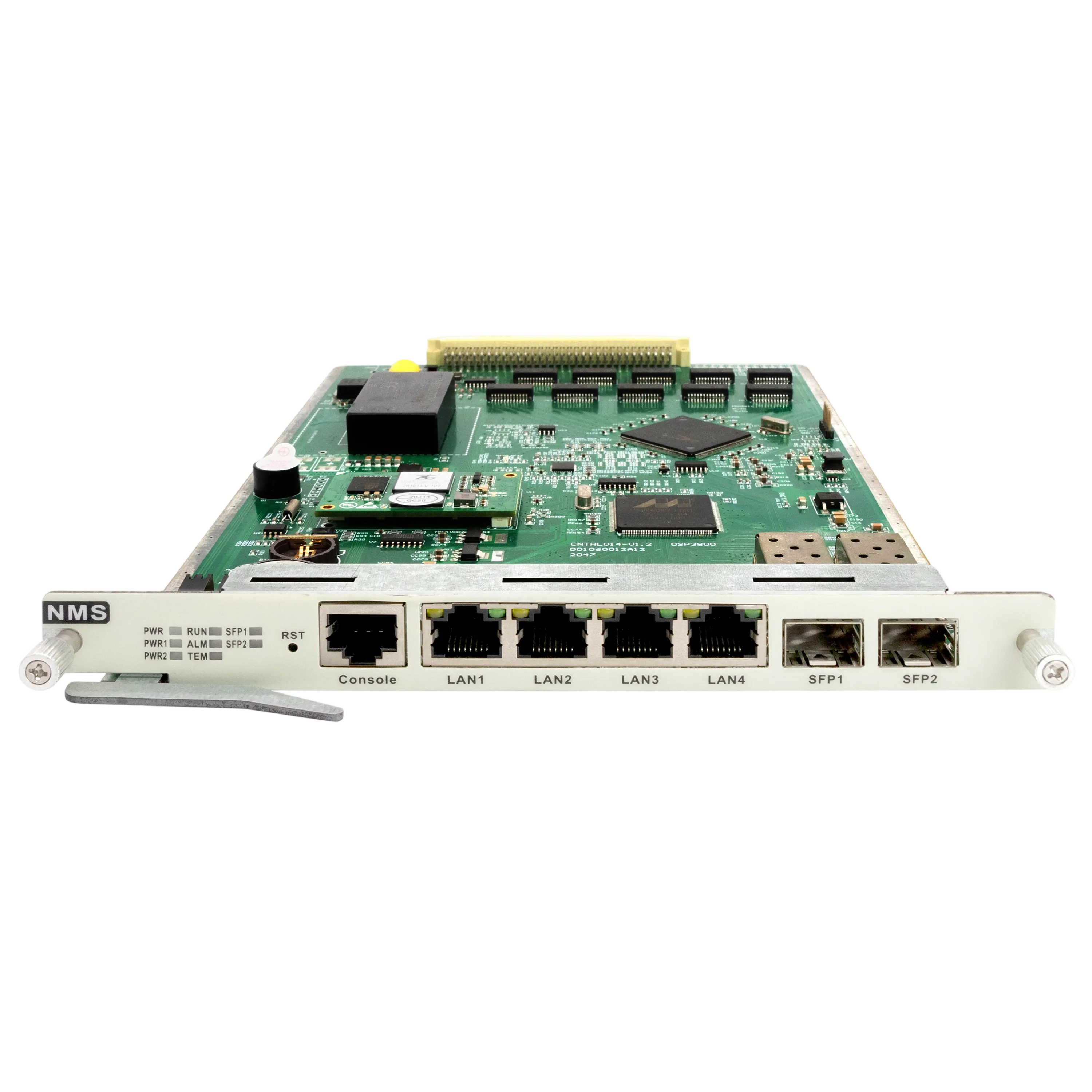

NMS: Network Control Management Card
