Home >   Products >   OSP3800 DWDM/OTN 1U Transmission Platform

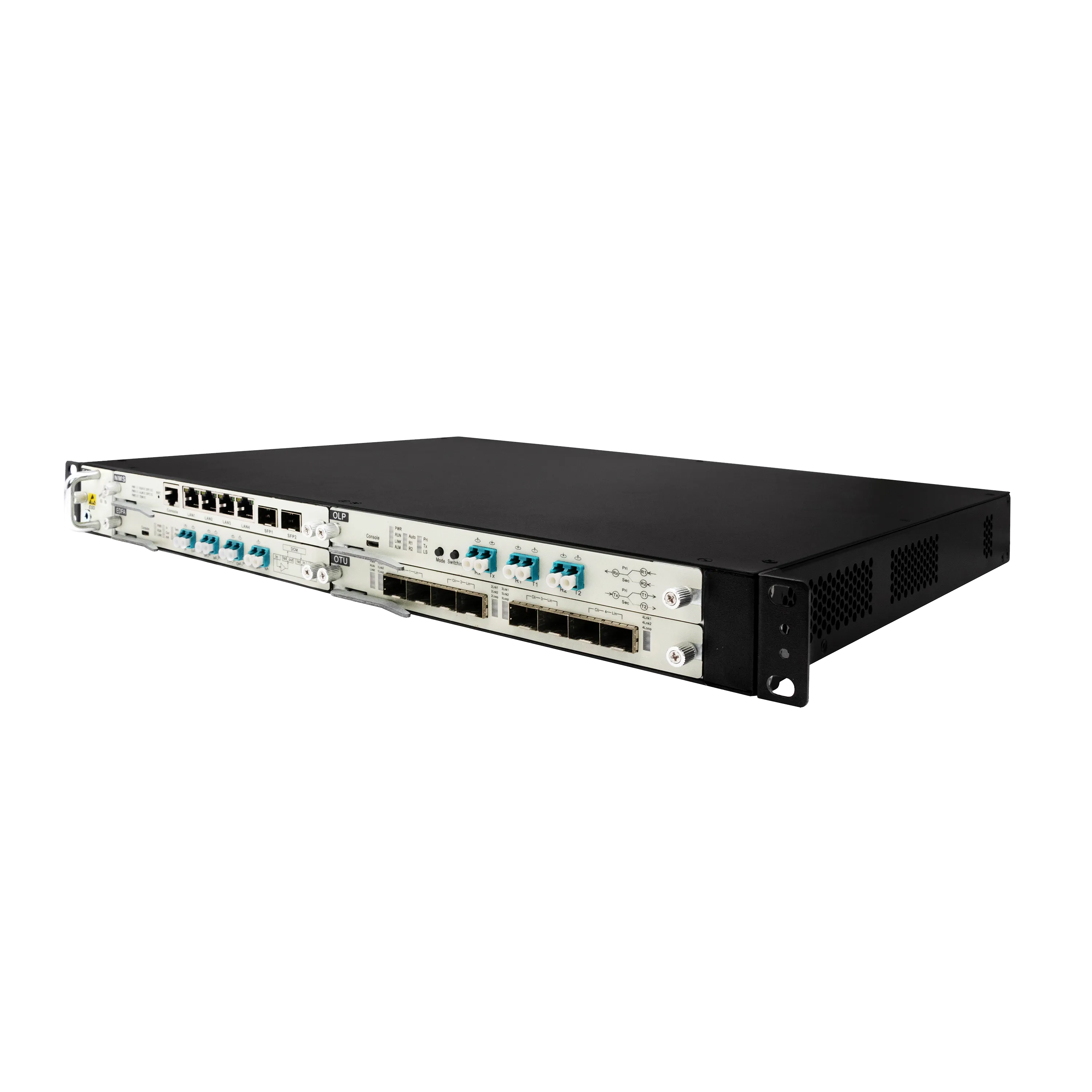

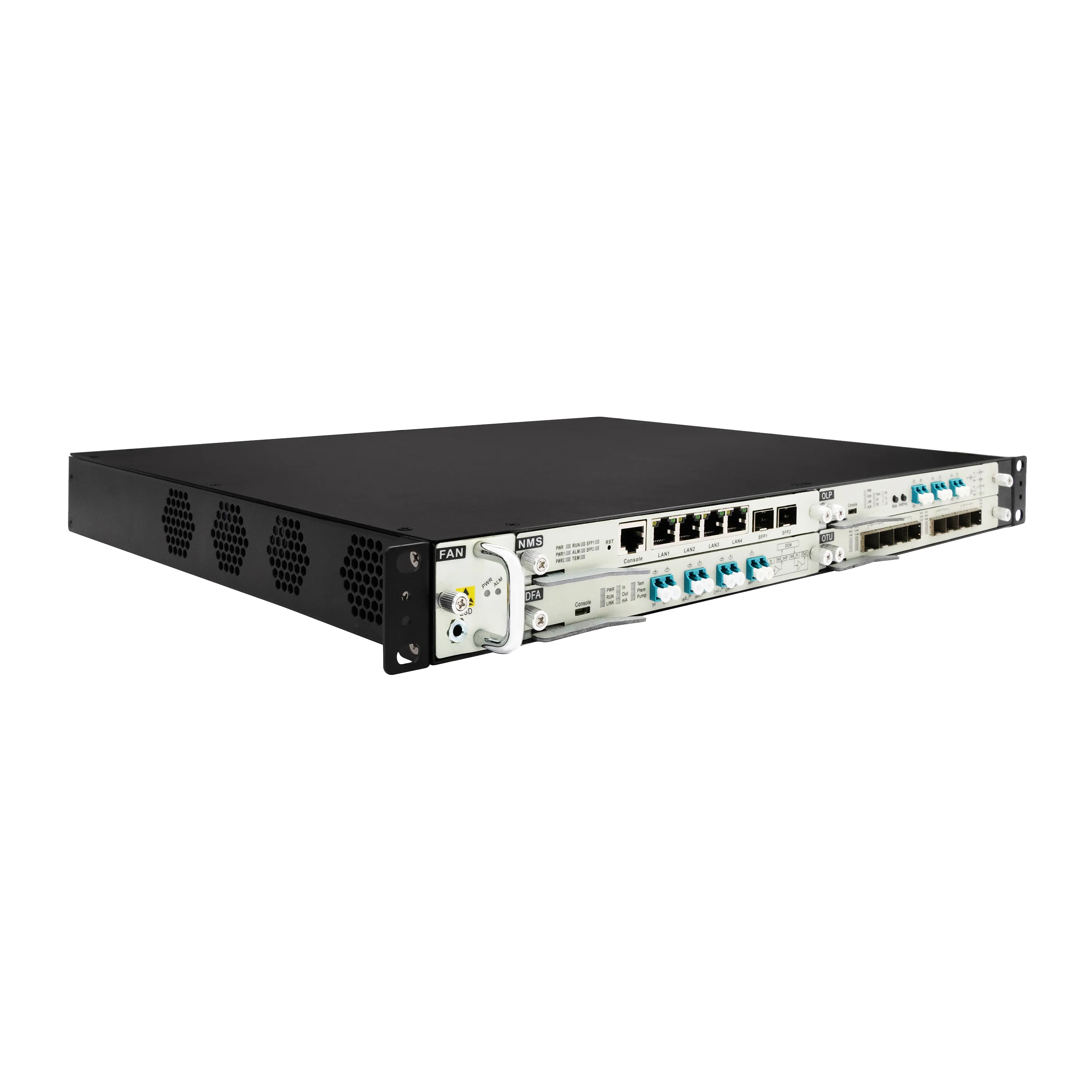

OSP3800 DWDM/OTN 1U Transmission Platform

Part of the DWDM/CWDM/OTN transmission

The OSP3800 series products use advanced transmission technology and high integration technology to support single-channel transmission rate from 100Mbps to 400Gbps, and provides wide bandwidth, large capacity and fully transparent transmission for 800Gbps expansion, enabling smooth upgrade of capacity. It provides a stable platform for multi-service operation and future network upgrade and expansion. It is widely used in operators, broadcasting, IDC, finance, government, cloud network, big data and other industries.

Get A Quote Now
Network Positioning Product Features Technical Specifications Related Euipment Related Download
Network Positioning@1x.webp

Product Features

• Huge capacity transmission

Supports 96×400G ultra-large capacity transmissions, that is single fiber transmission capacity up to 38.4Tb/s, and support 80/96×10G/100G/200G/400G hybrid transmission, supporting smooth upgrade from 40 waves to 80 waves, 48 waves to 96 waves. It ensures low investment and smooth expansion in the early stage of network construction to meet the growing bandwidth demand in the future.

• Excellent 400G transmission performance

400G system adopts 16QAM coding technology for coherent detection, supports oFEC, B2B OSNR tolerance index is excellent, adopts industry advanced DSP processing technology, dispersion tolerance is 26000 ps/nm, and supports 400 km or more of non-electric relay transmission. Save investment and greatly facilitate operation and maintenance.

• Flexible and comprehensive service access capability

Supports 100M-100G any service access: CPRI1~10, eCPRI, FE/GE/10GE/25GE/40GE/100GE, FC 1G~32G, STM-N, OTU1/2/3/4, etc. Transparent transmission reduces the cross-transmission delay of the circuit.

• Telecommunications reliable protection

Supports multiple network protection schemes such as optical layer 1+1 channel protection and optical line side 1+1 protection, providing multiple protection for important equipment units and optical fiber lines. Support AC 220V, DC -48V power supply, 1+1 power protection.

• Excellent structure, convenient and easy to maintain

It adopts 1RU, 2RU, 3RU 5RU standard 19-inch rack design, completely configuration-free installation, device plug-and-play, and unified network management platform, providing complete network and equipment performance monitoring capabilities.

Technical specifications

FunctionDescription
Product modelOSP3800-CH04

Equipment Size

(W × D× H, mm)

1RU: (back-power supply)

442(W)×350(D)×44(H)mm

Service slot4 slots
Power consumption225W (Max)
Max channel numberCWDM: 18 wavelength, DWDM: 96 wavelength(50GHz)
Single channel max rate400Gbit/s
Line side rate1.25Gbit/s, 2.5Gbit/s,10Gbit/s,25Gbit/s,40Gbit/s,100Gbit/s,200Gbit/s,400Gbit/s
Support service

• STM-1/4/16/64/256、OC-3/12/48/192/768

• OTU-1/2/3/4

• FE/GE/10GE/25GE/40GE/100GE

• FC 1G/2G/4G/8G/16G/32G

Clock featuresSupport IEEE 1588V2
Network topologyPoint to point, chain type, star type, ring type
Network level protectionOptical channel 1+1 protection, optical multiplex 1+1 protection, optical line 1+1 protection
Equipment level protectionPower supply backup
Network managementSNMP, Web, CLI, Telnet
Installation

19"and 23" cabinets, ETSI 600mm cabinets

Wireless outdoor base station cabinet, FTTX outdoor cabinet, hanging wall

Working temperature range-10℃～60℃
Working humidity range5~95% no condensation
Storage temperature range-40℃～85℃
Heat dissipationFan cooling
Power supply modeAC: 90 ~ 260 V or HDC:127~370 V or DC:-72 ~ -36 V
