Home >   Products >   WSS09 1*9 ROADM Card

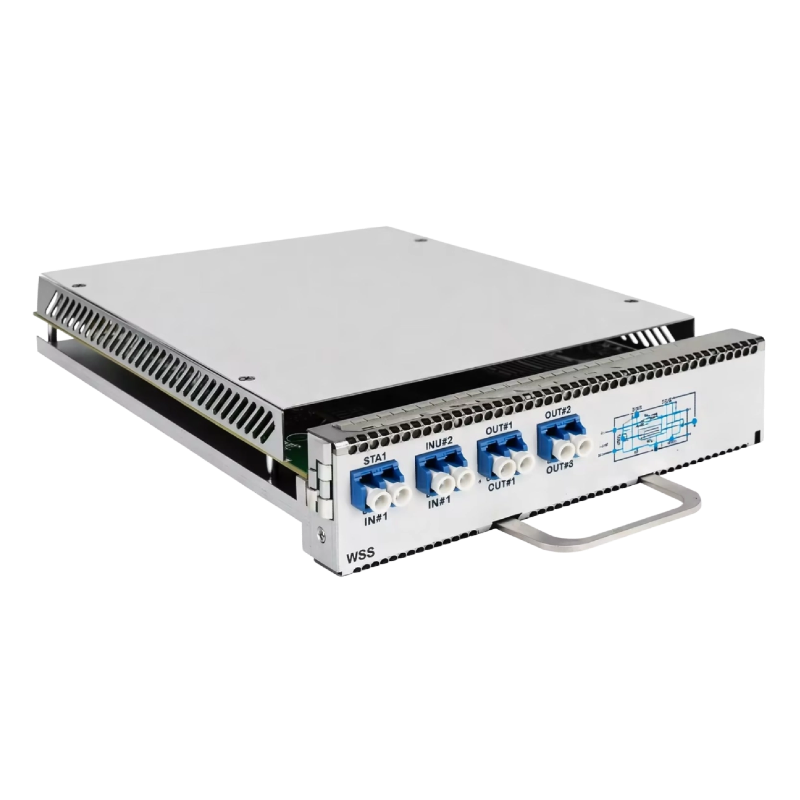

WSS09 1x9 ROADM Card-1.png
WSS09 1x9 ROADM Card-1.png

WSS09 1*9 ROADM Card

Part of the DWDM/CWDM/OTN transmission

The 1x9 ROADM is a compact solution designed for all network types, enabling dynamic traffic design and seamless wavelength routing changes. As a building block for reconfigurable 9D splitters, the 1x9 ROADM features nine independent ports. Port addition utilizes wavelength selection switches (WSS) to dynamically select from 96 DWDM channels on the ITU-T 50 GHz C-band grid for each port's input signal.The card occupies only 1/4 standard slot capacity.

Get A Quote Now
Typical Applications Technical Specifications Related Euipment Related Download

Technical specifications

Performance ParameterQualificationUnit
Channel Wavelength1528.773~1566.73nm
Channel Spacing50/100Ghz
Channel Spectrum WidthN*12.54≤N≤12Ghz
Channel Passband＞ 0.3nm
Insert Loss Flatness＜0.5 dB
Insertion Loss(Add 1~9 to BA input)6.3 7.58.1(dB)
(PA output to Drop 1~9)6.37.58.1(dB)
Channel SeparationNearest values25dB
Nonadjacent values35
dB
Polarization-related Loss<0.15dB
VOA Dynamic Range0~15dBdB
VOA Sets Resolution0.1dB
VOA Setprecision@0~10dB damping±1dB
@>10dB damping±1.5
Directivity>50dB
Return loss>45dB
Response Time< 2dB step＜1400ms
< 15dB step＜2000
Port switching＜3000
Size216 (W) * 262 (D) * 40 (H) mm
Working Temperature-10℃～+60℃℃
Storage Temperature-40℃～+85℃℃
Relative Humidity5%~95% Non-condensing
Power Dissipation≤80 W
