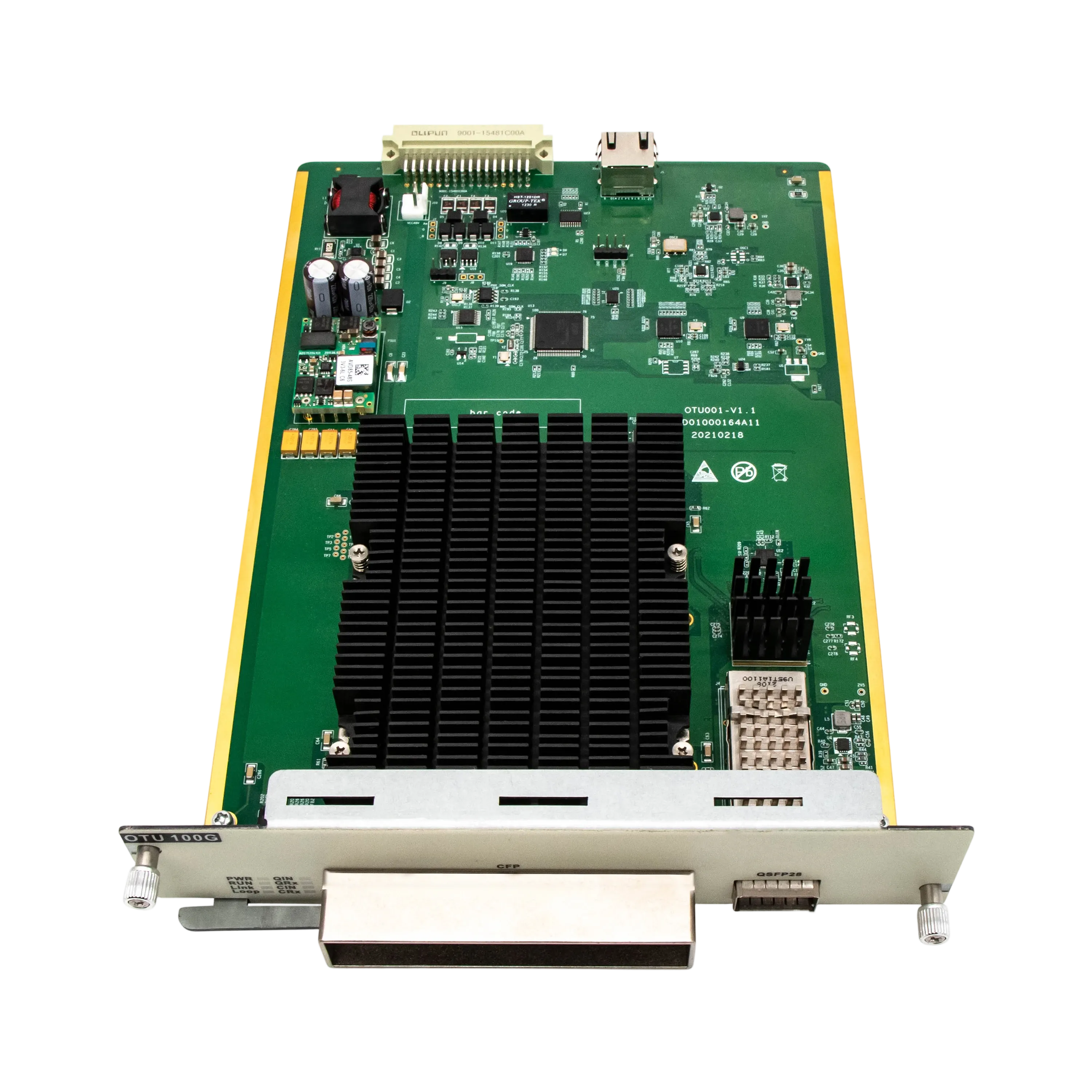

IMG_4893 拷贝.webp

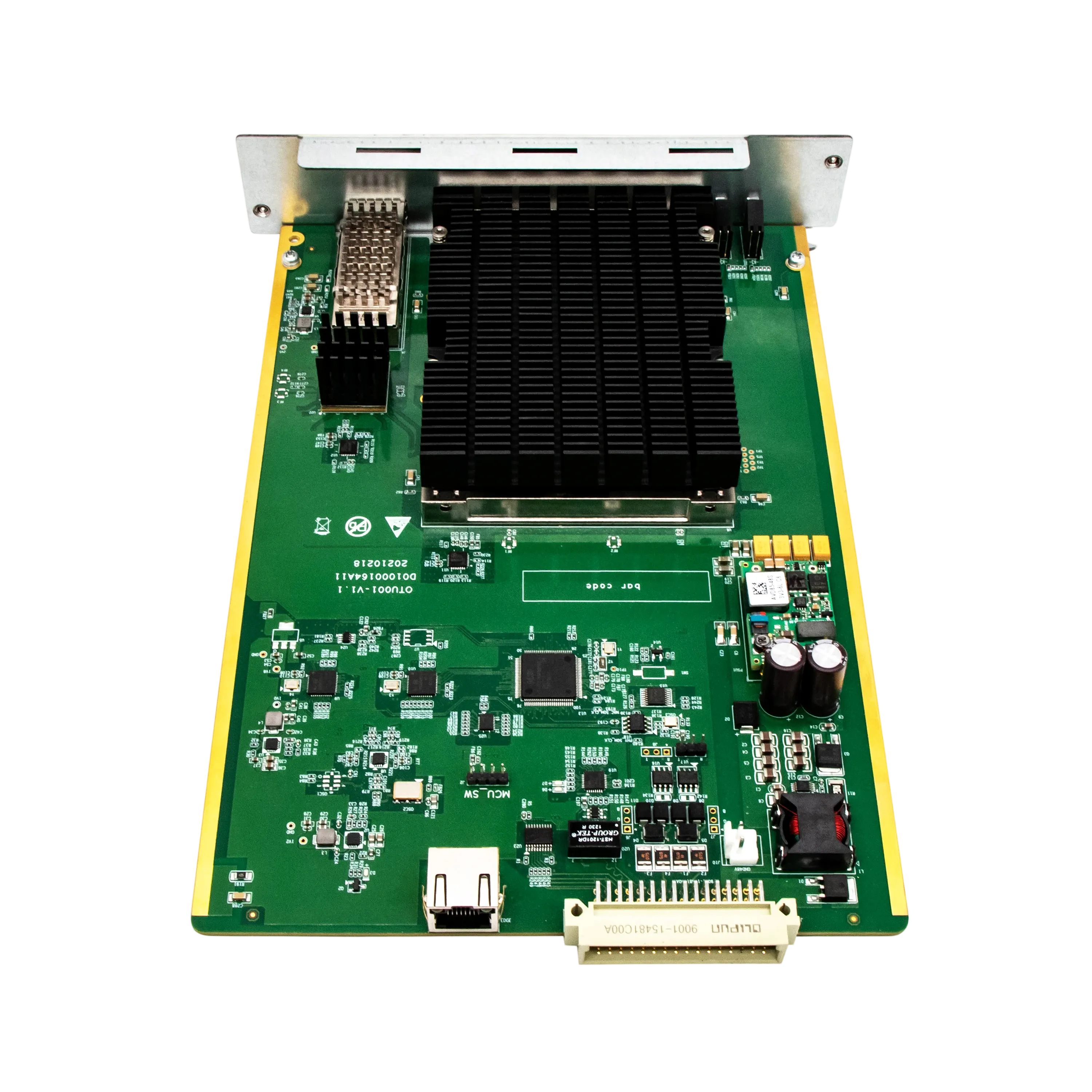

IMG_4890 拷贝.webp

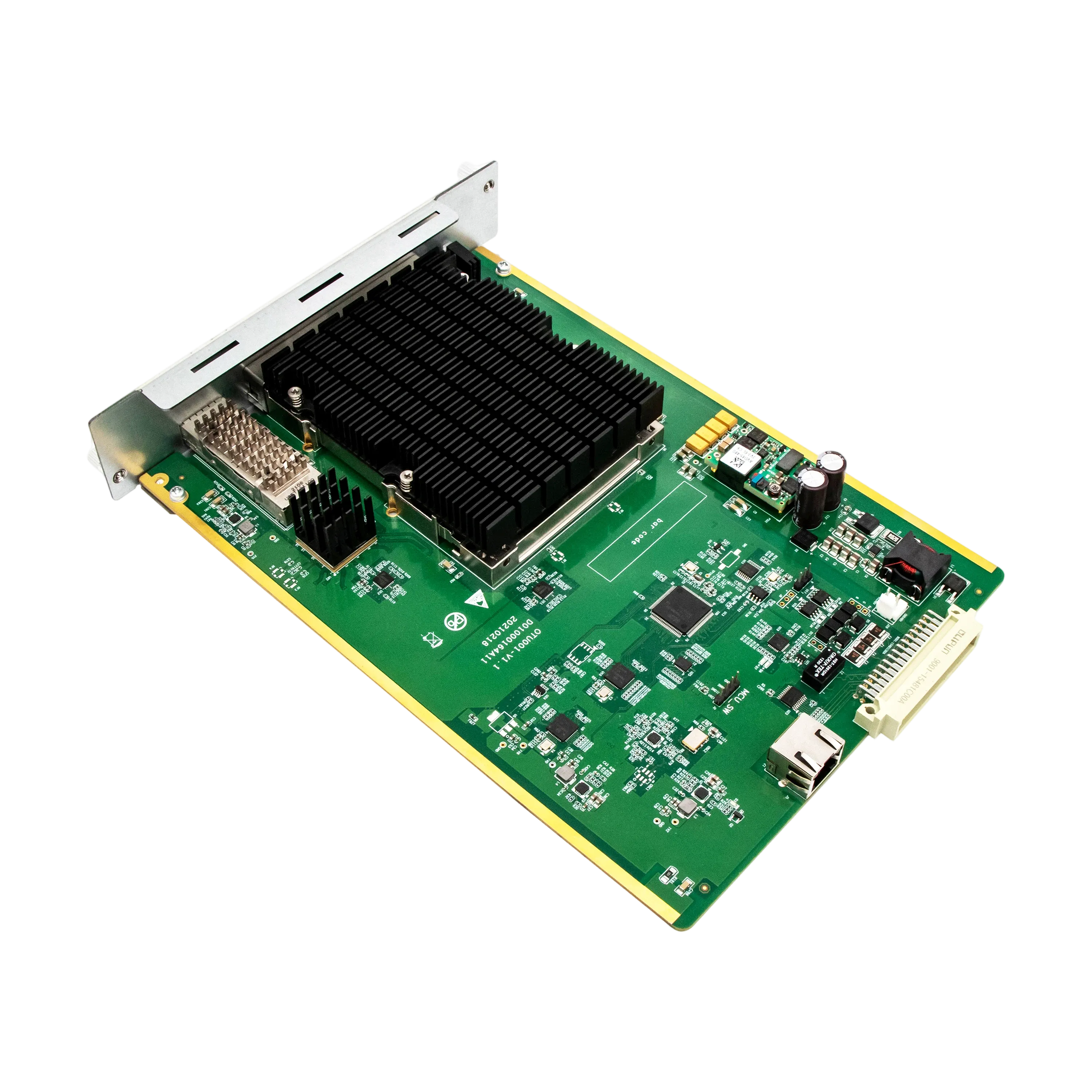

IMG_4891 拷贝.webp

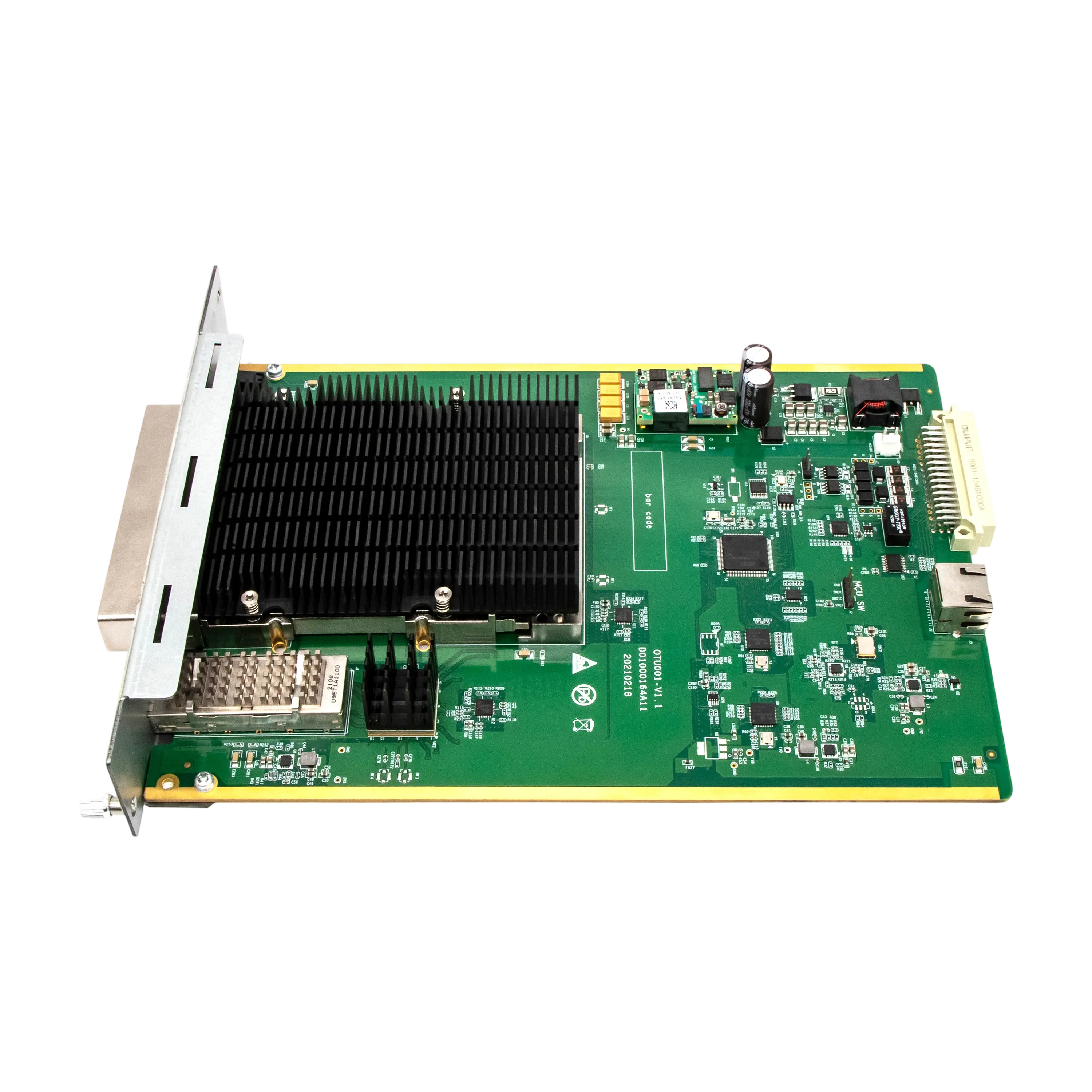

IMG_4892 拷贝.webp

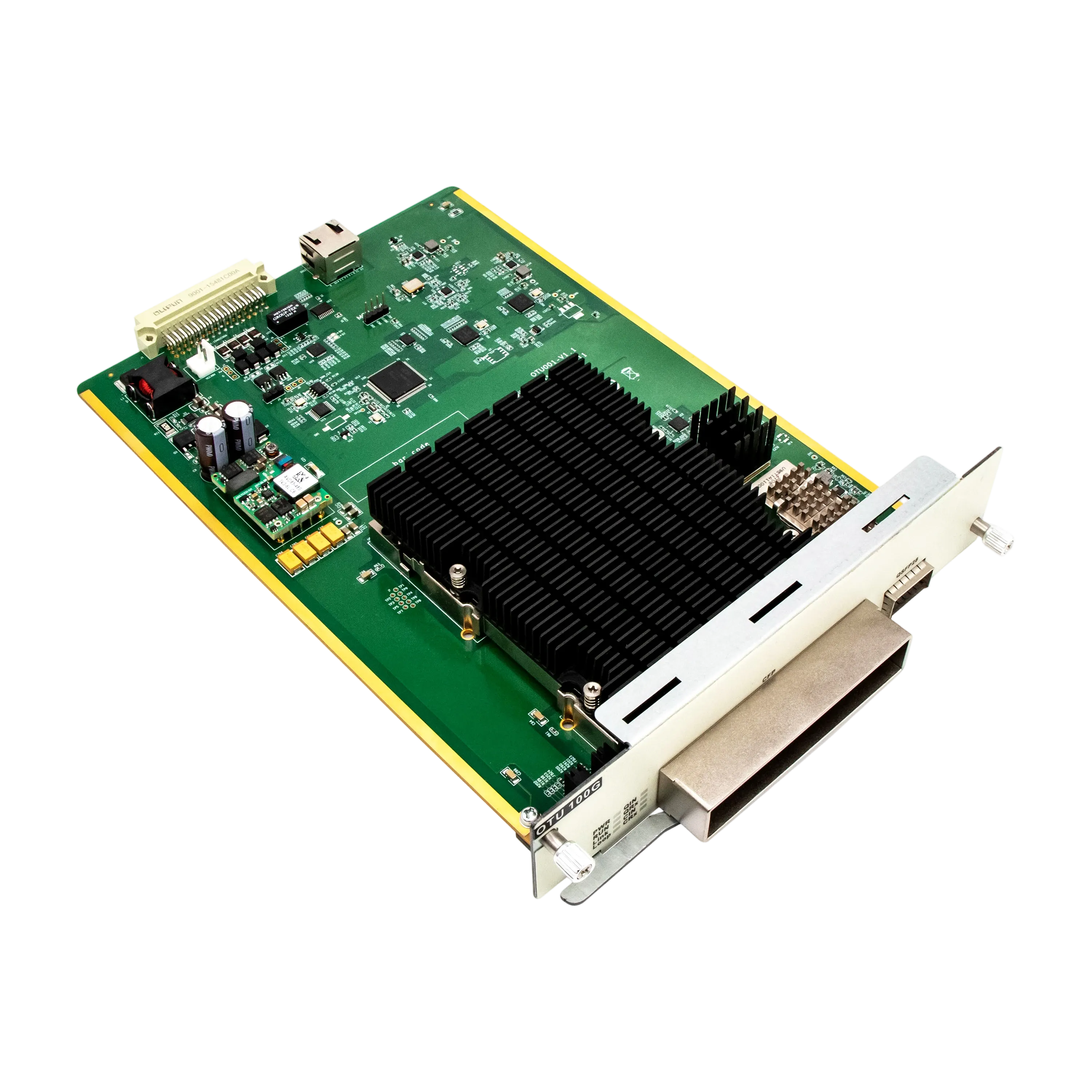

IMG_4889 拷贝.webp

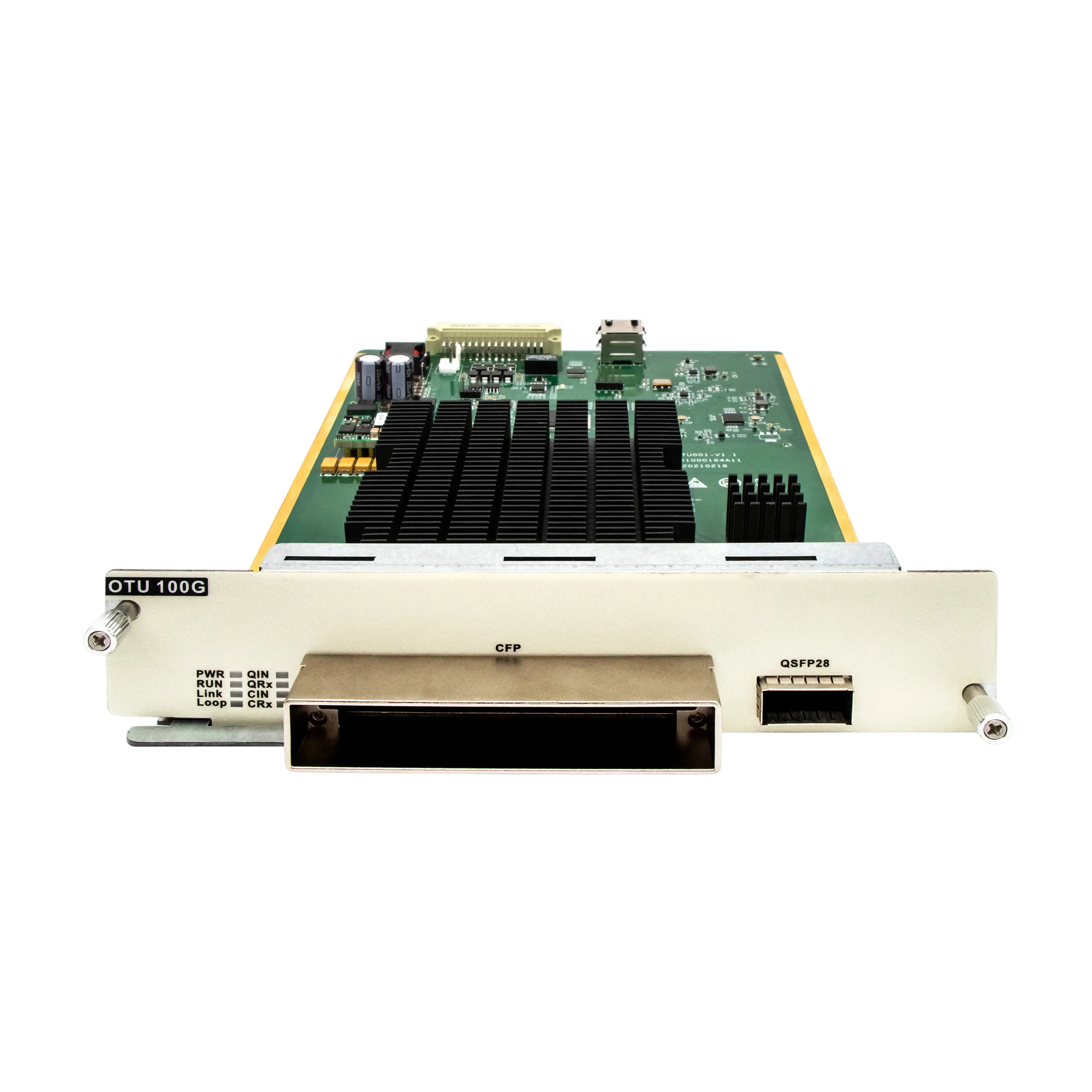

IMG_4887 拷贝.webp

IMG_4893 拷贝.webp

IMG_4890 拷贝.webp

IMG_4891 拷贝.webp

IMG_4892 拷贝.webp

IMG_4889 拷贝.webp

IMG_4887 拷贝.webp

100G Coherent OEO: 1CFP+1QSFP28

Part of the DWDM/CWDM/OTN transmission

The 100G coherent OEO service card supports one 100GE service access, adopts advanced technologies such as QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and non-linearity.

It can realize 100GE business over 1600 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.

Get A Quote Now

Typical Applications Technical Specifications Related Euipment Related Download

容器 28@1x.webp

Technical specifications

Function	Description
Interface	• Client-side interface: 1 QSFP28 hot-plugging • WDM-side interface: 1 100G CFP hot-plugging, coherent QPSK
Line mode	Support one 100GE service transmission, transform one 100GE service optical signal into one DWDM standard wavelength optical signal
Relay mode	Support 100G wavelength electrical relay
Support service type	• 100GE
WDM technology	Support DWDM: C band 50GHz 96 waves adjustable
FEC technology	Support SDFEC
Occupied slot number	Support OSP3800 series chassis, occupy 2 slots. (1RU)
Network management function	• Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature,error code statistics, etc. • Support port loop-back and port shutdown
Max power consumption	50W (including Module)
MTBF	＞100,000 hours
