Home >   Products >   M20D1 Card

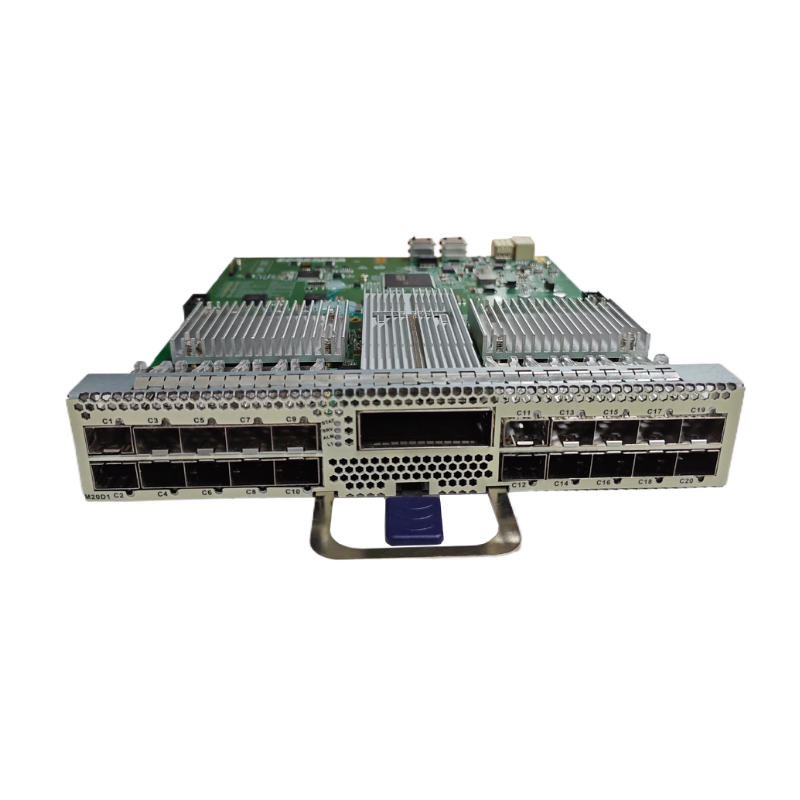

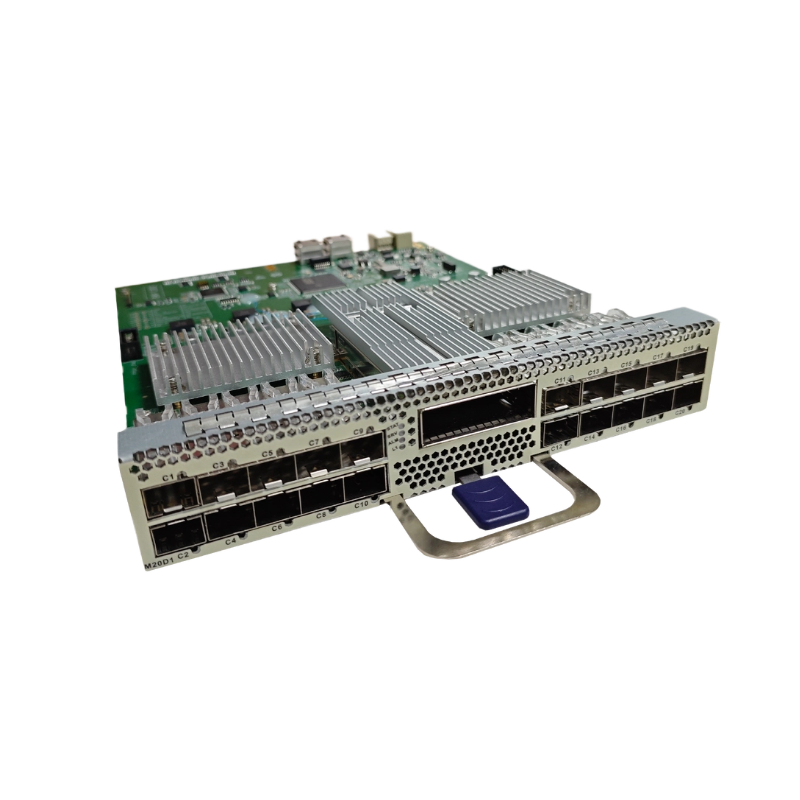

M20D1 Card

Part of the DWDM/CWDM/OTN transmission

The 200G service card supports twenty 10GE service access, adopts advanced technologies such as16QAM / QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and non-linearity.

It can realize 200GE business over 1200 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.

Get A Quote Now
Typical Applications Technical Specifications Related Euipment Related Download


Technical specifications

FunctionDescription
Occupied Sots

1/2 slots,shown in name 2/4/6/8 slot

Client-side InterfaceSupports 20 pluggable SFP+ 10G or 20 pluggable SFP GE modules
Line-side InterfaceSupports 1 pluggable 200G CFP2 DCO coherent module
Service Type10GE/GE
Service Mapping Path

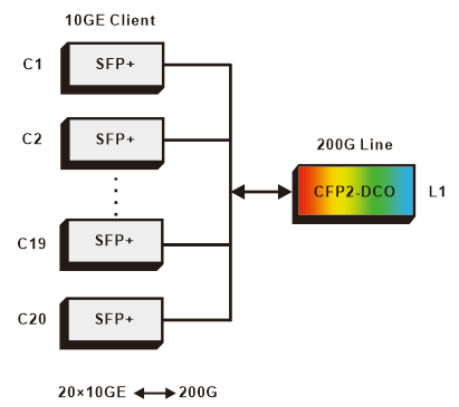

20*10G client to 1*200G line mode:

. 10G<->ODU2<->ODUC2<->OTUC2

Line-side Modulation Format

200G:16QAM / QPSK

WDM TechnologySupport DWDM: C-band 50GHz 96 waves tunable
FEC TechnologySupport oFEC
Client-side Ethernet RMON Monitoring functionSupport
Client-side Automatic Laser Shutdown (ALS)Support
Local Fault

Supports downstream insertion of Local Fault from the client side in case of Ethernet input loss or WDM side failure.

Supports transparent transmission of Local Fault and Remote Fault.

LoopSupport
Time Delay MeasurementSupport
Line-side Protection FunctionWhen switching over with the optical protection card, the switchover must be completed within 50ms.
Client-side Ethernet RMON Monitoring functionSupport
