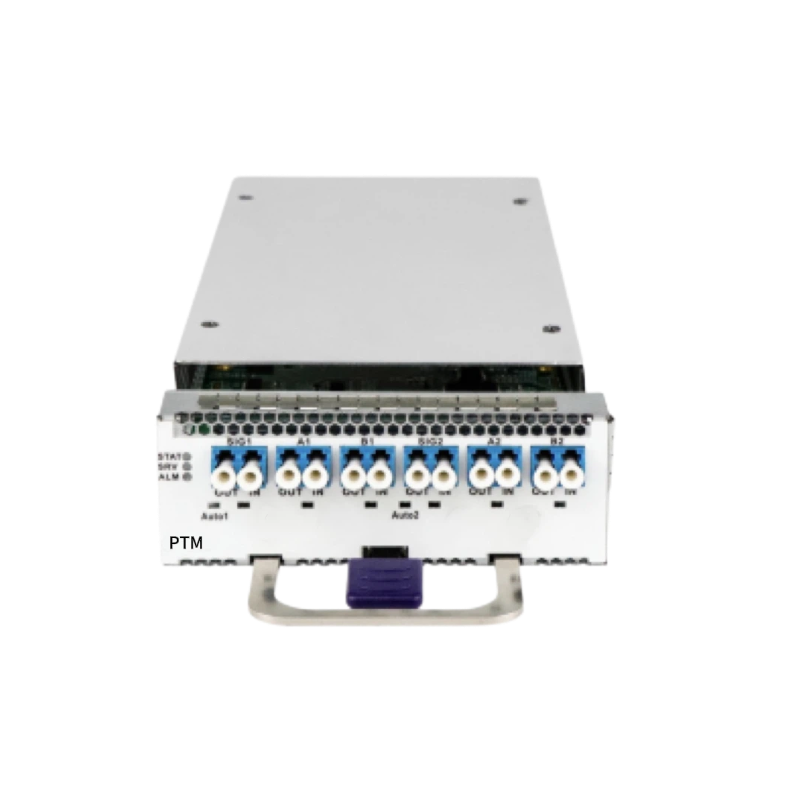

PTM Card

Part of the DWDM/CWDM/OTN transmission

The time synchronization PTM cards, including PTM-W and PTM-E cards, each card occupies only 1/4 standard slot capacity.

Get A Quote Now

Typical Applications Technical Specifications Related Euipment Related Download

Technical specifications

Project	Metric	Unit	Remarks
LINE In to C61/60 Out/In	≤1.3	dB
LINE In to SIG Out	≤1.3	dB
Insertion Loss (SIG In to LINE Out)	≤0.3	dB
Line Delay Difference (LINE In to PTPC61Out/In)	≤±1	ns
Line Delay Difference (LINE Out to PTPC60Out/In)	≤±1	ns
