Home >   Products >   OTDR Card

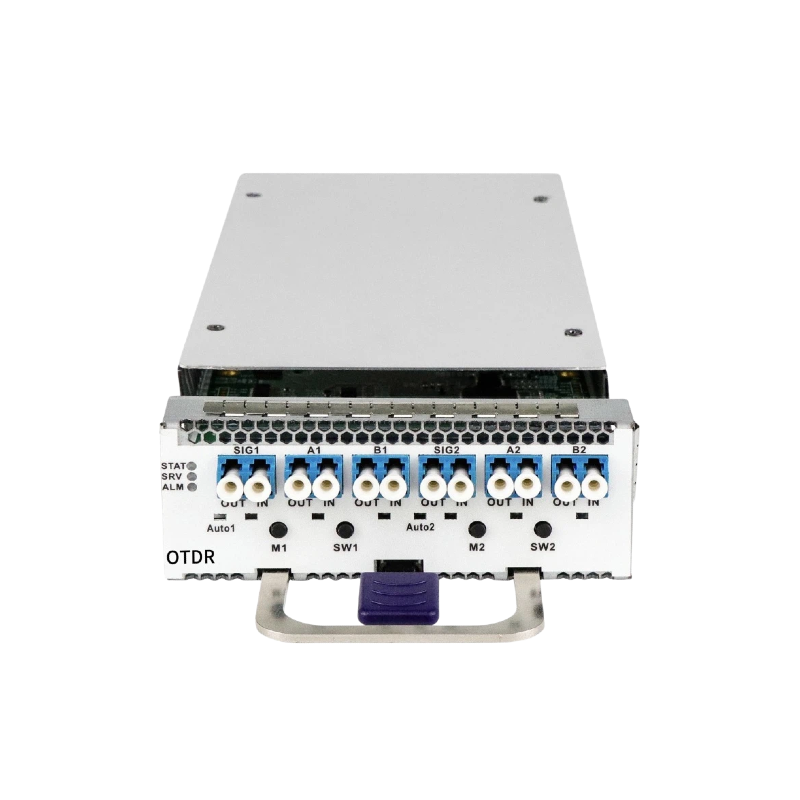

OTDR Card

Part of the DWDM/CWDM/OTN transmission

The optical cable monitoring system integrates optical cable monitoring, alarm detection, fault analysis, positioning, fault management, line maintenance, and network administration into a unified solution. This system ensures secure and efficient operation of optical fiber networks by providing 24/7 automated monitoring and automatic fiber switching protection. It promptly identifies sudden faults, significantly reduces downtime, and detects potential issues that could cause communication disruptions through early warnings, enabling proactive maintenance and preventing risks before they materialize. The card occupies only 1/4 standard slot capacity.

Get A Quote Now
Typical Applications Technical Specifications Related Euipment Related Download

Technical specifications

Performance ParameterDescriptionUnit
Operating Wavelength1501 or 1625

nm

OTDR Dynamic Range ≥30

dB

OTDR Pulse Width Range 0. 1~20us
Maximum Detection Distance ≥80km
OTDR Loss Detection Accuracy ±0.5dB
OTDR Distance Detection Accuracy＜20m
Sampling Precision Pulse Width Range0.05~8m
OTDR Event Blind Spots ＜10

m

OTDR Attenuation Blind Zone ＜20m
Degree of Linearity ±0.05

dB/dB

Maximum Output Optical Power＜17nm
Monitoring Port8
Size107(W) * 262(D) *40 (H)mm
Working Temperature-10℃～+60℃℃
Storage Temperature-40℃～+85℃℃
Related Humidity5%~95% no condensation
Power Dissipation≤15W
