Home >   Products >   OP2 Card

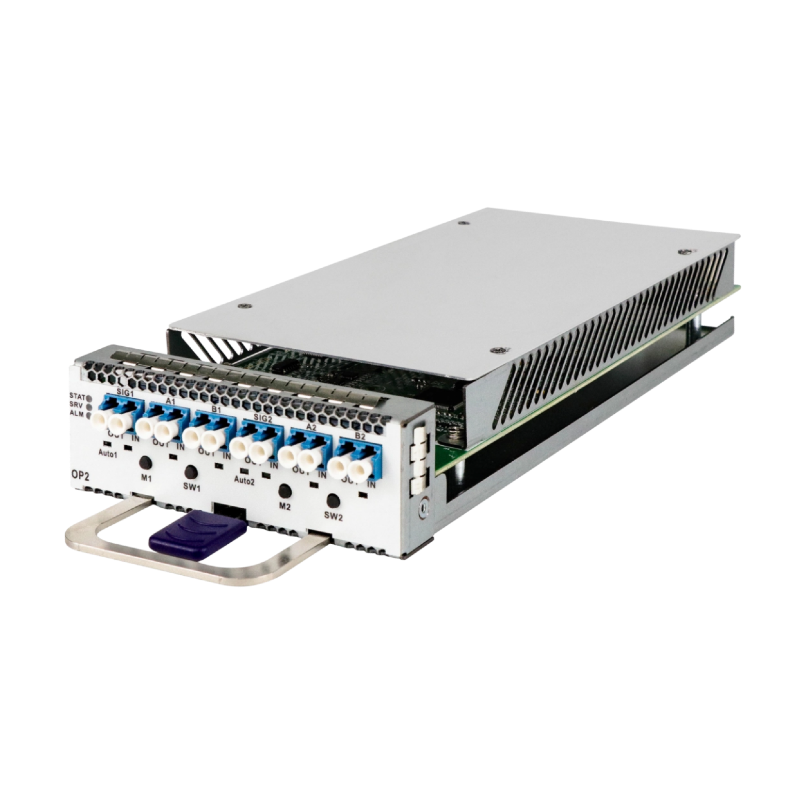

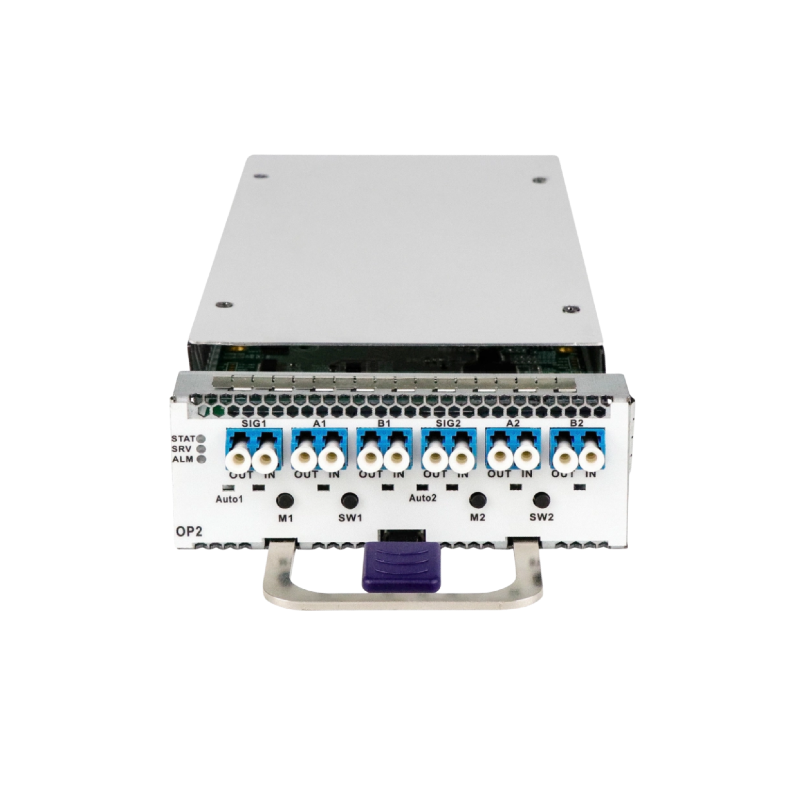

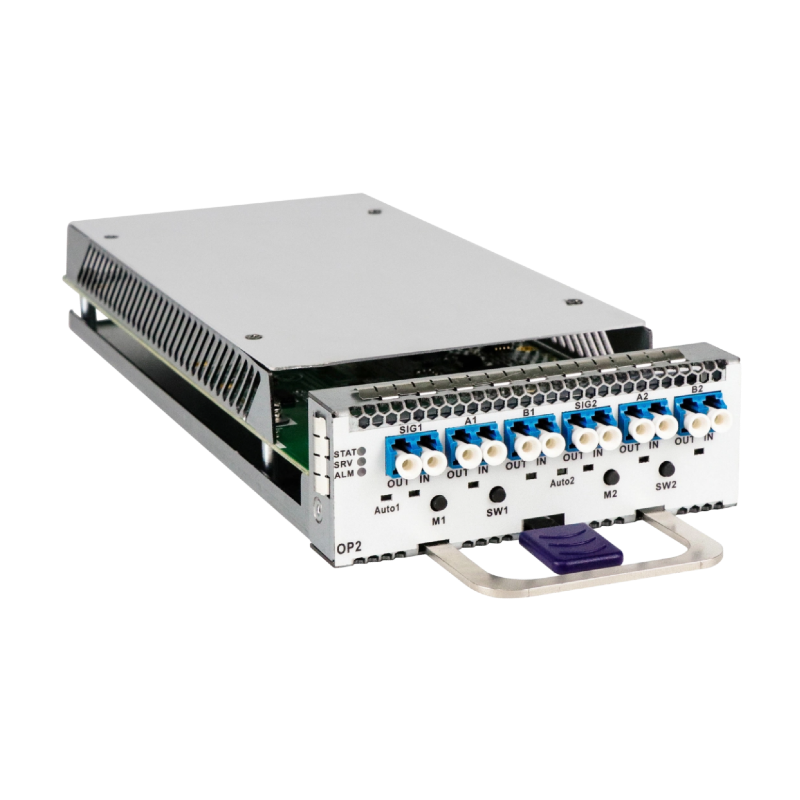

OP2 Card

Part of the DWDM/CWDM/OTN transmission

The Optical Line Protection (OLP) system is an innovative optical line protection subsystem developed using advanced dynamic synchronous optical switching technology. When unexpected fiber breakage or significant signal loss in optical transmission lines causes communication quality degradation or equipment failures, the OLP system can rapidly switch to backup lines within seconds. This ensures uninterrupted service delivery while effectively preventing fiber or equipment malfunctions, reducing recovery time from hours to milliseconds. The card occupies only 1/4 standard slot capacity.

Get A Quote Now
Typical Applications Technical Specifications Related Euipment Related Download

Technical specifications

Performance Parameter1+1
Unit
Operating Wavelength1310±50nm, 1550±50nm

nm

Range of Light Power＋23～-50

dBm

Accuracy of Light Power±0.25dB
Measure Optical Power Resolution±0.01dB
Return Loss≥55dB
Polarization-related Loss≤0.05dB
Wavelength Dependent Loss≤0.1dB
Insertion LossTx≤4dB，RX≤1.2dB

dB

Switching Speed<15ns
Size107 (W) *262 (D) * 40 (H)mm
EnvironmentWorking Temperature-10℃～+60℃℃
Storage Temperature-40℃～+85℃℃
Related Humidity5%~95% no condensation
Power Dissipation≤15W
